1 Axis Turntable

Single-Axis Motion Simulators Test Turntable for Vibration Sensor Calibration with Temperature Chamber

Name: Single-Axis Motion Simulators Test Turntable for Vibration Sensor Calibration with Temperature Chamber
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 1LT300
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	1LT300
MOQ:	1
Price:	negotiable
Payment Terms:	T/T, L/C
Supply Ability:	1/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Table Size (Customizable):

300mm

Flatness Of Table:

0.02 Mm

Rotation Accuracy:

+/-3''

Position Accuracy:

+/-3''

Computer Port:

RS232

Payload:

30kg

Location Range:

0~360°

Packaging Details:

carton with sponge

Supply Ability:

1/5 months

Highlight:

10kg Accelerometer Test Equipment

Accelerometer Test Equipment Vibration

Vibration Teat Disk Type Centrifuge

Product Description

Temperature Controlled Single-Axis Motion Simulators Test Turntable for Vibration Sensor Calibration

Product Description

Model 1LT300 single-axis multi-function turntable is a mature and finalized precision single-axis rate test equipment, which is mainly used for various position, rate and swing tests and detection of rate gyroscope and its inertial measurement unit. After the temperature control box, the temperature control system, the auxiliary shaft and other parts are selected, the turntable can also be applied to the performance test of the inertial navigation device and the inertial navigation system under the low temperature condition. The supporting computer of the turntable has the function of storing the data related to the operation of the turntable, such as the real-time value of time, turntable position, speed and temperature of the turntable body, and has the function of outputting the data in real time through the string, and can control the turntable and the temperature through the external computer (through the string).

Product Parameters

No.	Project	Indicators
1	The structure is open	Vertical or horizontal
2	Load	Not more than 30 kg
3	Table top	Not less than Ø 300mm
4	Degree of platform work	350mm
4	Flatness of platform	0.02mm
5	Table face runout	0.05mm
6	Rotation accuracy of shafting	±3″
7	Location range	±0~±360°
8	Position accuracy	± 3 ″ (optional)
9	Measure the resolution	0.0001°
10	Speed range, deg/sec	0.001 ~ ± 10000 deg/sec (optional)
11	Rate accuracy , % Rate accuracy	ω<1°/s 1×10-3 1°/s<ω<10°/s 1×10-4 10°/s<ω 5×10-5
12	Rate resolution	0.0001°/s
13	Max acceleration, deg/sec 2	10000 deg/sec2
14	Axis wobble, arcsec	It has functions
15	Slipping rings	50 pcs., 2А/150V DC
16	Communication interface	RS232,Ethernet
17	Bandwidth, Hz, not less	5 ~ 100Hz optional
18	Magnetic flux leakage	<0.5mT
19	MTBF	≥2000h

Operating conditions of turntable
1. Power supply: 220V ± 10% 50 Hz 15 A
2. Ambient temperature 10 ºC ~ 35 ºC
3. Ambient humidity 15% ~ 80% RH
4. Common vibration isolation foundation in foundation environment

Applicatin Areas

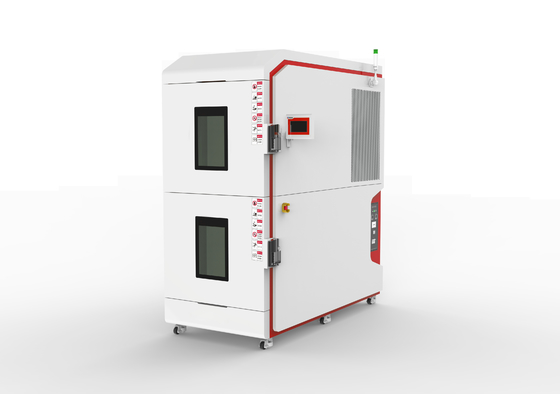

Single-Axis Motion Simulators Test Turntable for Vibration Sensor Calibration with Temperature Chamber 0

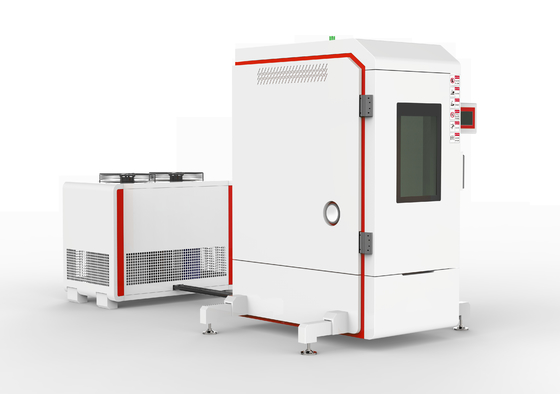

Single-Axis Motion Simulators Test Turntable for Vibration Sensor Calibration with Temperature Chamber 1

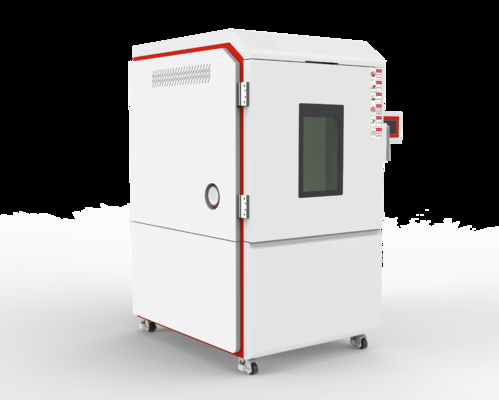

Single-Axis Motion Simulators Test Turntable for Vibration Sensor Calibration with Temperature Chamber 2
