Single Axis Temperature Chamber Turntable 50kg Payload Rate Table

Brand Name:	Firepower
Model Number:	1LT-300W
MOQ:	1
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Multi-function Turntable

Load Capacity:

50kg

Table Size:

Φ 500mm

Table Facet Flatness:

0.02 Mm

Runout Of Table End Face:

0.05mm

Magnetic Flux Leakage:

Less Than 1mT

Rotation Accuracy:

± 3 ″

System Bandwidth:

5~ 100Hz

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Temperature Chamber Turntable

Single Axis Turntable

50kg Single Axis Turntable

Product Description

Single Axis Temperature Chamber Turntable 50kg Payload Rate Table

Product Specifications

Attribute	Value
Product name	multi-function turntable
Load capacity	50kg
Table size	Φ 500mm
Table facet flatness	0.02 mm
Runout of table end face	0.05mm
Magnetic flux leakage	less than 1mT
Rotation accuracy	± 3 ″
System bandwidth	5~ 100Hz

Precise Single-Axis Multi-Function Rate Turntable For INS Gyro Test

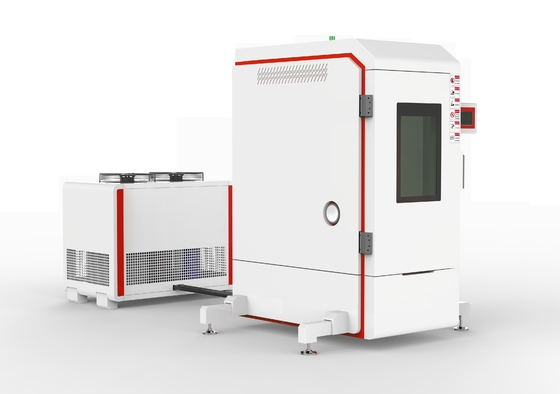

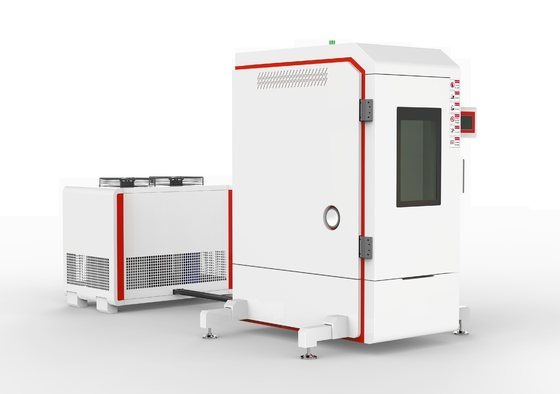

The single-axis temperature chamber turntable system consists of a horizontal rotation turntable installed within a temperature-controlled chamber. The system features:

Independent external cooling system for temperature control
Turntable mounted on vibration isolation frame
Remote operation via dedicated control console
Comprehensive control functions including position, rate, and automated status control
Integrated data acquisition, processing, and display capabilities
Speed limit settings with overspeed protection
Precision temperature control (customizable range: -70°C to +150°C)

Note: Temperature control accuracy and working range can be customized to meet specific customer requirements.

Model Variations & Specifications

Model	1LT300-W	1LT400-W	1LT500-W	1LT600-W	1LT700-W	Unit
Load Capacity	30/50	50/70	30	30/50	50/70	Kg
Table Size	Φ500	Φ700	Φ300	Φ500	Φ700	mm
Rotation Accuracy	±1~3	±1~3	±1~3	±1~3	±1~3	″
System Bandwidth	5~80Hz	5~80Hz	5~100Hz	5~100Hz	5~100Hz	Hz

About Firepower Technology

Firepower Technology (Shenzhen) Co., Ltd., established in 2013 and headquartered in Shenzhen Nanshan High-tech Park, is a national high-tech enterprise specializing in:

R&D and production of quartz accelerometers
Fiber optic gyroscopes (FOG)
Inertial Measurement Units (IMU)
Inertial Navigation Systems (INS)
Precision rate tables

The company operates multiple automated production lines across China and holds numerous patents, including 3 invention patents and 4 utility models. Firepower Technology maintains complete military qualification certifications and specializes in autonomous navigation solutions for UAVs, vehicles, and ships.

Development Policy

One Heart: Dedication to national service and technological advancement
Two Integration: Civil-military and industrial integration development
Three Leading: Innovation leadership, cultural strength, and competitive advantage
Four Autonomy: Hardware, software, design, and production independence
