220V 3KW Accelerometer Test Equipment Integrated System 20kg Load

1
MOQ
220V 3KW Accelerometer Test Equipment Integrated System 20kg Load
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Centrifuge
Accuracy: ±5*10-5
Resolution: 0.1g
Payload: 20kg
Number Of Slip Rings: 5~20
High Light:

3KW Accelerometer Test Equipment

,

220V Accelerometer Test Equipment

,

Accelerometer Test Equipment Integrated System

Basic Infomation
Place of Origin: china
Brand Name: avic
Certification: CE
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

Accelerometer integrated test system



Control system composition:

The control system consists of an integrated computer, servo controller and software system.



  Technical indicators unit
Accelerationmeasure measuring range ±0.5~ ±70 g
accuracy ±5*10-5(30g ±2*10-5)
Resolution 0.1 g
load 20 kg
installmethod rotation
disc radius ≥ 500 mm
Adjustable speedmeasuring range 20~340 rpm
Number of slip rings 5~20
dynamic Contact resistance ≤0.05 Ω
insulation strength >300

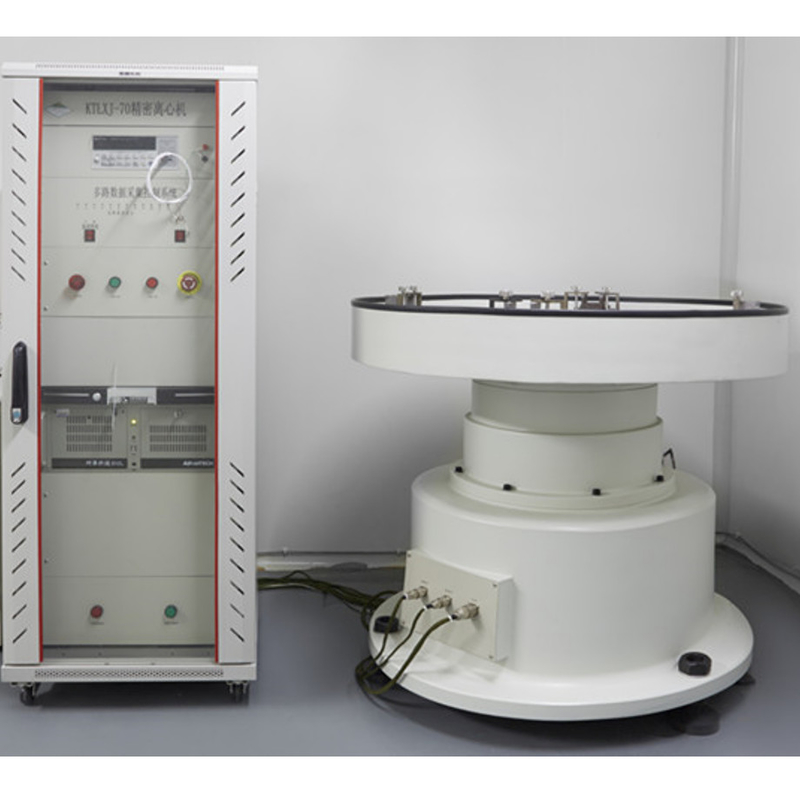

220V 3KW Accelerometer Test Equipment Integrated System 20kg Load 0

The main parameters:

Effective radius of rotation:0.48mm

Table size:Ф1200

table size:Ф1400×1200

Weight :650Kg

control cabinet:size 600(w)×800(d)×1600(h)

weight:150Kg

power:220V 3KW

load:10Kg

range :1~30g,(Can be extended to 70g)

Comprehensive accuracy:5×10-5

Before operation of Q-1 table, read the operation manual carefully, to guarantee the correction operation, safety of the products to be tested and normal operation of the table itself.
