HG4930 Inertial Measurement Unit Advanced UAV and Robotics Navigation Sensor

Brand Name:	Firepower
Model Number:	HG4930C
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Gyroscope Range:

±200°/s

Zero-bias Stability (@ Allan Variance):

0.2°/h

Zero-bias Stability (10 S Smoothing, 1σ, Room Temperature):

0.5°/h

Random Walk:

0.02°/√h

Zero-bias Repeatability:

1°/h

Bandwidth:

100Hz

Packaging Details:

carton with sponge

Supply Ability:

1000pcs

Highlight:

3KW Accelerometer Test Equipment

220V Accelerometer Test Equipment

Accelerometer Test Equipment Integrated System

Product Description

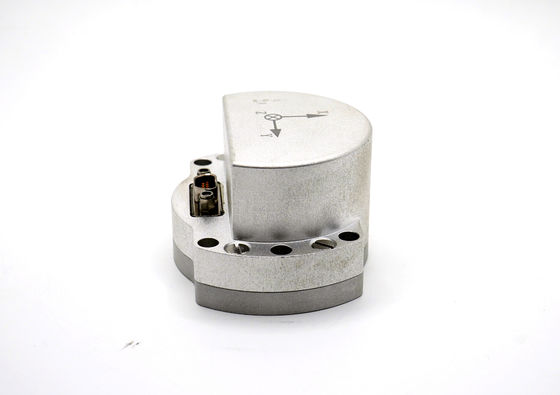

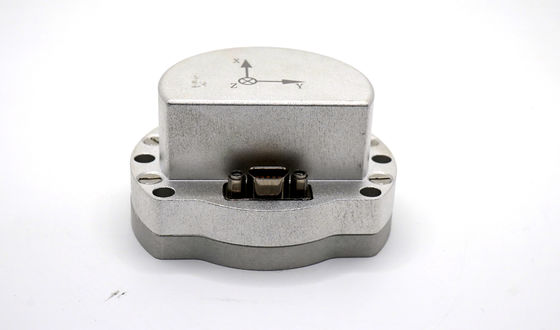

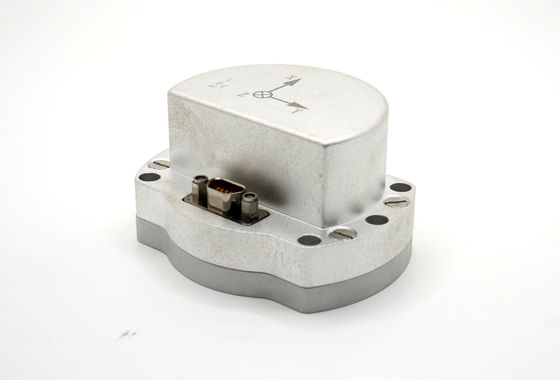

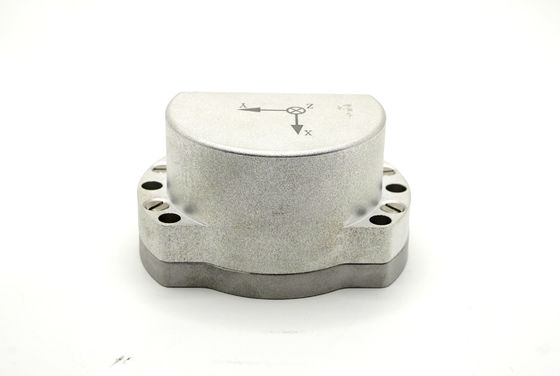

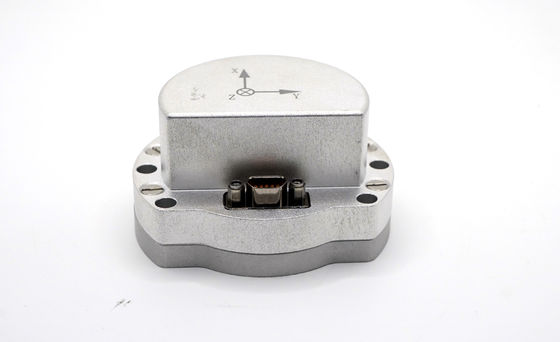

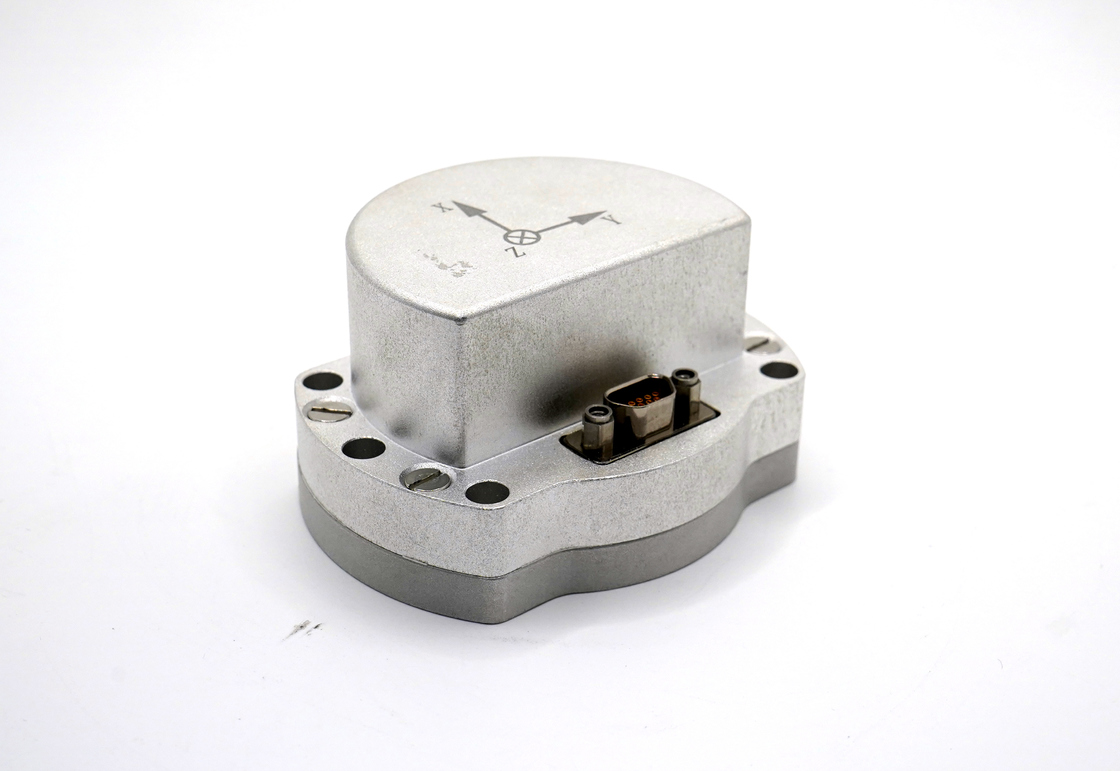

HG4930 Inertial Measurement Unit Advanced UAV and Robotics Navigation Sensor

MEMS IMU combines all essential sensors and processing electronics into a solid-state, maintenance-free unit. It captures three-axis angular rate, acceleration, and tilt, applies temperature and alignment error compensation, and delivers precise RS-422 output. Ideal for aerospace, defense, and industrial navigation systems, this unit serves as a cost-effective alternative to Honeywell HG4930, ensuring stable and accurate performance under harsh conditions.

Main Technical Parameters

Gyroscope Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Indicators

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
