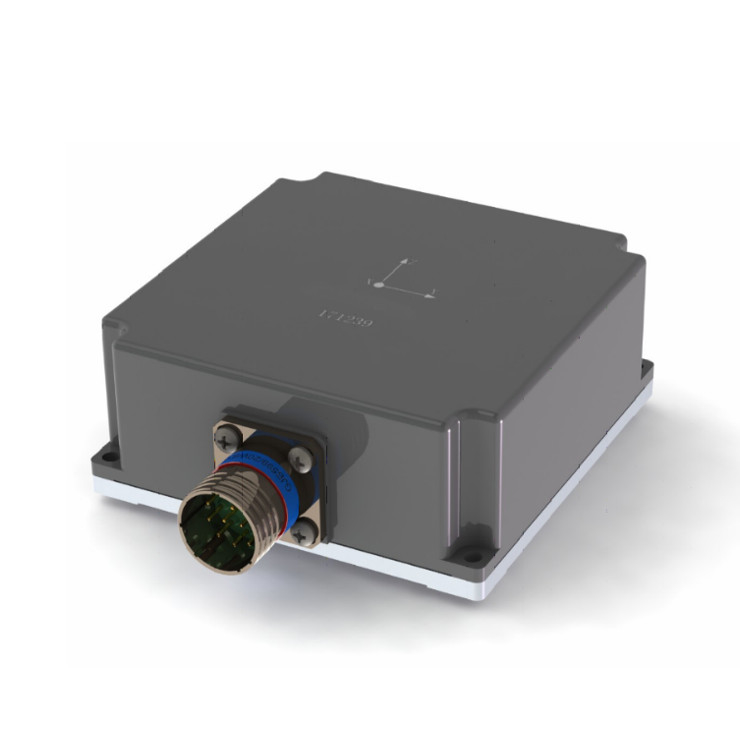

Three Axis Imu Accelerometer Gyro Fog Imu Inertial Measurement Unit

1
MOQ
Three Axis Imu Accelerometer Gyro Fog Imu Inertial Measurement Unit
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: FOG IMU 6 AXIS
Magnetometer Range: ±2.5 Gauss
Magnetometer Bias: 15 Mgauss
Barometer Pressure Range: 300~1100 Mbar
Barometer Sensitivity: 6.1 × 10-7mbar/LSB
Baudrate: 200~1000 Hz
High Light:

Three Axis IMU Accelerometer Gyro

,

IMU Accelerometer Gyro FOG

,

FOG IMU Inertial Measurement Unit

Basic Infomation
Model Number: IMU104
Payment & Shipping Terms
Packaging Details: sponge +carton
Delivery Time: 10 days for samples
Payment Terms: T/T
Supply Ability: 200/month
Product Description

FOG Inertial measure ment Unit low price IMU three axis accelerometer three axis gyro integrated sensor





Indicator name unit Parameter value
GyroParameter
Zero offset stability °/h ≤1
Zero bias °/h ≤20
measure measuring range °/s -500~+500;
Scale factor Nonlinear ppm ≤200
Scale factorAsymmetry ppm ≤200
bandwidth Hz ≥150
Acceleration Parameter
Zero offset stability mg ≥2
measure measuring range g ±10g
Nonlinear FS 0.3%
bandwidth Hz ≥100
Cross coupling   ≤1%
other Parameter
quality g ≤620
Operating temperaturemeasuring range -40~60
Storage temp measuring range -45~65
output interface   RS422
powered V ≤+28
Power consumption W ≤2
weight Kg 0.62
size mm 100*100*40



Dimension



Three Axis Imu Accelerometer Gyro Fog Imu Inertial Measurement Unit 0
