inertial vibration accelerometer sensor single axis high sensitive navigation quartz accelerometer price
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Inertial Accelerometer
Model: JB1-02
Material: Stainless Steel
Application: Measure Acceleration
Water Proof: IP67
Power Supply: ±12~±15V
Basic Infomation
Place of Origin: China
Brand Name: Firepower
Model Number: JB1-02
Payment & Shipping Terms
Packaging Details: sponge/box
Delivery Time: 1 WEEK FOR SAMPLE
Payment Terms: T/T
Supply Ability: 500/month
Product Description

inertial vibration accelerometer sensor single axis high sensitive navigation quartz accelerometer price



Characters

Low lag  High resolution  High stability  High accuracy  Low power  Excellent overload capacity

Small volume  Low cost   Broad measurement range



Usage

● Drilling

● Inclination Measurement

● Aeronautics and Astronautics

● Instruments and Equipment

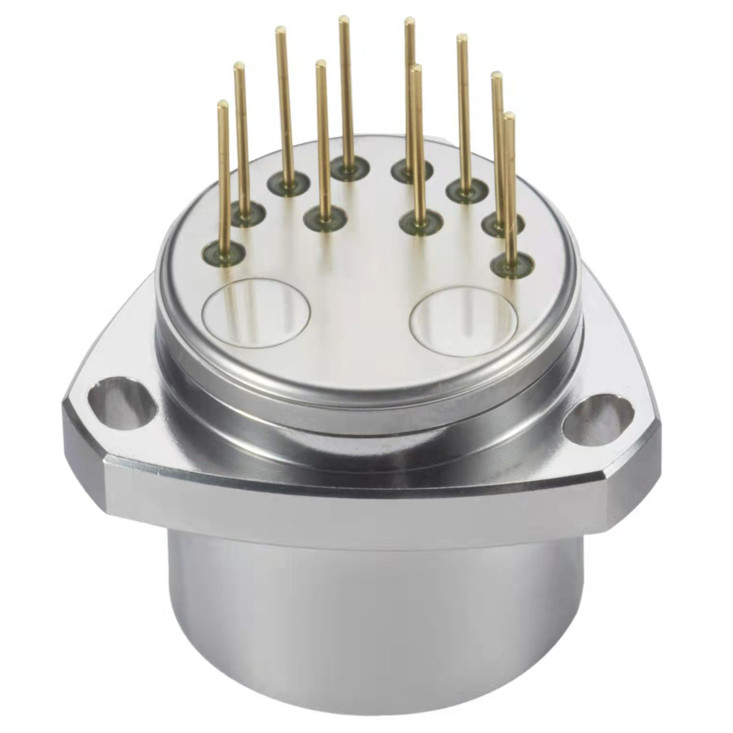

inertial vibration accelerometer sensor single axis high sensitive navigation quartz accelerometer price 0

Performance Characteristics

No. Parameters JB1-02
1 Range ±50g
2 Threshold 5μg
3 Bias K0/K1 ≤±3mg
4 Scale factor K1 1.05~1.30 mA/g
5 Second order nonlinearity coefficient K2 ≤±15μg /g2
6 0g 4 hours short-term stability ≤15 μg
7 1g 4 hours short-term stability ≤15 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤20 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤30 ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±20 μg /g2
11 Bias thermal coefficient (full temp. mean) ≤±30 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±30 ppm /℃
13 Noise (sampling resistance 840Ω) ≤8.4mv
14 Natural frequency 400~800 Hz
15 Bandwidth 800~2500 Hz
16 Random vibration 6g(20-2000Hz)
17 Impact 100g,5ms,1/2sin
18 Working temp. -55~+85℃
19 Store temp. -60~+120℃
20 Power supply ±12~±15V
21 Consume current ≤±20mA
22 Thermal sensor Customizable
23 Size Ф25.4X30mm
24 Weight ≤80g
