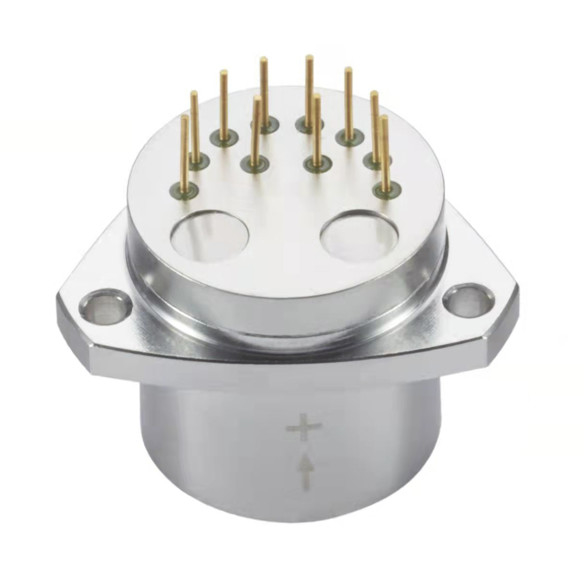

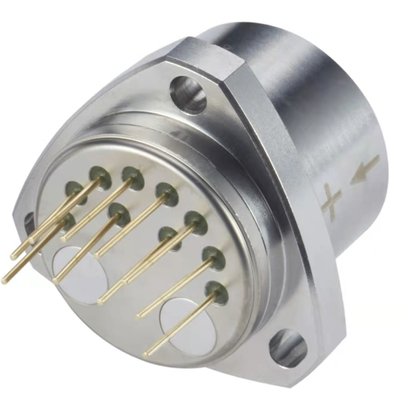

big measure range quartz accelerometer high reliable flexure accelerometer
A quartz accelerometer is a force equilibrium sensor,a precise instrument designed according to the principle of ineria.The acceleration input is converted to its fracture's subtle displacement,and then balanced by a feedback force.As a force feedback loop is used,the accelerometer has the features of high precision,high shock resistance,broad measurement range and excellent overload capacity.It is one of the most essential devices in the inertial navigation and guidance system.A quartz accelerometer consists of a gauge head.an excitation circuit and a frequency measurement circuit.The gauge head consists of a dampling plate,a metal pendulum and a force sensitive quartz stick.
Applications
Drilling and Inclination Measurement / Aeronautics and Astronautics / Instruments and Equipment
Features
Low lag / High resolution / High stability / Low cost / High accuracy / Low power / Excellent overload capacity
Small volume
Products:
Performance Characteristics
| No. | Parameters | JB2-02 |
| 1 | Range | ±70g |
| 2 | Threshold | 5μg |
| 3 | Bias K0/K1 | ≤±3 mg |
| 4 | Scale factor K1 | 0.8~1.5 mA/g |
| 5 | Second order nonlinearity coefficient K2 | ≤±15μg /g2 |
| 6 | 0g 4 hours short-term stability | ≤15 μg |
| 7 | 1g 4 hours short-term stability | ≤15 ppm |
| 8 | Bias comprehensive repeatability σK0 (1σ,1 month) | ≤20 μg |
| 9 | Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) | ≤30 ppm |
| 10 | Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) | ≤±20 μg /g2 |
| 11 | Bias thermal coefficient (full temp. mean) | ≤±30 μg /℃ |
| 12 | Scale factor thermal coefficient (full temp. mean) | ≤±30 ppm /℃ |
| 13 | Noise (sampling resistance 840Ω) | ≤5mv |
| 14 | Natural frequency | 400~800 Hz |
| 15 | Bandwidth | 800~2500 Hz |
| 16 | Random vibration | 6g(20-2000Hz) |
| 17 | Impact | 100g,5ms,1/2sin |
| 18 | Working temp. | -55～+85℃ |
| 19 | Store temp. | -60~+120℃ |
| 20 | Power supply | ±12~±15V |
| 21 | Consume current | ≤±20mA |
| 22 | Thermal sensor | Customizable |
| 23 | Size | Ф25.4X30mm |
| 24 | Weight | ≤80g |
FAQ
1. How can I place an order?
Please provide the details of the technical requirements as clear as possible, then we can send you the suitable offer at the first time.
2. What kind of products we provide?
Inertial sensor, navigation sensor, accelerometer, gyro, IMU, INS, test equipment and so on.
3. How about the warranty ?
We have 1 years warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
