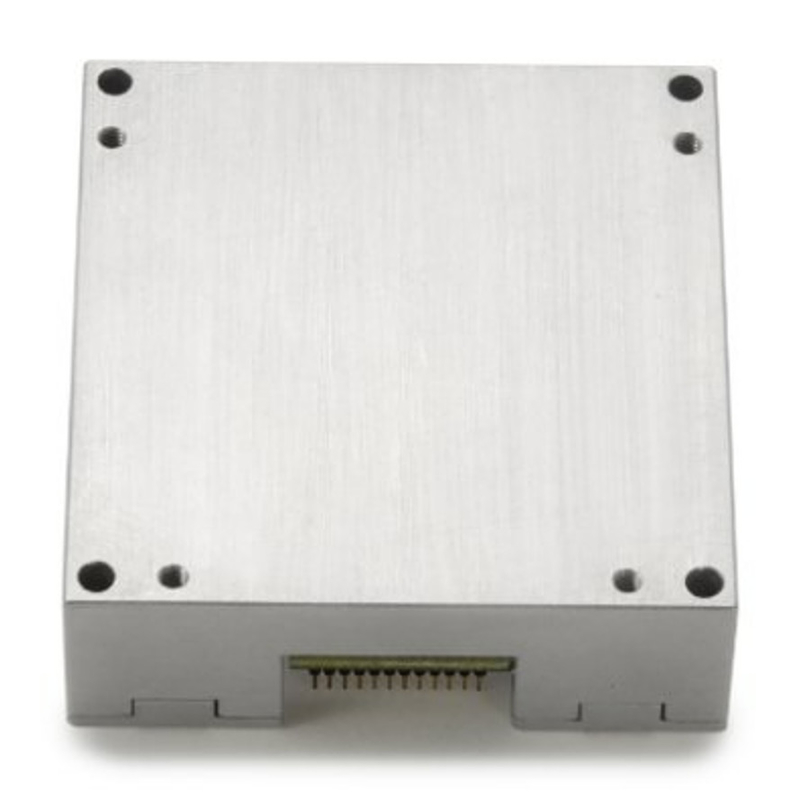

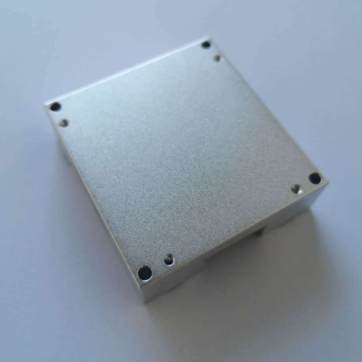

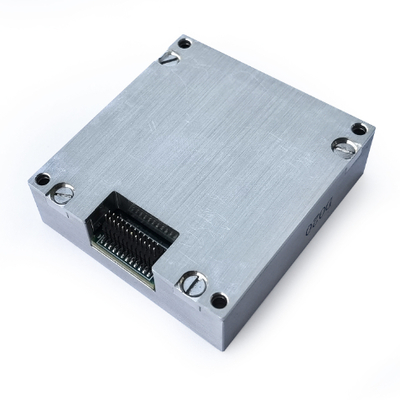

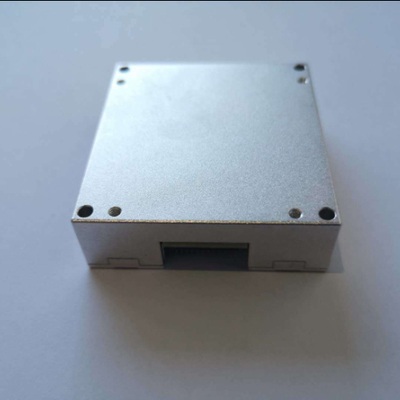

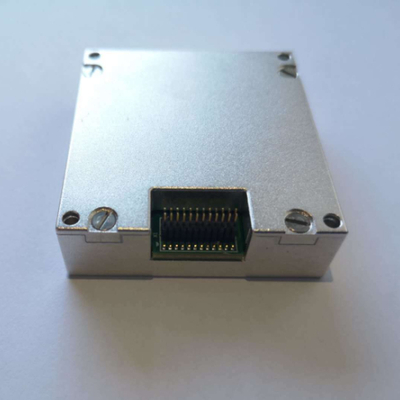

Adis16488 Imu Accelerometer Gyro Good Performance Mems Imu Sensor

Name: Adis16488 Imu Accelerometer Gyro Good Performance Mems Imu Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488-C
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488-C
MOQ:	1
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Product Name:

IMU Sensor With Gyro And Acceleroemter

Dynamic Measuring Range:

±500deg/s

Bias Stability:

<10deg/h

Random Walk:

<0.15 º/√h

Scale Factor Is Nonlinear:

<500 Ppm

Bias Repeatability:

<10º/h

Accelerometer Bias:

1mg

Accelerometer Bias Stability:

0.1mg

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

ADIS16488 IMU Accelerometer Gyro

IMU Accelerometer Gyro High Performance

High Performance MEMS IMU sensor

Product Description

MEMS IMU SENSOR 16488 ALTERNATIVE IMU

16488-C is a domestic MEMS IMU used to replace ADIS16488. The product precision is better than ADIS16488. The version is optional, the size and appearance are exactly the same, and the communication protocol is the same.The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.

Parameter		Conditions	16488-C	ADIS16488	unit
Gyro	Dynamic measuring range	configurable	±450	±480	º/s
	Bias instability	Allan	3.5	5.1	º/h
	bias stability	1s,rms	30	/	º/h
	bias in full temperature range	-40℃~85℃,10s,rms	0.02	/	º/s
	Random walk	1б	0.25	0.26	º/√h
	bias repeatability	1б	35	/	º/h
	output noise	No filtering,rms	0.09	0.135	º/s
	Scale factor repeatability	1б	0.02	1.0	%
	Scale factor Temperature coefficient	-40℃~85℃, 1б	5	±35	ppm/°C
	The scale factor is nonlinear	FS=450º/s	0.008	0.01	%FS
	bandwidth(-3dB)		330	330	Hz
Accelerometer	Dynamic measuring range	Configurable (Max ±40)	±20	±18	g
	bias stability	Allan error	0.005	/	mg
	bias in full temperature range	-40℃~85℃,10s,rms	0.5	16	mg
	Random walk	1б	0.01	0.029	m/s/√h
	Bias instability	1б	0.16	/	mg
	output noise	No filterin,rms	1	/	mg
	Scale factor repeatability	1б	0.01	0.5	%
	scale factor is nonlinear	FS=10g	0.002	0.1	%FS
	bandwidth(-3dB)		330	330	Hz
	Cross coupling		0.18	/	%
Magnetometer	Dynamic measuring range		±2.5	±2.5	gauss
	The sensitivity		0.1	0.1	mgauss/LSB
	nonlinearity		0.5	0.5	%FS
Barometer	Pressure range		1100	1100	mbar
	sensitivity		6.1 × 10-7	6.1 × 10-7	mbar/LSB
	Total error		4.5	4.5	mbar
	The relative error		2.5	2.5	mbar
	nonlinearity		0.1	0.1	%FS
Communication interface	1 way SPI	Input clock frequency	15	15	MHz
	1 way UART	Baudrate	230.4	/	kbps
	1 way CAN			/	kbps
Electrical characteristics	voltage	dc	3.3(or5)±10%		V
	Power consumption		0.6	1	W
	ripple wave	P-P		100	mV
Environment	working temp.	extensible		85	℃
	Store temp			85	℃
	vibration		10~2000Hz,6.06g
	impact		5000g,0.1ms

Adis16488 Imu Accelerometer Gyro Good Performance Mems Imu Sensor 0
