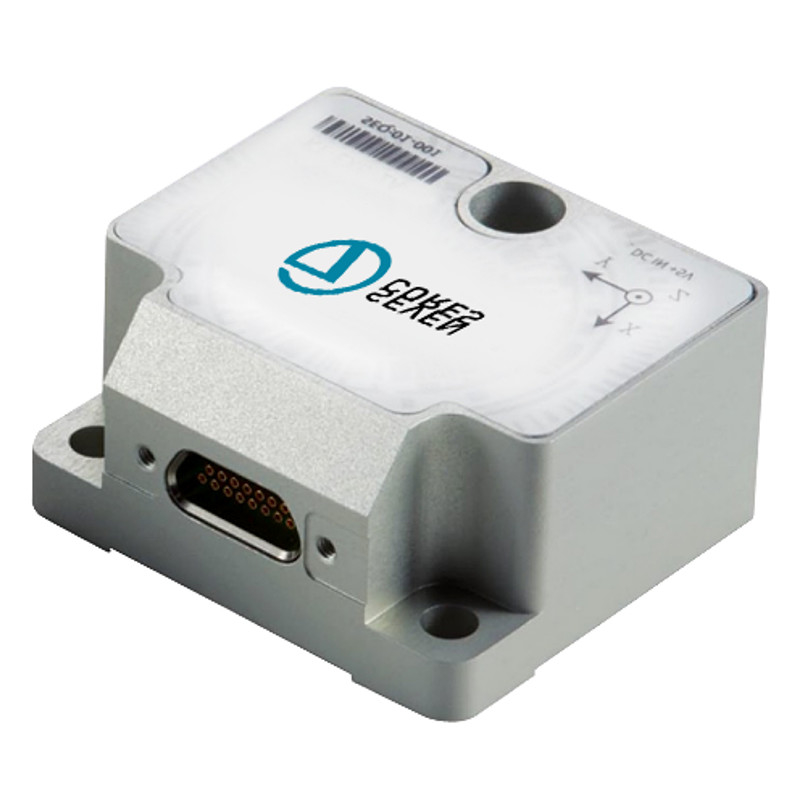

300 C IMU Accelerometer Gyro High Performance MEMS IMU Replace STIM300

Name: 300 C IMU Accelerometer Gyro High Performance MEMS IMU Replace STIM300
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 300-C
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	300-C
MOQ:	1
Payment Terms:	T/T
Supply Ability:	500/montj

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Product Name:

Low Drift IMU

Accelerometer Scale Factor:

<300ppm

Accelerometer Resolution:

24 Bits

Accelerometer Range:

±10 G

Gyro Bias Stability:

<5°/h

Gyro Scale Factor:

<300ppm

Gyro Resolution:

24 Bits

Packaging Details:

sponge+box

Supply Ability:

500/montj

Highlight:

300 C IMU Accelerometer Gyro

STIM300 IMU Accelerometer Gyro

High Performance MEMS IMU STIM300

Product Description

high performance MEMS IMU used to replace STIM300

300-C is a domestic MEMS IMU used to replace STIM300. After rigorous testing, the performance is completely replaceable,The version is optional, the size and appearance are exactly the same, and the communication protocol is the same.The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.

	Parameters	Index	X	Y	Z	unit
Gyro	Measuring range	±400	±500	±500	±500	°/s
	Resolution	24	24	24	24	bits
	Linearity of scale factor	<300	243	186	150	PPM
	Scale factor repeatability	<100	42	27	29	PPM
	bandwidth	250	250	250	250	Hz
	Bias stability(1σ)	<5	2.7	2.5	3.4	°/h
	Bias repeatability(1σ)	<5	0.94	1.1	0.88	°/h
	Bias in full temperature	<30	16.1	6.5	11.9	°/h
	Noise(RMS)	<0.15	0.084	0.073	0.083	°/s
	Resolution	<1	0.3	0.32	0.25	°/h
	Cross coupling	<0.1%	0.04%
