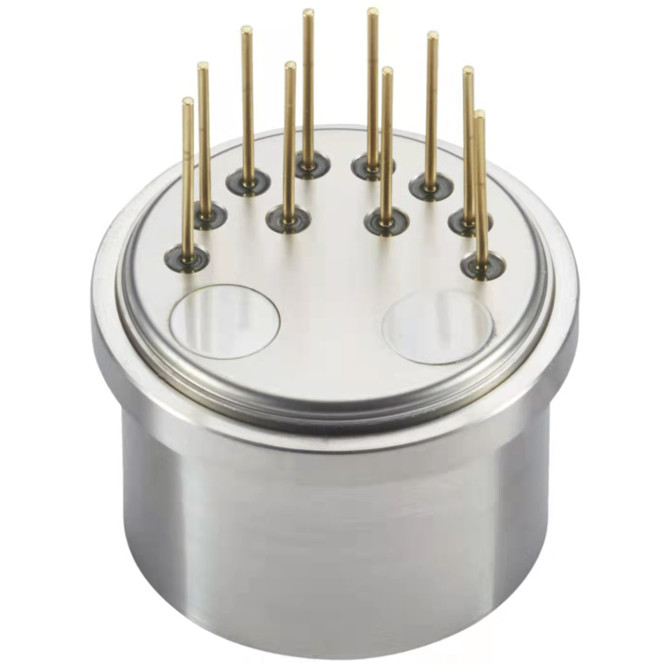

IMU accelerometer single axis interial accelerometer for flight

1
MOQ
1190
Price
IMU accelerometer single axis interial accelerometer for flight
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Sensitive Accelerometer
Shell: Stainless Steel
Range: 50g
Bias K0/K1: ≤±3mg1
Scale Factor K1: 1.05~1.30 Ma/g
Random Vibration: 6g(20-2000Hz)
Basic Infomation
Place of Origin: China
Model Number: JB1-02
Payment & Shipping Terms
Packaging Details: sponge/box
Delivery Time: 1 week for sample order
Payment Terms: T/T
Supply Ability: 500/month
Product Description

IMU accelerometer single axis interial accelerometer for flight



Size:

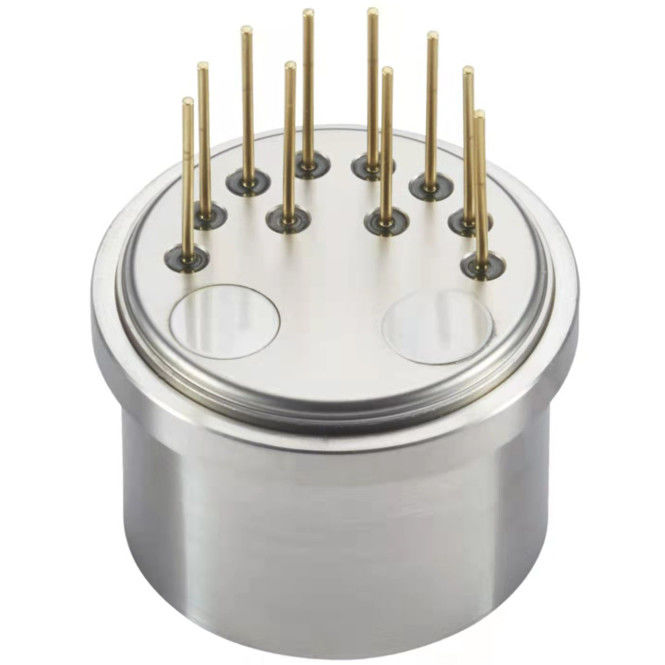

IMU accelerometer single axis interial accelerometer for flight 0

Performance Characteristics



No. Parameters JB1-01
1 Range ±50g
2 Threshold 5μg
3 Bias K0/K1 ≤±3mg1
4 Scale factor K1 1.05~1.30 Ma/g
5 Second order nonlinearity coefficient K2 ≤±10μg /g2
6 0g 4 hours short-term stability ≤10 μg
7 1g 4 hours short-term stability ≤10 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤10 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤15ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±10 μg /g2
11 Bias thermal coefficient (full temp. mean) ≤±10 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±10 ppm /℃
13 Noise (sampling resistance 840Ω) ≤5mv
14 Natural frequency 400~800 Hz
15 Bandwidth 800~2500 Hz
16 Random vibration 6g(20-2000Hz)
17 Impact 100g,5ms,1/2sin
18 Working temp. -55~+85℃
19 Store temp. -60~+120℃
20 Power supply ±12~±15V
21 Consume current ≤±20mA
22 Thermal sensor Customizable
23 Size Ф25.4X30mm
24 Weight ≤80g





Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4. One-year warranty to our product and negotiable for some cases.
  5. For installation or testing, we could provide on-line instruction and training the whole life.

Characters

Low lag

High resolution

High stability

High accuracy

Low power

Excellent overload capacity

Small volume

Low cost

Broad measurement range



Applications

Drilling and Inclination Measurement

Aeronautics and Astronautics

Instruments and Equipment
