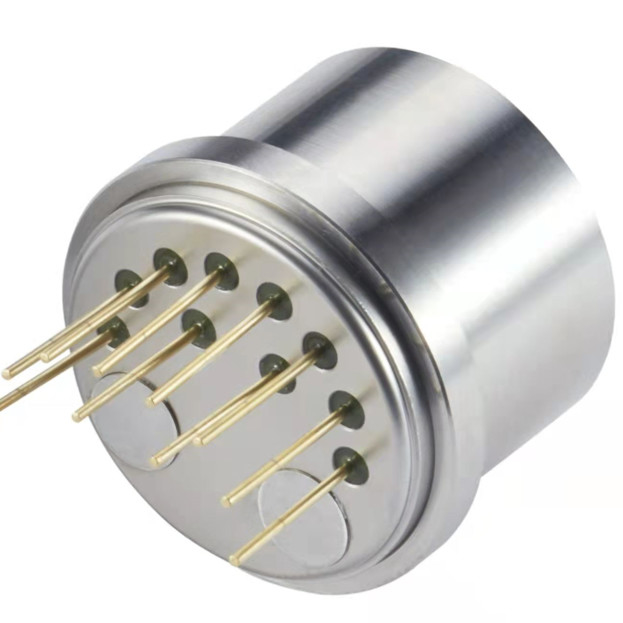

Dynamic Quartz Flexure Accelerometer High Accuracy 60g Range

1
MOQ
1260
Price
Dynamic Quartz Flexure Accelerometer High Accuracy 60g Range
Features Gallery Product Description Request A Quote
Features
Specifications
Production Name: Inertial Accelerometer
Range: 60g
Weight: <30g
Size: Ф25.4X30mm
Noise: ≤5mv
Natual Frequency: 350~800 Hz
Scale Factor K1: 1.0±0.2 MA/g
High Light:

Quartz Flexure Accelerometer High Accuracy

,

Dynamic Quartz Flexure Accelerometer

,

Quartz Flexure Accelerometer 60g Range

Basic Infomation
Place of Origin: China
Model Number: JB3-01
Payment & Shipping Terms
Packaging Details: sponge/box
Delivery Time: 1 week for sample
Payment Terms: T/T
Supply Ability: 500/month
Product Description

dynamic quartz accelerometer aviation accelerometer​



Applications

Drilling and Inclination Measurement,

Aeronautics and Astronautics,

Instruments and Equipment



Features

Low lag

High resolution

High stability

High accuracy

Low power

Excellent overload capacity

Small volume

Low cost

Broad measurement range



Performance Characteristics



No. Parameters JB3-01
1 Range ±60g
2 Threshold 5μg
3 Bias K0/K1 ≤±5 mg
4 Scale factor K1 1.0±0.2 mA/g
5 Second order nonlinearity coefficient K2 ≤±20μg /g2
6 0g 4 hours short-term stability ≤10 μg
7 1g 4 hours short-term stability ≤10 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤15 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤15 ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±20 μg /g2
11 Bias thermal coefficient (full temp. mean) ≤±15 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±15 ppm /℃
13 Noise (sampling resistance 840Ω) ≤5mv
14 Natural frequency 350~800 Hz
15 Bandwidth 800~2500 Hz
16 Random vibration 10g(20-2000Hz)
17 Impact 150g,5ms,1/2sin
18 Working temp. -55~+85℃
19 Store temp. -60~+120℃
20 Power supply ±12~±15V
21 Consume current ≤±20mA
22 Thermal sensor
Ф25.4X30mm
Customizable
23 Size
24 Weight ≤30g







Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4. One-year warranty to our product and negotiable for some cases.
  5. For installation or testing, we could provide on-line instruction and training the whole life.
