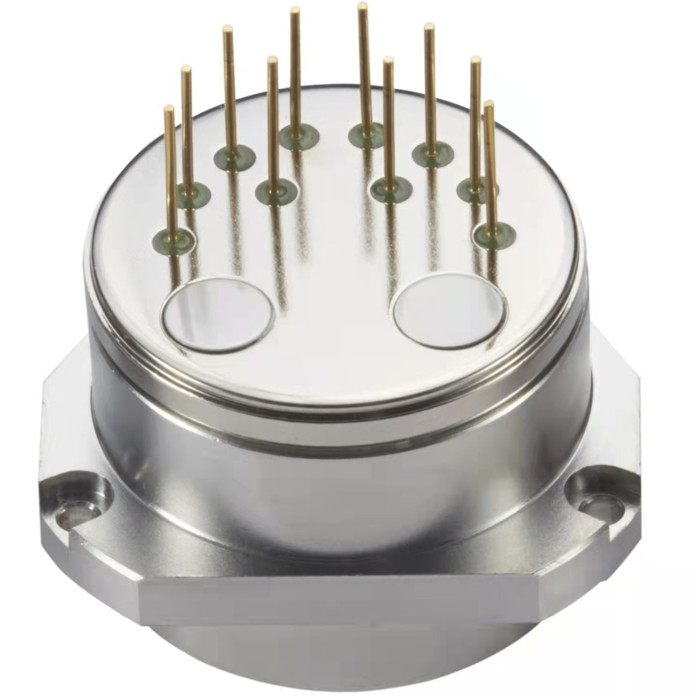

70g Quartz Accelerometer 3 Months Stablity 350-800 Hz Natural Frequency

1
MOQ
1030
Price
70g Quartz Accelerometer 3 Months Stablity 350-800 Hz Natural Frequency
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Quartz Accelerometer
Material: Stainless Steel
Measure Range: 60g
Scale Factor: 0.4mA/g
Bias: <5mg
Noise: ≤8.4mv
Weight: <30g
High Light:

70g Quartz Accelerometer

,

Quartz Accelerometer 3 Months Stablity

,

Quartz Accelerometer 800 Hz

Basic Infomation
Place of Origin: China
Model Number: JB3-A
Payment & Shipping Terms
Packaging Details: sponge/box
Payment Terms: T/T
Supply Ability: 500/month
Product Description

JB3 quartz flexible accelerometer single axis anal...

70g 3 months stablity accelerometer quartz vibration sensor





Specification table



No. Parameters JB3-03
1 Range ±60g
2 Threshold 5μg
3 Bias K0/K1 ≤±5 mg
4 Scale factor K1 0.6±0.2 mA/g
5 Second order nonlinearity coefficient K2 ≤±20μg /g2
6 0g 4 hours short-term stability ≤20 μg
7 1g 4 hours short-term stability ≤20 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤50 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤50 ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±30 μg /g2
11 Bias thermal coefficient (full temp. mean) ≤±50 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±50 ppm /℃
13 Noise (sampling resistance 840Ω) ≤8.4mv
14 Natural frequency 350~800 Hz
15 Bandwidth 800~2500 Hz
16 Random vibration 10g(20-2000Hz)
17 Impact 150g,5ms,1/2sin
18 Working temp. -55~+85℃
19 Store temp. -60~+120℃
20 Power supply ±12~±15V
21 Consume current ≤±20mA
22 Thermal sensor Customizable
23 Size Ф18.2X23mm
24 Weight ≤30g



Dimensions

70g Quartz Accelerometer 3 Months Stablity 350-800 Hz Natural Frequency 0

70g Quartz Accelerometer 3 Months Stablity 350-800 Hz Natural Frequency 1

Introduction

JB3 series quartz flexible accelerometer is a miniaturized, high-precision, large-range military inertial navigation grade accelerometer product with excellent long-term stability, repeatability, startup performance, environmental adaptability and high reliability. It can be used for both static and dynamic testing and is also a standard vibration sensor.

The product adopts a unique miniaturized design and packaging process, and the output current has a linear relationship with the force or acceleration received. Users can select an appropriate sampling resistor through calculation to achieve high-precision output. A temperature sensor can be built-in according to user needs, which can be used to compensate the offset value and scale factor to reduce the influence of ambient temperature.

Application areas: inertial measurement of military inertial navigation systems in aerospace, aviation, ships, weapons and other fields and vibration isolation testing of precision instruments and equipment.



Applications

Drilling and Inclination Measurement

Aeronautics and Astronautics

Instruments and Equipment



FAQ
1. How can I place an order?
Please provide the details of the technical requirements as clear as possible, then we can send you the suitable offer at the first time.
2. What kind of products we provide?
Inertial sensor, navigation sensor, accelerometer, gyro, IMU, INS, test equipment and so on.
3. How about the warranty ?
We have 1 years warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
