JB2 inertial accelerometer quartz vibration sensor...
Dynamic vibration meter preceise vibration navigation meter inertial vibration sensor
Applications
Drilling and Inclination Measurement
Aeronautics and Astronautics
Instruments and Equipment
JB2 series quartz flexible accelerometer is a high-precision, large-range (up to 100g) military inertial navigation grade accelerometer product with excellent long-term stability, repeatability, startup performance, environmental adaptability and high reliability. It can be used for static testing as well as dynamic testing, and it is also a standard vibration sensor.
The output current of the product has a linear relationship with the force or acceleration received, and the user can select an appropriate sampling resistor through calculation to achieve high-precision output. A temperature sensor can be built-in according to user needs, which can be used to compensate the offset value and scale factor to reduce the influence of ambient temperature.
Application fields: inertial measurement of military high-precision inertial navigation systems in aerospace, aviation, ships, weapons and other fields and vibration isolation testing of precision instruments and equipment.
Features
● Low cost
● Broad measurement range
● Low lag
● High resolution
● High stability
● High accuracy
● Low power
Performance Characteristics
| No. | Parameters | JB2-03 |
| 1 | Range | ±70g |
| 2 | Threshold | 5μg |
| 3 | Bias K0/K1 | ≤±5 mg |
| 4 | Scale factor K1 | 0.8~1.5 mA/g |
| 5 | Second order nonlinearity coefficient K2 | ≤±20μg /g2 |
| 6 | 0g 4 hours short-term stability | ≤20 μg |
| 7 | 1g 4 hours short-term stability | ≤20 ppm |
| 8 | Bias comprehensive repeatability σK0 (1σ,1 month) | ≤30 μg |
| 9 | Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) | ≤50 ppm |
| 10 | Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) | ≤±30 μg /g2 |
| 11 | Bias thermal coefficient (full temp. mean) | ≤±50 μg /℃ |
| 12 | Scale factor thermal coefficient (full temp. mean) | ≤±50 ppm /℃ |
| 13 | Noise (sampling resistance 840Ω) | ≤5mv |
| 14 | Natural frequency | 400~800 Hz |
| 15 | Bandwidth | 800~2500 Hz |
| 16 | Random vibration | 6g(20-2000Hz) |
| 17 | Impact | 100g,5ms,1/2sin |
| 18 | Working temp. | -55～+85℃ |
| 19 | Store temp. | 60~+120℃ |
| 20 | Power supply | ±12~±15V |
| 21 | Consume current | ≤±20mA |
| 22 | Thermal sensor | Customizable |
| 23 | Size | Ф25.4X30mm |
| 24 | Weight | ≤80g |

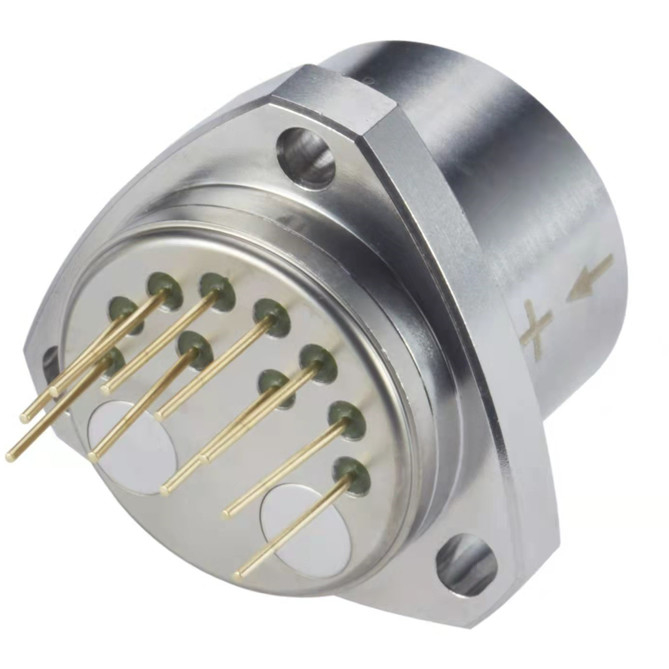

Product show
Dimensions
Quality assurance
FAQ
1. How can I place an order?
Please provide the details of the technical requirements as clear as possible, then we can send you the suitable offer at the first time.
2. What kind of products we provide?
Inertial sensor, navigation sensor, accelerometer, gyro, IMU, INS, test equipment and so on.
3. How about the warranty ?
We have 1 years warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
