JB2 inertial accelerometer quartz vibration sensor...
linear output accelerometer analog output vibration transducer navigation inertial acceleration meter
Applications
Drilling and Inclination Measurement
Aeronautics and Astronautics
Instruments and Equipment
Features
Low cost
Broad measurement range
Low lag
High resolution
High stability
High accuracy
Low power
JB2 series quartz flexible accelerometer is a high-precision, large-range (up to 100g) military inertial navigation grade accelerometer product with excellent long-term stability, repeatability, startup performance, environmental adaptability and high reliability. It can be used for static testing as well as dynamic testing, and it is also a standard vibration sensor.
The output current of the product has a linear relationship with the force or acceleration received, and the user can select an appropriate sampling resistor through calculation to achieve high-precision output. A temperature sensor can be built-in according to user needs, which can be used to compensate the offset value and scale factor to reduce the influence of ambient temperature.
Application fields: inertial measurement of military high-precision inertial navigation systems in aerospace, aviation, ships, weapons and other fields and vibration isolation testing of precision instruments and equipment.
Performance Characteristics
No. | Parameters | JB2-03 |
1 | Range | ±70g |
2 | Threshold | 5μg |
3 | Bias K0/K1 | ≤±5 mg |
4 | Scale factor K1 | 0.8~1.5 mA/g |
5 | Second order nonlinearity coefficient K2 | ≤±20μg /g2 |
6 | 0g 4 hours short-term stability | ≤20 μg |
7 | 1g 4 hours short-term stability | ≤20 ppm |
8 | Bias comprehensive repeatability σK0 (1σ,1 month) | ≤30 μg |
9 | Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) | ≤50 ppm |
10 | Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) | ≤±30 μg /g2 |
11 | Bias thermal coefficient (full temp. mean) | ≤±50 μg /℃ |
12 | Scale factor thermal coefficient (full temp. mean) | ≤±50 ppm /℃ |
13 | Noise (sampling resistance 840Ω) | ≤5mv |
14 | Natural frequency | 400~800 Hz |
15 | Bandwidth | 800~2500 Hz |
16 | Random vibration | 6g(20-2000Hz) |
17 | Impact | 100g,5ms,1/2sin |
18 | Working temp. | -55~+85℃ |
19 | Store temp. | 60~+120℃ |
20 | Power supply | ±12~±15V |
21 | Consume current | ≤±20mA |
22 | Thermal sensor | Customizable |
23 | Size | Ф25.4X30mm |
24 | Weight | ≤80g |

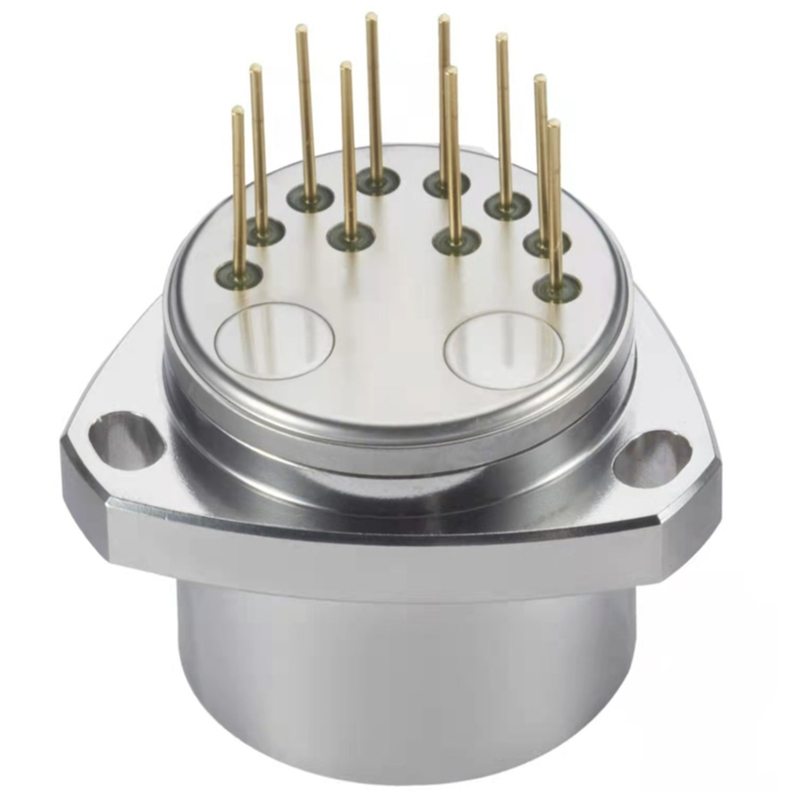

Product show
