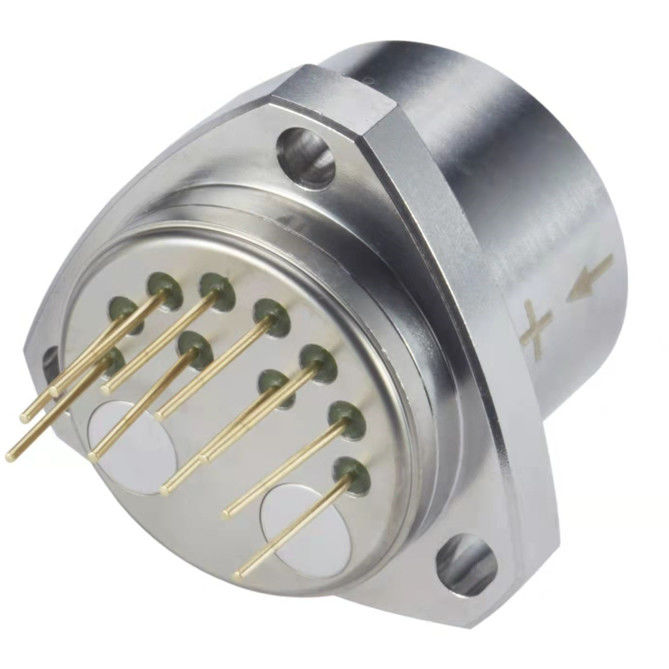

High Resolution Quartz Flexure Accelerometer With Temp Sensor

1
MOQ
negotiable
Price
High Resolution Quartz Flexure Accelerometer With Temp Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Product: Temp Compensated Accelerometer
Range: 50g
Scale Factor: 1.05~1.30 MA/g
Bias Temp Coefficient: ≤±10 μg /℃
Noise: ≤5mv
High Light:

High Resolution Quartz Flexure Accelerometer

,

Temp Sensor Quartz Flexure Accelerometer

Basic Infomation
Place of Origin: China
Model Number: JB
Payment & Shipping Terms
Packaging Details: sponge/box
Delivery Time: 1 week for sample
Payment Terms: T/T
Supply Ability: 500/month
Product Description

JB1 navigation accelerometer flexible acceleromete...

quartz accelerometer with temp sensor temp compensated flexible accelerometer



Product Introduction

Quartz flexible accelerometer is a high-precision military inertial navigation grade accelerometer product with excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability. It can be used for both static testing and dynamic testing. test, is also a standard vibration sensor.

The output current of the product has a linear relationship with the force or acceleration received, and the user can select an appropriate sampling resistor through calculation to achieve high-precision output. A temperature sensor can be built-in according to user needs, which can be used to compensate the offset value and scale factor to reduce the influence of ambient temperature.



Features

High resolution

High stability

High accuracy

Low power

Excellent overload capacity

Small volume

Low cost

Broad measurement range



Applications

Drilling             Inclination Measurement

Aeronautics     Astronautics

Instruments     Inertial Equipment



High Resolution Quartz Flexure Accelerometer With Temp Sensor 0

Performance Characteristics

No. Parameters JB1-A JB1-B JB1-C
1 Range ±50g ±50g ±50g
2 Threshold 5μg 5μg 5μg
3 Bias K0/K1 ≤±3mg1 ≤±3mg ≤±5 mg
4 Scale factor K1 1.05~1.30 mA/g 1.05~1.30 mA/g 1.05~1.30 mA/g
5 Second order nonlinearity coefficient K2 ≤±10μg /g2 ≤±15μg /g2 ≤±20μg /g2
6 0g 4 hours short-term stability ≤10 μg ≤15 μg ≤20 μg
7 1g 4 hours short-term stability ≤10 ppm ≤15 ppm ≤20 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤10 μg ≤20 μg ≤30 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤15ppm ≤30 ppm ≤50 ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±10 μg /g2 ≤±20 μg /g2 ≤±30 μg /g2
11 Bias thermal coefficient (full temp. mean) ≤±10 μg /℃ ≤±30 μg /℃ ≤±50 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±10 ppm /℃ ≤±30 ppm /℃ ≤±50 ppm /℃
13 Noise (sampling resistance 840Ω) ≤5mv ≤8.4mv ≤8.4mv
14 Natural frequency 400~800 Hz 400~800 Hz 400~800 Hz
15 Bandwidth 800~2500 Hz 800~2500 Hz 800~2500 Hz
16 Random vibration 6g(20-2000Hz) 6g(20-2000Hz) 6g(20-2000Hz)
17 Impact 100g,5ms,1/2sin 100g,5ms,1/2sin 100g,5ms,1/2sin
18 Working temp. -55~+85℃ -55~+85℃ -55~+85℃
19 Store temp. -60~+120℃ -60~+120℃ -60~+120℃
20 Power supply ±12~±15V ±12~±15V ±12~±15V
21 Consume current ≤±20mA ≤±20mA ≤±20mA
22 Thermal sensor Customizable Customizable Customizable
23 Size Ф25.4X30mm Ф25.4X30mm Ф25.4X30mm
24 Weight ≤80g ≤80g ≤80g



Dimension

High Resolution Quartz Flexure Accelerometer With Temp Sensor 1

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4. One-year warranty to our product and negotiable for some cases.
  5. For installation or testing, we could provide on-line instruction and training the whole life.
