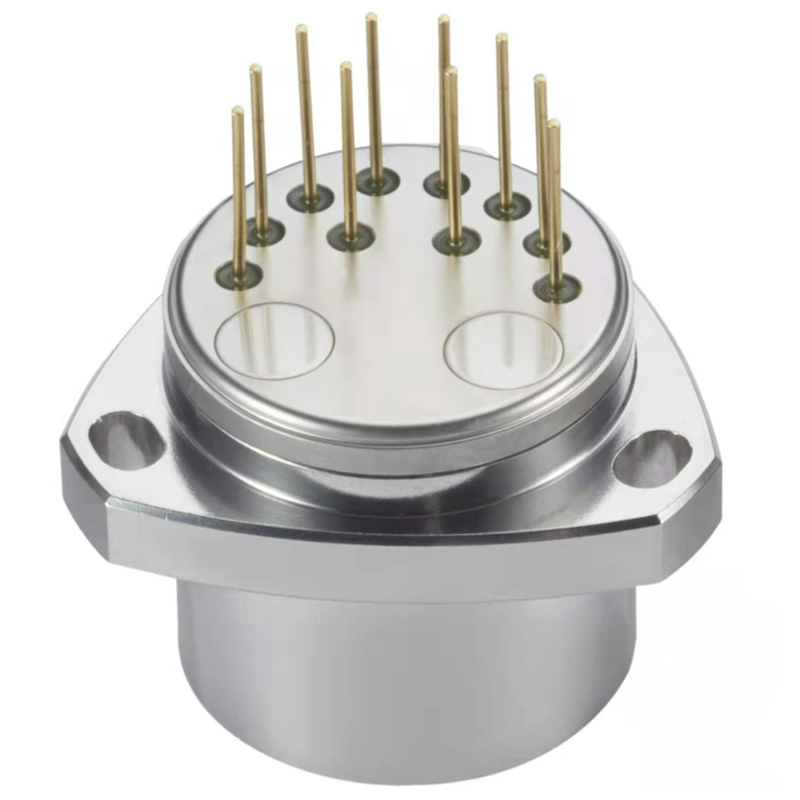

JB1 navigation accelerometer flexible acceleromete...
3 months stability accelerometer 3mg bias accelerometer
Applications
Introduction
industrial grade applications including: automotive test instrumentation, braking system deceleration, bridge and building sway and tilt monitoring, industrial and robotic control, land vehicle navigation, subway and high-speed train ride comfort control, and offshore drilling platform motion monitoring.
The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurement.
By use of customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage, it s’ operating Temperature Range is -55~180ºC.
Features
Index Table
No. | Parameters | JB1-01 | JB1-02 | JB1-03 |
1 | Range | ±30g | ±30g | ±30g |
2 | Bias K0/K1 | <10mg | <40mg | <40mg |
3 | Bias comprehensive repeatability σK0 (1σ,1 month) | <50µg | <250µg | <250µg |
4 | Thermal coefficient | <50µg/℃ | <150µg/℃ | <150µg/℃ |
5 | Scale factor K1 | 1.1~1.4 mA/g | 1.1~1.4 mA/g | 1.1~1.4 mA/g |
6 | Scale factor monthly comprehensive repeatability σk1/k1 (1σ, 1 month) | <80 ppm | <250 ppm | <250 ppm |
7 | Bias thermal coefficient (full temp. mean) | <100ppm | <200ppm | <200ppm |
8 | Installation error | <1500µrad | <1500µrad | <1500µrad |
9 | Vibration | <100µg/g 2rms (50-500Hz) | <100µg/g 2rms (50-500Hz) | <100µg/g 2rms (50-500Hz) |
10 | Noise | <3000µg-rms (0-10000Hz) | <3000µg-rms (0-10000Hz) | <3000µg-rms (0-10000Hz) |
11 | Working temp. | -55~96℃ | -55~125℃ | -55~180℃ |
12 | Impact | 500 g 0.5ms | 1000 g 0.5ms | 1000 g 0.5ms |
13 | Sinusoidal vibration | 25 g @30-500Hz | 25 g @30-500Hz | 25 g @30-500Hz |
14 | Resolution | <10µg | <10µg | <10µg |
15 | Bandwidth | >300 Hz | >300 Hz | >300 Hz |
16 | Consume current | <20 mA | <20 mA | <20 mA |
18 | Power dissipation @ ±15VDC | <480 mW | <480 mW | <480 mW |
19 | Input voltage | ±13 to ±18V | ±13 to ±18V | ±13 to ±18V |
20 | Weight | <65g 55nominal | <65g | <65g |
21 | Mounting diameter | Ф25mm1.0inches | Ф25mm | Ф25mm |
22 | Height | <21.5mm | <21.5mm | <21.5mm |
23 | Shell material | 300 Series stainless steel | 300 Series stainless steel | 300 Series stainless steel |
