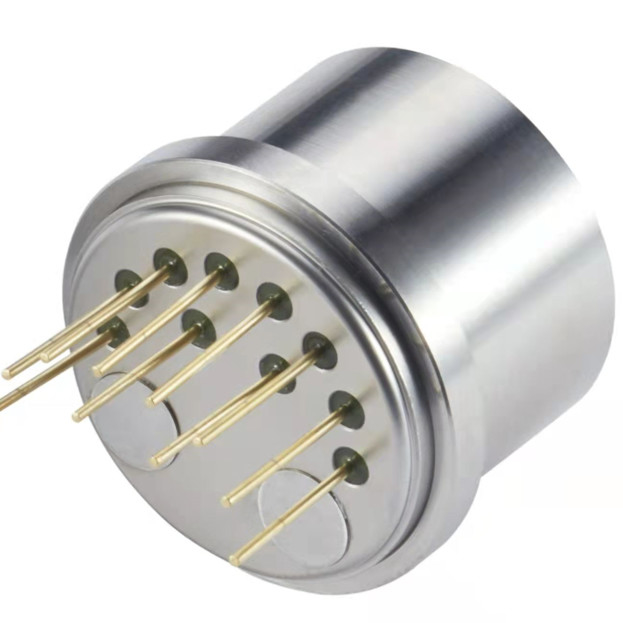

Quartz Flexure Sensitive Vibration Sensor Low Noise For Drilling

1
MOQ
900
Price
Quartz Flexure Sensitive Vibration Sensor Low Noise For Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Quartz Flexure Accelerometer
Range: +/-30g
Material: Stainless Steel
Bias K0/K1: ±30g
Thermal Coefficient: <50µg/℃
Noise: <3000µg-rms (0-10000Hz)
Highlight:

Flexure Sensitive Vibration Sensor

,

Quartz Sensitive Vibration Sensor

Basic Infomation
Place of Origin: China
Brand Name: Firepower
Model Number: JB13
Payment & Shipping Terms
Packaging Details: sponge+ box
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 500/month
Product Description

JB1 navigation accelerometer flexible acceleromete...

Vibration test sensor sensitive vibration sensor aviation vibration test sensor low noise



Features

  1. Low lag
  2. High resolution
  3. Widely temperature range
  4. High accuracy
  5. Low power
  6. Excellent overload capacity
  7. Small volume
  8. Low cost
  9. Broad measurement range



Applications

  1. Drilling
  2. Inclination Measurement
  3. Aeronautics
  4. Astronautics
  5. Instruments
  6. Equipment
  7. Navigation system

Index Table



No. Parameters JB1 JB2 JB13
1 Range ±30g ±30g ±30g
2 Bias K0/K1 <10mg <40mg <40mg
3 Bias comprehensive repeatability σK0 (1σ,1 month) <50µg <250µg <250µg
4 Thermal coefficient <50µg/℃ <150µg/℃ <150µg/℃
5 Scale factor K1 1.1~1.4 mA/g 1.1~1.4 mA/g 1.1~1.4 mA/g
6 Scale factor monthly comprehensive repeatability σk1/k1 (1σ, 1 month) <80 ppm <250 ppm <250 ppm
7 Bias thermal coefficient (full temp. mean) <100ppm <200ppm <200ppm
8 Installation error <1500µrad <1500µrad <1500µrad
9 Vibration <100µg/g 2rms (50-500Hz) <100µg/g 2rms (50-500Hz) <100µg/g 2rms (50-500Hz)
10 Noise <3000µg-rms (0-10000Hz) <3000µg-rms (0-10000Hz) <3000µg-rms (0-10000Hz)
11 Working temp. -55~96℃ -55~125℃ -55~180℃
12 Impact 500 g 0.5ms 1000 g 0.5ms 1000 g 0.5ms
13 Sinusoidal vibration 25 g @30-500Hz 25 g @30-500Hz 25 g @30-500Hz
14 Resolution <10µg <10µg <10µg
15 Bandwidth >300 Hz >300 Hz >300 Hz
16 Consume current <20 mA <20 mA <20 mA
18 Power dissipation @ ±15VDC <480 mW <480 mW <480 mW
19 Input voltage ±13 to ±18V ±13 to ±18V ±13 to ±18V
20 Weight <65g 55nominal <65g <65g
21 Mounting diameter Ф25mm1.0inches Ф25mm Ф25mm
22 Height <21.5mm <21.5mm <21.5mm
23 Shell material 300 Series stainless steel 300 Series stainless steel 300 Series stainless steel



Dimension

Quartz Flexure Sensitive Vibration Sensor Low Noise For Drilling 0
