Cost-Effective 6-Axis IMU Inertial Measurement Unit Stim300 Replacement

Brand Name:	Firepower
Model Number:	IMU6-1
MOQ:	1
Payment Terms:	T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

IMU Gyro For UAV

Gyro Measure Range:

450deg/s

Bias Stability:

0.3°/h

Scale Factor Nonlinearity:

150ppm

Scale Factor Repeatability (1σ ):

20ppm

Acc Measuring Range (customizable):

±10g

Bias Stability @10s:

0.05mg

3 DB Bandwidth:

100Hz

Packaging Details:

wooden carton

Supply Ability:

1000pcs

Highlight:

Turntable Single Axis Positioner

Single Axis Positioner Tilting Type

Tilting Type Single Axis Test Bench

Product Description

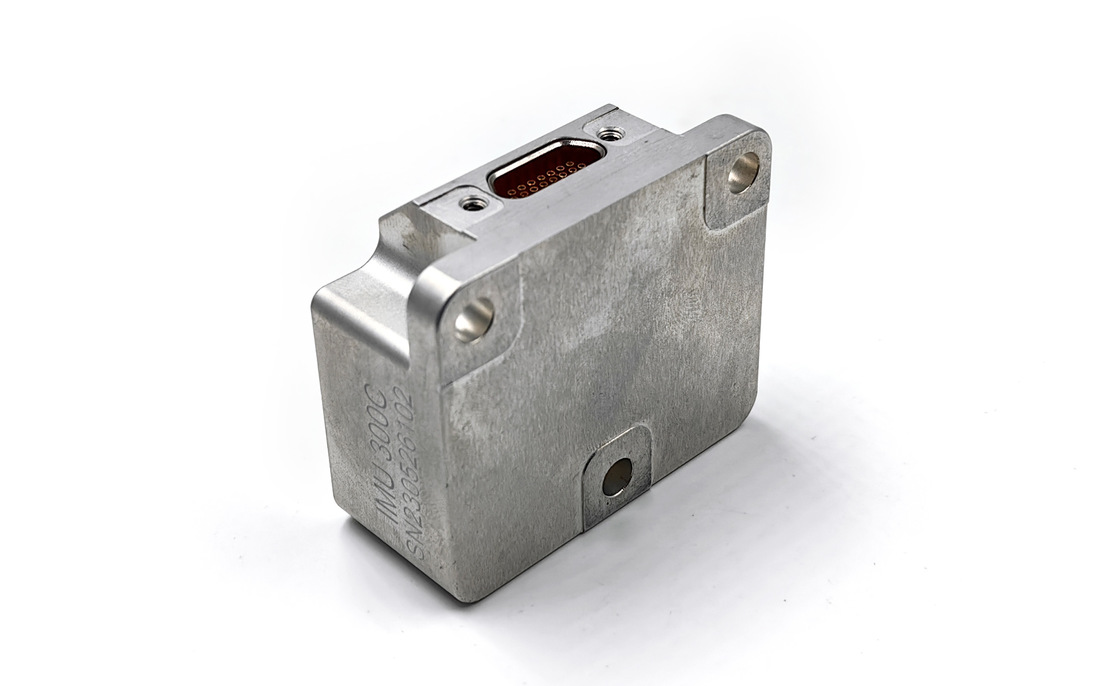

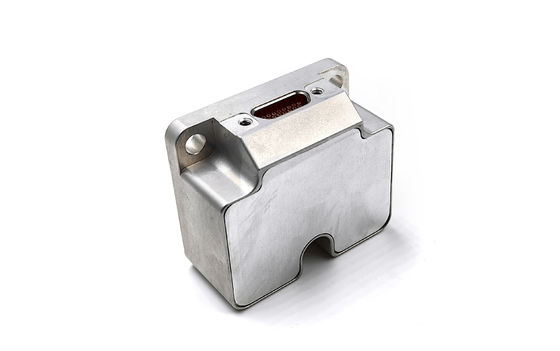

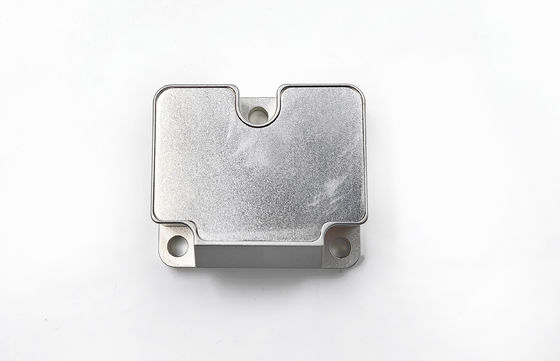

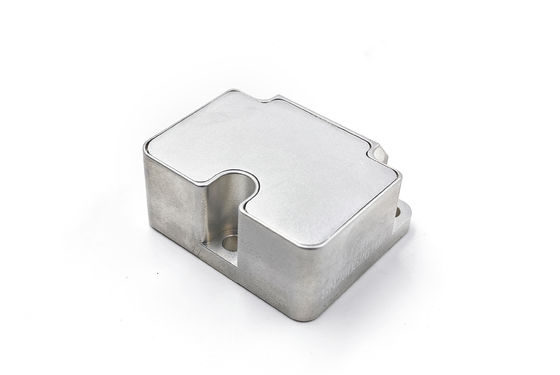

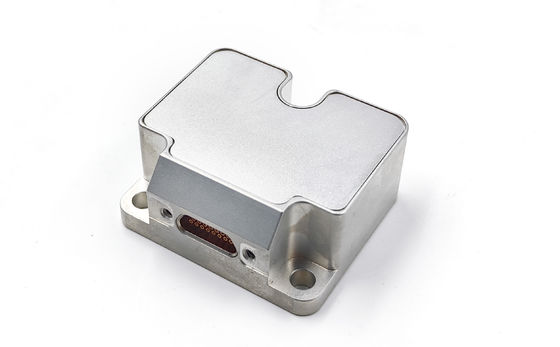

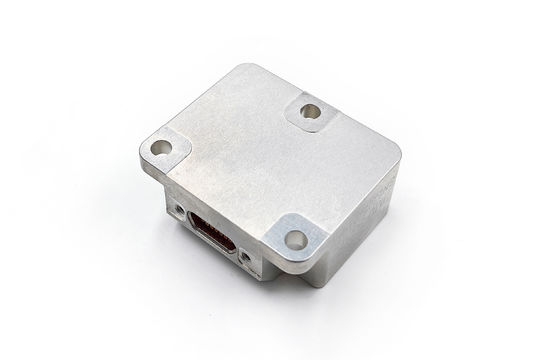

Cost-Effective 6-Axis IMU Inertial Measurement Unit Stim300 Replacement

This MEMS Inertial Measurement Unit (IMU) integrates a three-axis gyroscope, three-axis accelerometer, three-axis inclinometer, temperature sensor, and signal processing board into a compact, robust system. It measures angular rate, acceleration, and inclination of a carrier with high accuracy and outputs compensated data (temperature, misalignment, nonlinear errors) via RS-422. Ideal for navigation, attitude control, and stabilization, this MEMS IMU offers a cost-effective and high-performance replacement for STIM300 in UAVs, vehicles, and industrial platforms.

Main Technical Parameters

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A	IMU6-1B	IMU6-1C
Measuring range (customizable)	°/s	±400	±400	±400	±2000
In-Run Bias Stability(@ Allan variance)	°/h	0.3	0.1	0.05	1
Bias stability @10s (10s smooth, 1σ, room temperature)	°/h	3	1	0.5	6
Bias stability in full temperature	°/h	10	3	2	18
Angular Random Walk	°/√h	0.15	0.1	0.02	0.3
Bias repeatability (1σ)	°/h	1	0.5	0.3	2
Bias acceleration sensitivity	°/h/g	1	1	1	2
Scale Factor Non-Linearity(1σ)	ppm	150	150	150	300
Scale Factor Repeatability (1σ)	ppm	20	20	20	100
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	250	200	150	250

Accelerometer Technical Indicators

Parameter	Unit	IMU6-1y-1	IMU6-1y-2	IMU6-1y-3	IMU6-1y-4
Measuring range (customizable)	g	±10	±30	±50	±80
In-Run Bias Stability (Allan Variance @ 25 ℃)	mg	0.02	0.05	0.1	0.2
Bias stability @10s	mg	0.05	0.2	0.5	1
Bias stability in full temperature	mg	1	3	5	15
Angular Random Walk	m/s/√h	0.001	0.002	0.005	0.01
Bias repeatability(1σ)	mg	0.1	0.5	1	2
Scale Factor Repeatability (1σ)	ppm	200	200	200	200
Scale Factor Non-Linearity(1σ)	ppm	50	100	200	300
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	100	100	100	100

Tilt Angle Specification (not Configured by Default, Optional)

Parameter	Unit	IMU6-1y-x
Measuring range (customizable)	g	±1.7
Bias stability (1s smoothing)	mg	0.5
Random walk	m/s/√h	0.08
Scale factor non-linearity	ppm	100

Electrical Characteristics

Parameter	Unit	IMU6-1y-x
Voltage	V	5
Power consumption	W	2
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	IMU6-1y-x
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105
Vibration	--	10~2000Hz,6.06g
Impact	--	1000g,0.1ms

Other Specifications

Parameter	Unit	IMU6-1y-x
Weight	g	55±5
