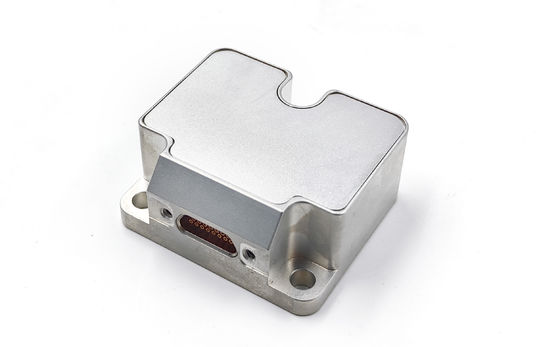

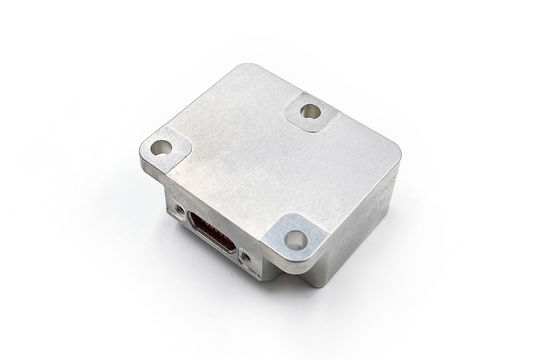

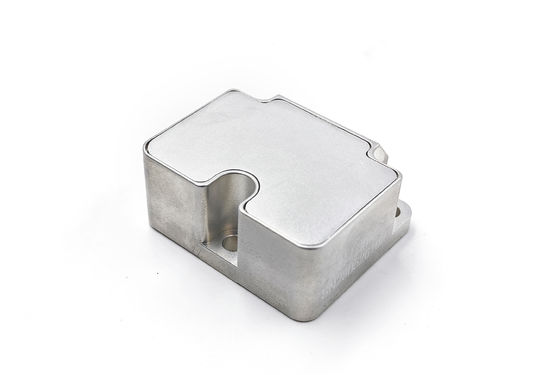

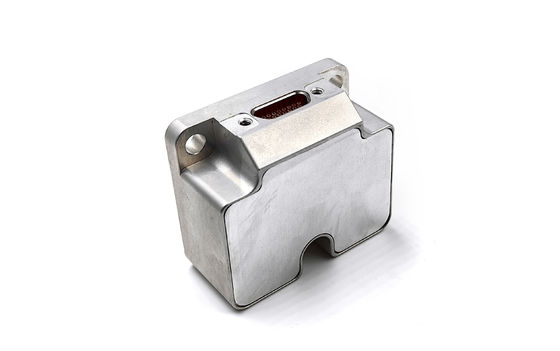

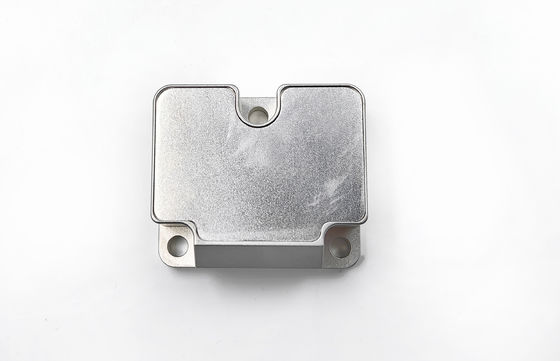

China Manufacturer Stim300 Tactical Grade IMU with 0.05 deg/hr Gyro Bias Stability

Brand Name:	Firepower
Model Number:	IMU6-1B
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Gryo Range:

±400deg/s

Acceleromete Range:

±50g

In-Run Bias Stability:

0. 05°/h

Bias Stability @10s (10s Smooth, 1σ, Room Temperature:

0.5°/h

Angular Random Walk:

0.02°/√h

Bias Repeatability (1σ ):

0.3°/h

Scale Factor Non-Linearity(1σ ):

150ppm

3 DB Bandwidth:

150Hz

Packaging Details:

wooden carton

Supply Ability:

1000pcs

Highlight:

Position Single Axis Turntable

50 Loops Single Axis Turntable

Temperature Chamber Single Axis Turntable

Product Description

China Manufacturer Stim300 Tactical Grade IMU with 0.05 deg/hr Gyro Bias Stability

Main Technical Parameters

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A	IMU6-1B	IMU6-1C
Measuring range (customizable)	°/s	±400	±400	±400	±2000
In-Run Bias Stability(@ Allan variance)	°/h	0.3	0.1	0.05	1
Bias stability @10s (10s smooth, 1σ, room temperature)	°/h	3	1	0.5	6
Bias stability in full temperature	°/h	10	3	2	18
Angular Random Walk	°/√h	0.15	0.1	0.02	0.3
Bias repeatability (1σ)	°/h	1	0.5	0.3	2
Bias acceleration sensitivity	°/h/g	1	1	1	2
Scale Factor Non-Linearity(1σ)	ppm	150	150	150	300
Scale Factor Repeatability (1σ)	ppm	20	20	20	100
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	250	200	150	250

Accelerometer Technical Indicators

Parameter	Unit	IMU6-1y-1	IMU6-1y-2	IMU6-1y-3	IMU6-1y-4
Measuring range (customizable)	g	±10	±30	±50	±80
In-Run Bias Stability (Allan Variance @ 25 ℃)	mg	0.02	0.05	0.1	0.2
Bias stability @10s	mg	0.05	0.2	0.5	1
Bias stability in full temperature	mg	1	3	5	15
Angular Random Walk	m/s/√h	0.001	0.002	0.005	0.01
Bias repeatability(1σ)	mg	0.1	0.5	1	2
Scale Factor Repeatability (1σ)	ppm	200	200	200	200
Scale Factor Non-Linearity(1σ)	ppm	50	100	200	300
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	100	100	100	100

Tilt Angle Specification (not Configured by Default, Optional)

Parameter	Unit	IMU6-1y-x
Measuring range (customizable)	g	±1.7
Bias stability (1s smoothing)	mg	0.5
Random walk	m/s/√h	0.08
Scale factor non-linearity	ppm	100

Electrical Characteristics

Parameter	Unit	IMU6-1y-x
Voltage	V	5
Power consumption	W	2
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	IMU6-1y-x
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105
Vibration	--	10~2000Hz,6.06g
Impact	--	1000g,0.1ms

Other Specifications

Parameter	Unit	IMU6-1y-x
Weight	g	55±5

The MEMS Inertial Measurement Unit integrates all key sensors and a signal processing board in one solid-state package. It captures three-axis angular rate, acceleration, and tilt, applies temperature and alignment error compensation, and provides accurate output via RS-422. Compact, durable, and low-power, it is ideal for navigation, UAVs, robotics, and industrial automation, and acts as a high-performance replacement for STIM300.
