Product Name: Vibratory Turntable
Max Measured Object Size: Ø300mm X 300mm
Two Axis Intersection: 0.1mm
Axis Perpendicularity: ±4''
Rotary Angle Range: ±170deg
Working Mode: Position, Vibration And Make Zero
Table Body Weight: About 1000kg
High Light:

Vibration 2 Axis Turntable

,

2 Axis Turntable Frame Based

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 2KTZ-300
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5 months
Payment Terms: T/T, L/C
Supply Ability: 10 pcs/5 months
Product Description

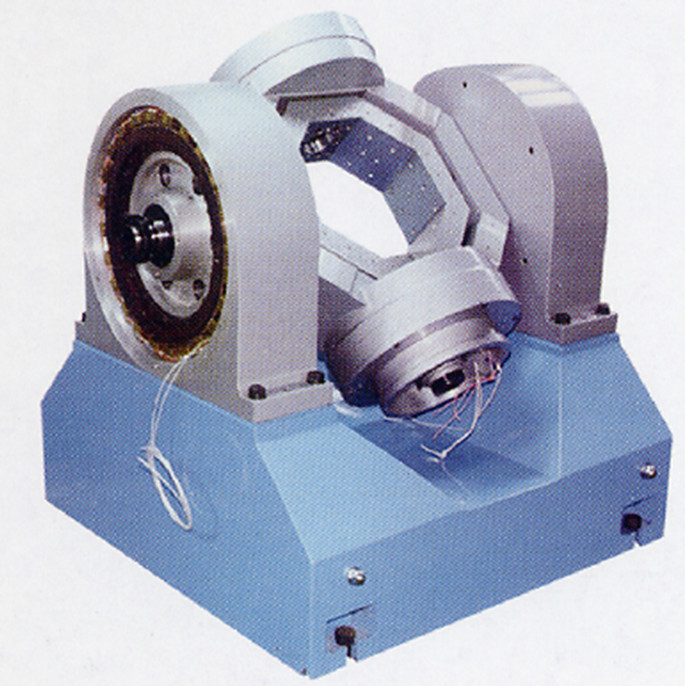

dual axis angular vibration turntable 2 axis vibratory simulator



It is dual axis automatic frame-based mechanical shafting ground test equipment. It is mainly used to simulate the vibration process when carrier launch, to test the bearing capability and tracking accuracy of inertial navigation system under angular vibration situation. It is controlled and data processed by computer, capable of return zero, positioning, vibration function and with advantage of high measure accuracy and high dynamic performance.





General features

Load capacity 15kg
Max measured object size Ø300mm x 300mm
Two axis intersection 0.1mm
Axis perpendicularity ±4’’
Rotary angle range ±170°
Working mode Position, vibration and make zero
Table body weight About 1000kg
Table body outline size About 1200mm x 900mm x 900mm



Performance index

  Inner ring Outer ring
Angular position measure accuracy ±3’’ ±3’’
Angular position measure resolution 0.36’’ 0.36’’
Angular position measure repeatability ±2’’ ±2’’
Angular position control accuracy ±5’’ ±5’’
Angular vibration frequency 30Hz 20Hz
vibration amplitude under max vibration frequency 0.15° 0.15°
Angular vibration waveform distortion degree <5% <5%
Inner/outer ring control crossing link error <4’’
