Industrial Grade 10-Axis IMU with 3-Axis Accelerometer Gyroscope Magnetometer Barometer

Name: Industrial Grade 10-Axis IMU with 3-Axis Accelerometer Gyroscope Magnetometer Barometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HB
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HB
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Dynamic Measuring Range:

±450º/s

Zero-bias Instability:

5º/h

Zero Bias Stability:

10º/h

Random Walk:

0.26º/√h

Zero-bias Repeatability:

20º/h

Scale Factor Repeatability:

200ppm

Weight:

48g

Operating Temperature:

-45-85℃

Packaging Details:

wooden box

Supply Ability:

1000pcs

Highlight:

Mechanical Turntable Three Axis

Turntable Three Axis 1100x700x767mm

Turntable Three Axis 170kg

Product Description

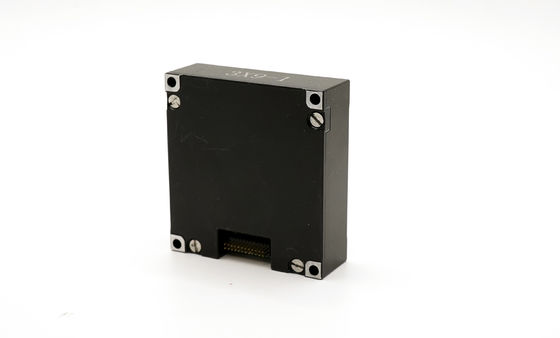

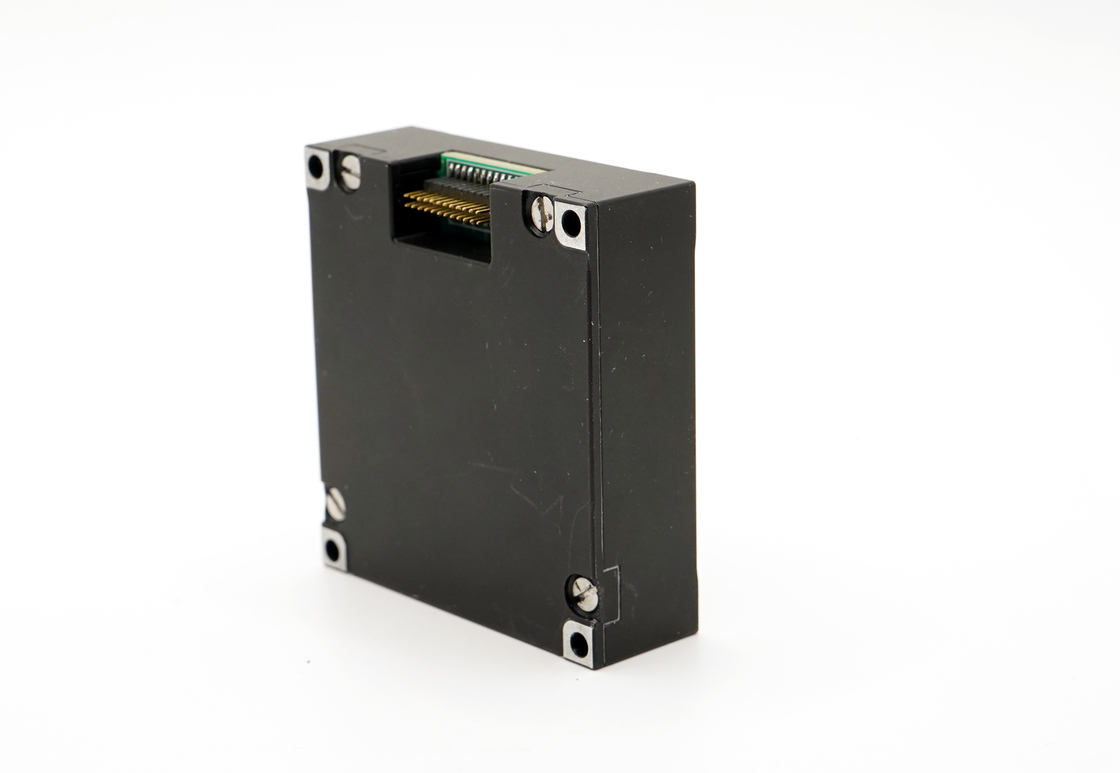

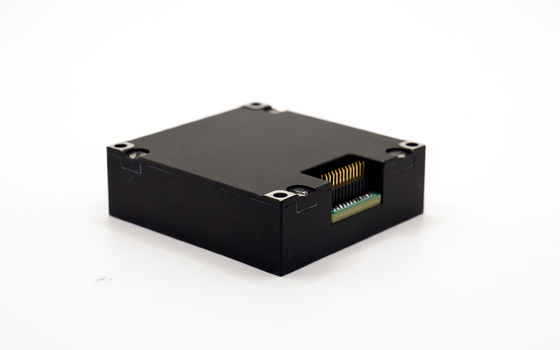

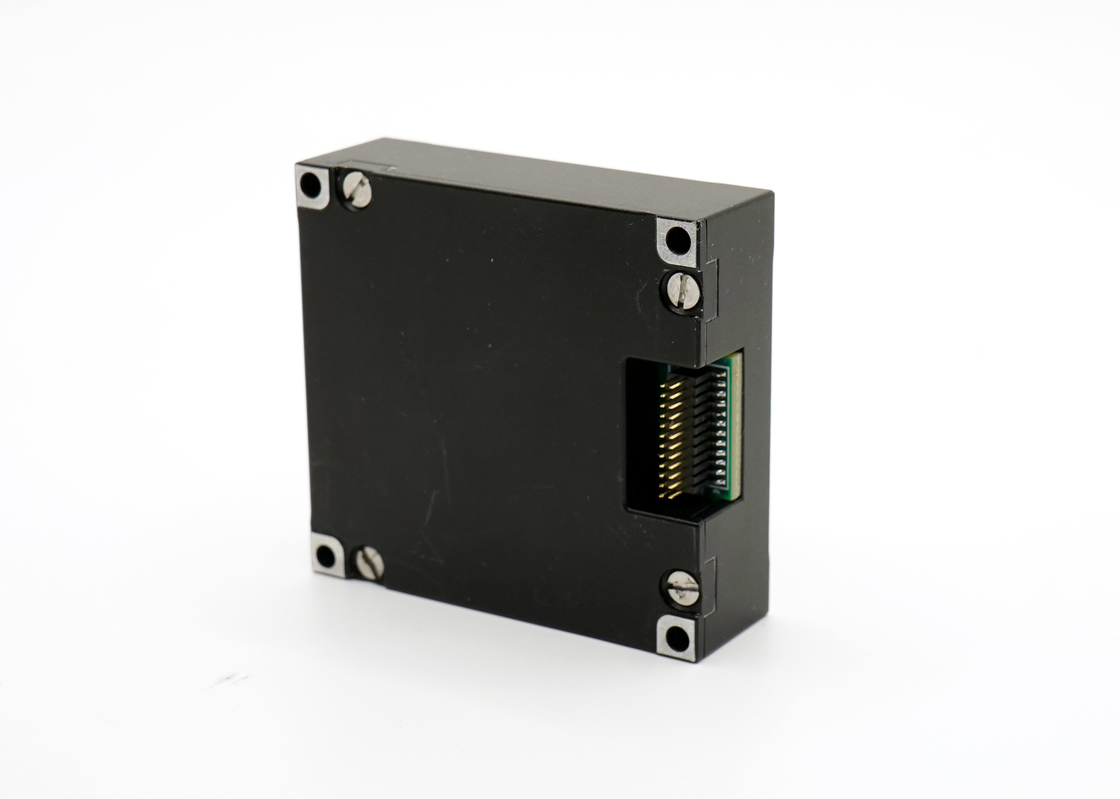

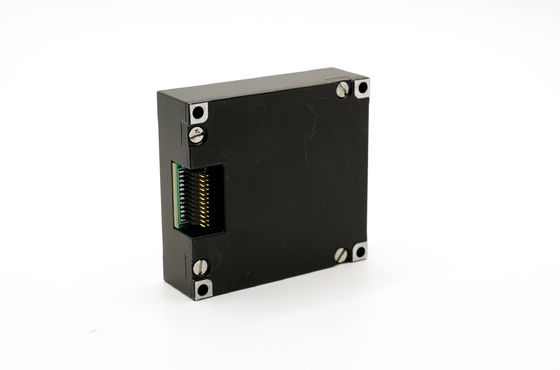

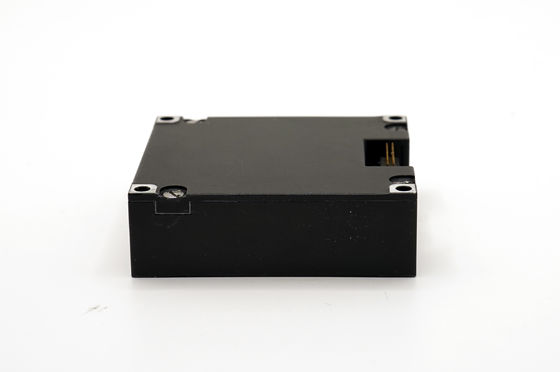

Industrial Grade 10-Axis IMU with 3-Axis Accelerometer Gyroscope Magnetometer Barometer

Product Functions and Technical Parameters

Composition and Function

The 16488HB multi-degree-of-freedom inertial measurement unit is a complete inertial system featuring:

Three-axis gyroscope
Three-axis accelerometer
Three-axis magnetometer
Pressure sensor

This system measures three-axis angular rate, acceleration, magnetic field, and air pressure parameters. It outputs error-compensated data (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation) through SPI or UART communication protocols.

Main Technical Parameters

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope	Dynamic measuring range			500	2000	°/s
	Zero bias stability	Allan variance, Z-axis		0.8		°/h
		Allan variance, X and Y axis		1.6		°/h
		10 s average (-40 ℃ ~ + 70 ℃, constant temperature), Z-axis		3		°/h
		10 s average (-40 ℃ ~ + 70 ℃, constant temperature), X-axis and Y-axis		6		°/h
	Zero bias	Zero-bias range, Z-axis		±0.07		°/s
		Zero-bias range, X-axis and Y-axis		±0.2		°/s
		Zero-bias change in full temperature range, Z-axis ①		±0.02		°/s
		Zero Bias Change Over Temperature, X and Y Axis ①		±0.06		°/s
		Successive Start Repeatability, Z-axis		0.002
		Successive Start Repeatability, X-Axis and Y-Axis		0.006		°/s
	Day-by-day start repeatability, Z-axis		0.003		/s
	Start repetition day by day, X axis and Y axis		0.009		°/s
	Ffect of linear acceleration on bias		0.002		°/s/g
	Influence of vibration on zero bias, change before and after vibration ②		0.002		°/s/g
	Influence of vibration on zero bias, change before and during vibration ②		0.002		°/s/g
	Scale factor	Scale factor accuracy, Z-axis		0.3		%
		Scale Factor Accuracy, X and Y Axis		0.6		%
		Scale factor nonlinearity, Z-axis		0.01		%FS
		Scale Factor Nonlinearity, X and Y Axis		0.02		%FS
	Angular random walk			0.15		°/ √hr
	Noise density			0.001		°/s/ √Hz
	Resolution			3.052*10-7		/s/LSB
	Bandwidth			200		Hz
Accelerometer	Dynamic measuring range			16	200	g
	Zero bias stability	Allan variance		0.06		mg
	Zero bias stability	10 s average (-40 ℃ ~ + 70 ℃, constant temperature)		0.4		mg
	Zero bias	Zero bias range		2		mg
		Change of zero bias within the whole temperature range, peak-to-peak value ①		4		mg
		Repeatability of successive starts		0.5		mg
		Repeatability is initiated on a daily basis		0.8		mg
		Zero-bias temperature coefficient		0.05	0.1	mg/℃
