3 Axis Turntable

Mechanical Turntable Three Axis 1100x700x767mm 170kg Load Capacity

Name: Mechanical Turntable Three Axis 1100x700x767mm 170kg Load Capacity
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: AVIC-ST170
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	AVIC-ST170
MOQ:	1
Payment Terms:	L/C, T/T
Supply Ability:	10/6 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Load Capacity:

170kg

Max Measured Object Size:

1100mm X 700mm X 767mm

Wobble:

<±10''

Perpendicularity:

<±10''

Orthogonality:

1mm

Angular Acceleration:

>2000deg/s

Bandwidth:

>25Hz

Packaging Details:

wooden box

Supply Ability:

10/6 months

Highlight:

Mechanical Turntable Three Axis

Turntable Three Axis 1100x700x767mm

Turntable Three Axis 170kg

Product Description

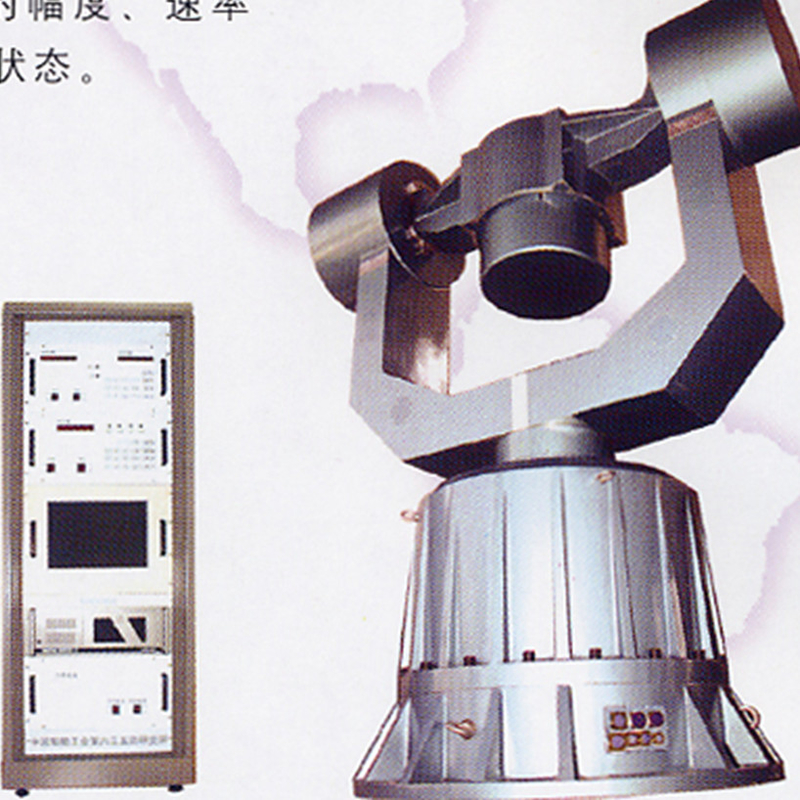

Three axis angular vibration simulating turntable mechanical turntable servo simulator

It is composed of mechanical turntable body, control cabinet, power cabinet and cable. User could do all operation by IPC. The turntable could realize sine angular vibration of heading, pitch and roll of free degree. The angular vibration amplitude, speed and frequency is variable in succession, the vibration zero position could be set. The system could work as servo status.

General features

Load capacity	170kg
Max measured object size	1100mm x 700mm x 767mm
Wobble size	<±10’’
Perpendicularity	<±10’’
orthogonality	1mm
Angular acceleration	>2000°/s
Angular position range	Heading N x 360°
pitch	-60°~+150°
roll	>±150°
bandwidth	>25Hz

Mechanical Turntable Three Axis 1100x700x767mm 170kg Load Capacity 0
