Factory Calibrated 6-Axis IMU Inertial Sensor for Autonomous Vehicle Navigation

Name: Factory Calibrated 6-Axis IMU Inertial Sensor for Autonomous Vehicle Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 2000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	2000$
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Dynamic Measuring Range:

±450º/s

Zero-bias Instability:

0.3º/h

Zero Bias In Full Temperature Range:

20º/h

Random Walk:

0.15º/√h

Zero-bias Repeatability:

5º/h

Bandwidth:

250Hz

Cross Coupling:

0.1%

Resolution:

2º/h

Packaging Details:

wooden box

Supply Ability:

1000pcs

Highlight:

Motion Simulator 3 Axis Turntable

3 Axis Turntable Frame Type

Product Description

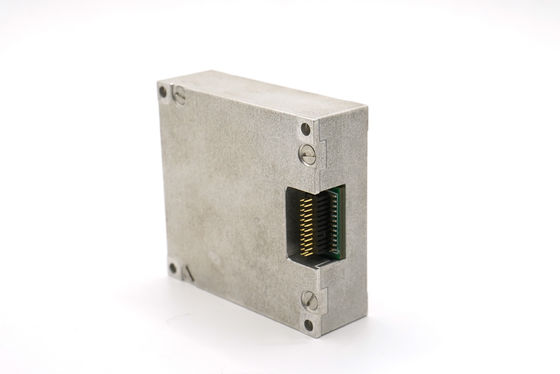

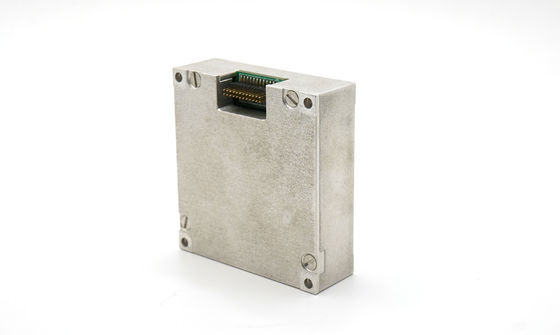

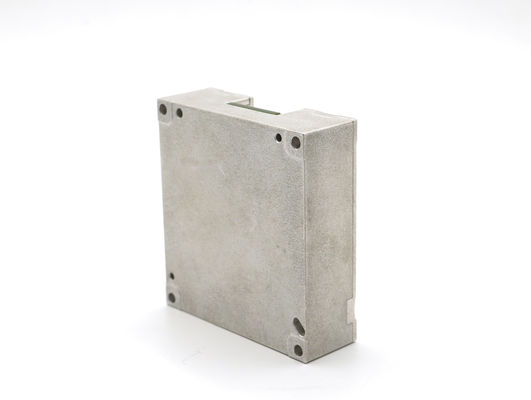

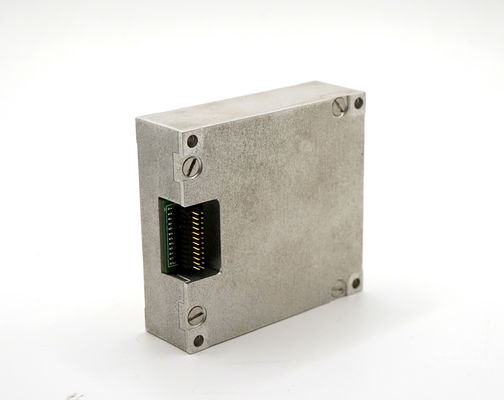

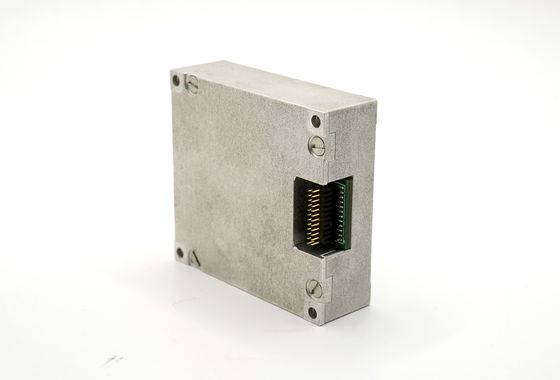

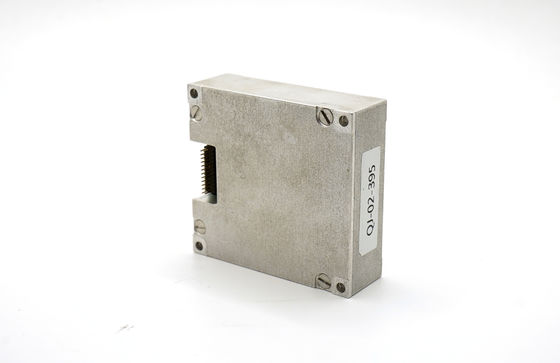

Factory Calibrated 6-Axis IMU Inertial Sensor for Autonomous Vehicle Navigation

Product Description

The 16488HA inertial measurement unit is a complete inertial system featuring a built-in three-axis gyroscope and three-axis accelerometer. It measures three-axis angular rate, acceleration, and other parameters of the carrier, outputting error-compensated data (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation) through SPI according to the communication protocol.

Main Technical Parameters

Parameter	Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

Outline Drawing
