Motion Simulator 3 Axis Turntable Automatic Frame Type Simulate Position

1
MOQ
Motion Simulator 3 Axis Turntable Automatic Frame Type Simulate Position
Features Gallery Product Description Request A Quote
Features
Specifications
Load Capacity: 20kg
Max Measured Object Size: 220mm X 220mm X 280mm
Wobble: Inner/outer Frame: ±4’’ Mid Frame: ±6’’
Perpendicularity: Mid-inner Frame ±5’’ Mid-outer Ring ±5’’
Table Body Weight: About 800kg
Slip Rings: User Rings: 70 Rings X 3
Bandwidth: >25Hz
High Light:

Motion Simulator 3 Axis Turntable

,

3 Axis Turntable Frame Type

Basic Infomation
Place of Origin: China
Brand Name: AVIC
Model Number: 3KTD-311
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 6 months
Payment Terms: L/C, T/T
Supply Ability: 10/6 months
Product Description

multi-function motion simulator 3 axis, three axis turntable simulate position, rate, angular speed

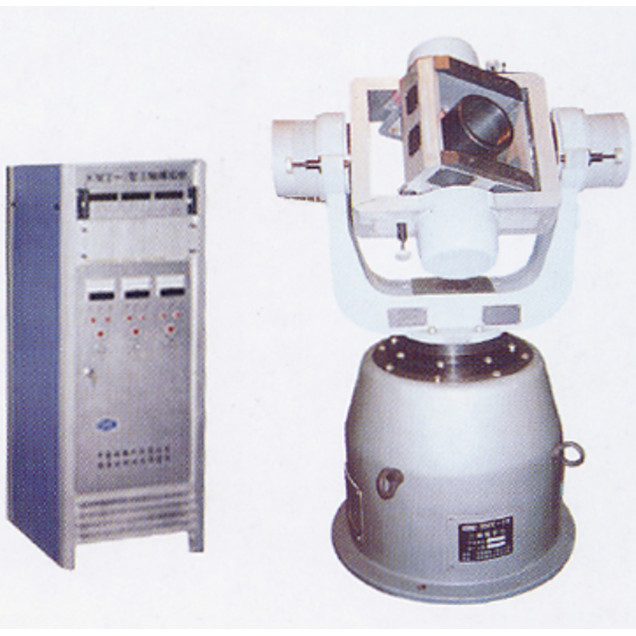

3KTD-311 is three axis automatic frame-type, multi-function, mechanical shafting dynamic simulation test equipment. It is mainly used to inertial navigation system’s position, rate and sway test. It is controlled and data processed by computer, owning features of high precision, wide dynamic range and so on.





General features



Load capacity 20kg
Max measured object size 220mm x 220mm x 280mm
Wobble error

Inner/outer frame: ±4’’

Mid frame: ±6’’

Rotary angle range Three axis Continuous infinite
Axis perpendicularity

Mid-inner frame ±5’’

Mid-outer ring ±5’’

Working mode Position, rate, swing
Table body weight About 800kg
Table body outline About 800mm x 700mm x 1300mm
Electric control cabinet 19’’ standard cabinet, height: 1600mm
Conductive slip rings

User rings: 70 rings x 3Ar



Performance index



Angular position measure accuracy ±3’’
Angular position measure resolution 0.36’’
Angular position measure repeatability ±2’’
Angular position control accuracy ±5’’
rate range

Inner frame: 0.001°/s~400°/s

mid frame: 0.001°/s~200°/s

rate accuracy and stability 5x10-5(360° average)
Max angle acceleration

inner frame 220°/s2,

Mid-frame 130°/s2,

outer frame 50°/s2,

Sway amplitude

Inner frame: ±45°

Mid-frame: ±30°

Outer frame: ±10°

Sway period 5sec~12sec
Control system bandwidth

Inner frame: 10Hz

Mid frame: 10Hz

Outer frame: 5Hz
