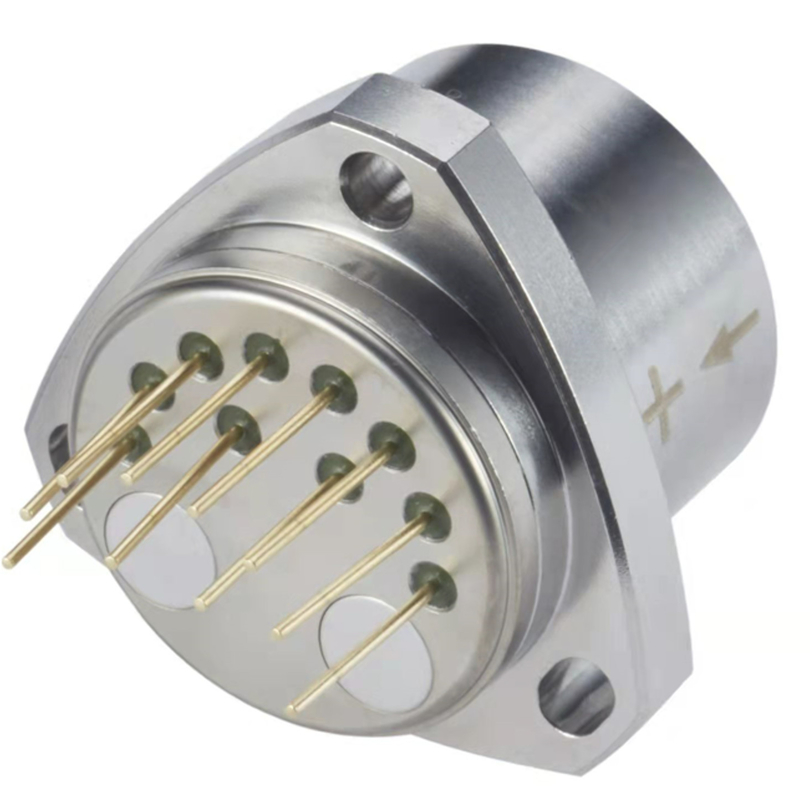

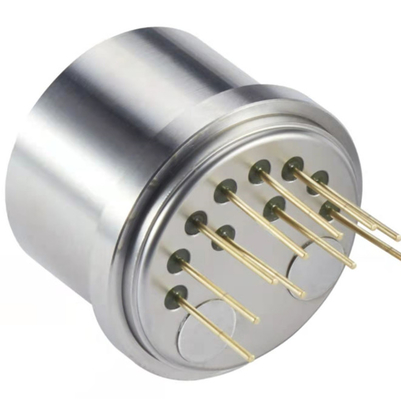

Flexure vibration meter single axis, navigation level accelerometer cost effective, quartz vibration transducer
Index Table
| No. | Parameters | JB1 | JB2 | JB13 |
| 1 | Range | ±30g | ±30g | ±30g |
| 2 | Bias K0/K1 | ＜10mg | ＜40mg | ＜40mg |
| 3 | Bias comprehensive repeatability σK0 (1σ,1 month) | ＜50µg | ＜250µg | ＜250µg |
| 4 | Thermal coefficient | ＜50µg/℃ | ＜150µg/℃ | ＜150µg/℃ |
| 5 | Scale factor K1 | 1.1～1.4 mA/g | 1.1～1.4 mA/g | 1.1～1.4 mA/g |
| 6 | Scale factor monthly comprehensive repeatability σk1/k1 (1σ, 1 month) | ＜80 ppm | ＜250 ppm | ＜250 ppm |
| 7 | Bias thermal coefficient (full temp. mean) | ＜100ppm | ＜200ppm | ＜200ppm |
| 8 | Installation error | ＜1500µrad | ＜1500µrad | ＜1500µrad |
| 9 | Vibration | ＜100µg/g 2rms (50-500Hz) | ＜100µg/g 2rms (50-500Hz) | ＜100µg/g 2rms (50-500Hz) |
| 10 | Noise | ＜3000µg-rms (0-10000Hz) | ＜3000µg-rms (0-10000Hz) | ＜3000µg-rms (0-10000Hz) |
| 11 | Working temp. | -55～96℃ | -55～125℃ | -55～180℃ |
| 12 | Impact | 500 g 0.5ms | 1000 g 0.5ms | 1000 g 0.5ms |
| 13 | Sinusoidal vibration | 25 g @30-500Hz | 25 g @30-500Hz | 25 g @30-500Hz |
| 14 | Resolution | ＜10µg | ＜10µg | ＜10µg |
| 15 | Bandwidth | ＞300 Hz | ＞300 Hz | ＞300 Hz |
| 16 | Consume current | ＜20 mA | ＜20 mA | ＜20 mA |
| 18 | Power dissipation @ ±15VDC | ＜480 mW | ＜480 mW | ＜480 mW |
| 19 | Input voltage | ±13 to ±18V | ±13 to ±18V | ±13 to ±18V |
| 20 | Weight | ＜65g 55nominal | ＜65g | ＜65g |
| 21 | Mounting diameter | Ф25mm1.0inches | Ф25mm | Ф25mm |
| 22 | Height | ＜21.5mm | ＜21.5mm | ＜21.5mm |
| 23 | Shell material | 300 Series stainless steel | 300 Series stainless steel | 300 Series stainless steel |
