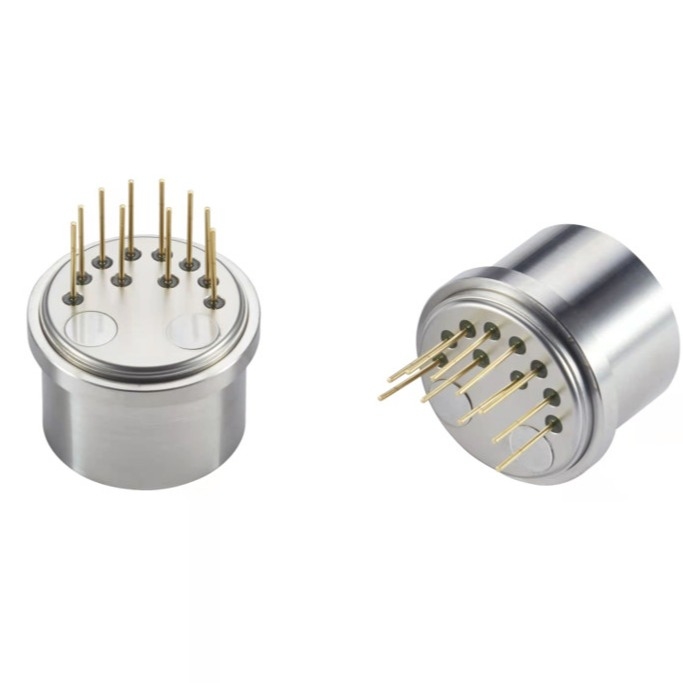

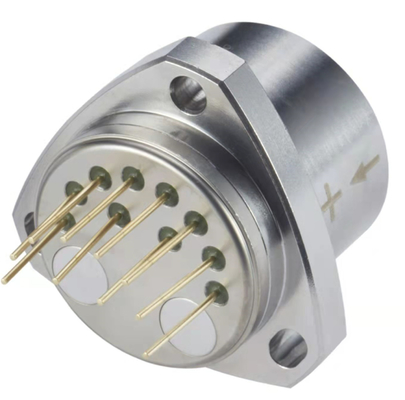

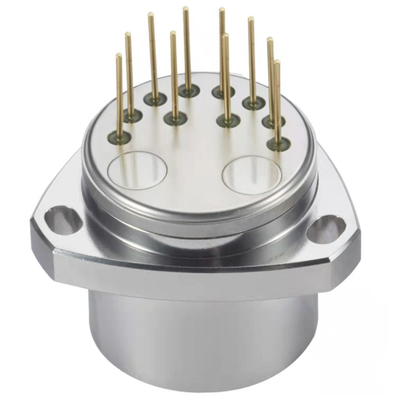

high work temperature quartz crystal accelerometer for oil drilling
The Accelerometeroutput current and the force received are linear output, and the user can select the appropriate sampling resistor to achieve the highest accuracy output. At the same time, the Tempe Sensor is built in, and the output current changes linearly with temperature. The user compensates the Deviation value and Scale factor to reduce the temperature effect (optional). The product can be used for both static and dynamic testing and is a standard vibration sensor
Features
Low lag
High resolution
High stability
High accuracy
Low power
Excellent overload capacity
Small volume
Low cost
Broad measurement range
Performance Characteristics
| No. | Parameters | JB3-01 | |
| 1 | Range | ±60g | |
| 2 | Threshold | 5μg | |
| 3 | Bias K0/K1 | ≤±5 mg | |
| 4 | Scale factor K1 | 1.0±0.2 mA/g | |
| 5 | Second order nonlinearity coefficient K2 | ≤±20μg /g2 | |
| 6 | 0g 4 hours short-term stability | ≤10 μg | |
| 7 | 1g 4 hours short-term stability | ≤10 ppm | |
| 8 | Bias comprehensive repeatability σK0 (1σ,1 month) | ≤15 μg | |
| 9 | Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) | ≤15 ppm | |
| 10 | Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) | ≤±20 μg /g2 | |
| 11 | Bias thermal coefficient (full temp. mean) | ≤±15 μg /℃ | |
| 12 | Scale factor thermal coefficient (full temp. mean) | ≤±15 ppm /℃ | |
| 13 | Noise (sampling resistance 840Ω) | ≤5mv | |
| 14 | Natural frequency | 350~800 Hz | |
| 15 | Bandwidth | 800~2500 Hz | |
| 16 | Random vibration | 10g(20-2000Hz) | |
| 17 | Impact | 150g,5ms,1/2sin | |
| 18 | Working temp. | -55～+85℃ | |
| 19 | Store temp. | -60~+120℃ | |
| 20 | Power supply | ±12~±15V | |
| 21 | Consume current | ≤±20mA | |
| 22 | Thermal sensor |
|
|
| 23 | Size | ||
| 24 | Weight | ≤30g |
Applications
Drilling and Inclination Measurement,
Aeronautics and Astronautics,
Instruments and Equipment
