Industrial Grade 6-Axis MEMS IMU Sensor for Intelligent driving

Brand Name:	Firepower
Model Number:	IMU 115
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Three-axis Digital Gyroscope:

250/ 500 º/s

Triaxial Digital Accelerometer:

4/16 G

Zero Bias Stability:

3.0º/h

Zero Bias Range:

±0.2 º/s

Scale Factor Accuracy:

0.2%

Interface:

1-way UART

Size:

22.4×22.4×9.5 Mm

Weight:

16g

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

360 Degree Three Axis Turntable

Three Axis Turntable Free Rotation

Product Description

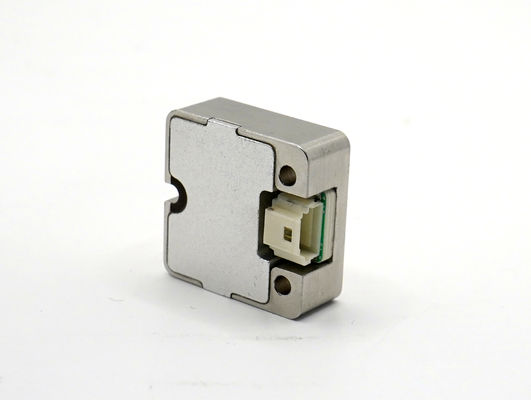

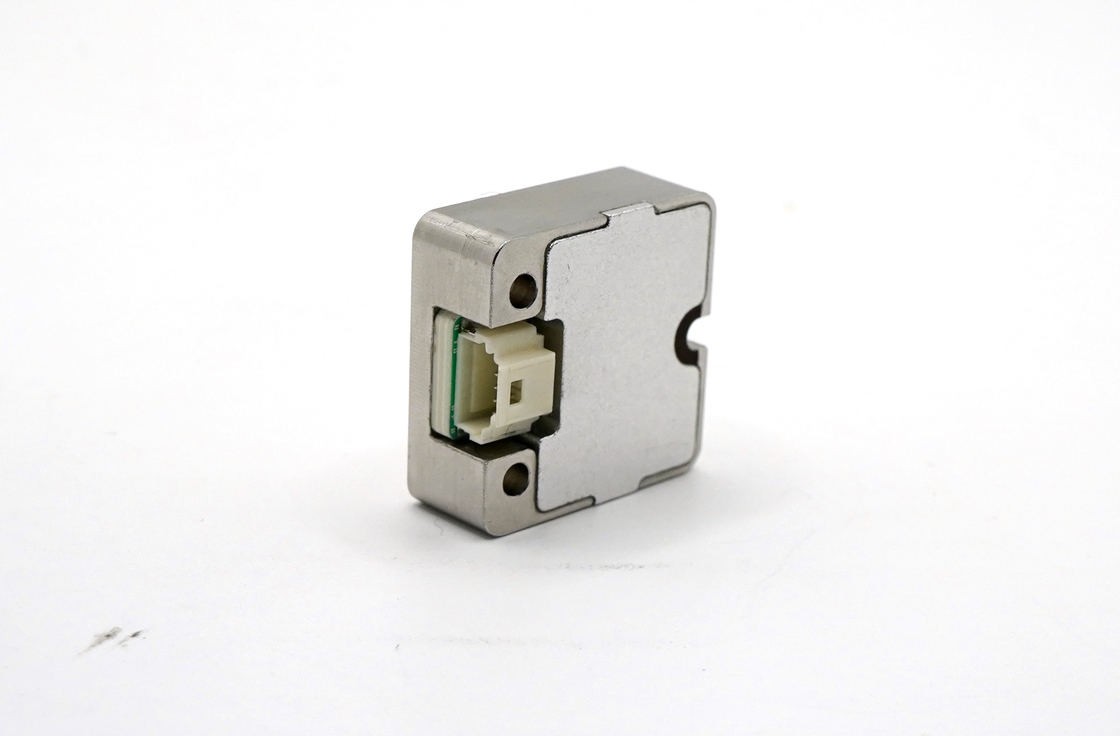

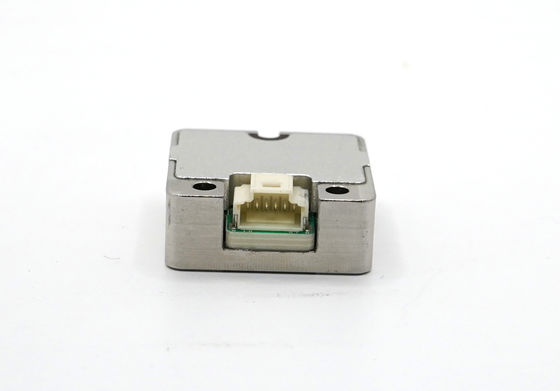

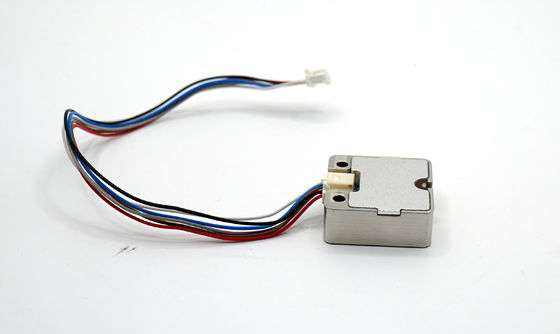

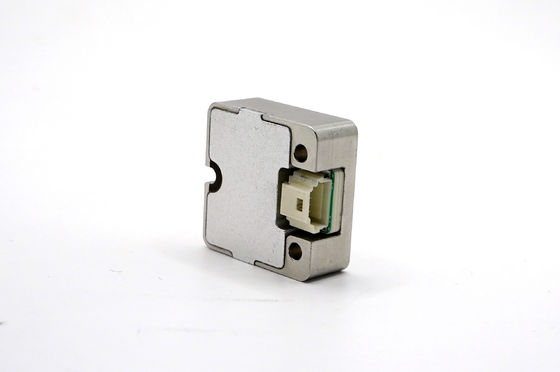

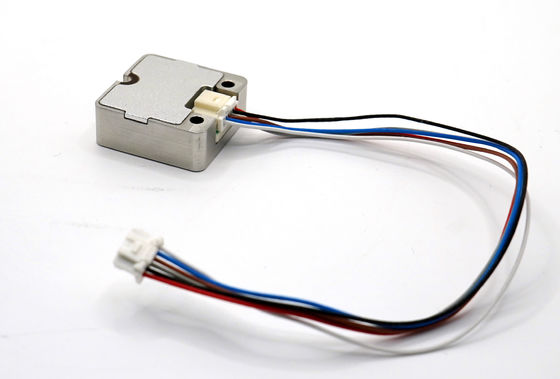

Industrial Grade 6-Axis MEMS IMU Sensor for Intelligent Driving

Product Overview

The IMU115 is a high-performance inertial measurement unit (IMU) based on micro-mechanical technology (MEMS), featuring built-in MEMS gyroscope and accelerometer that outputs 3-axis angular velocity and 3-axis acceleration data.

Designed for exceptional reliability and environmental adaptability, this IMU can be customized through software for applications in intelligent driving, motion communication, mapping, stabilization platforms, and related fields.

Key Features

Three-axis digital gyroscope:
- ±250º/s dynamic range (500º/s optional)
- Zero bias stability: 10º/h (GJB, 10s typical), 6.0º/h (ALLAN typical)
Triaxial digital accelerometer:
- ±4g dynamic range (16g configurable)
- Zero-bias stability: 0.12 mg (GJB, 10s), 0.065 mg (ALLAN)
High reliability with MTBF > 20,000 hours
Maintains accuracy across full temperature range (-40℃ to 80℃) with built-in temperature calibration
Designed for operation in high-vibration environments
1-way UART interface

Applications

Intelligent driving systems
Motion communication
Mapping and surveying
Stabilization platforms

Technical Specifications

Parameter	Test Conditions	Min	Typical	Max	Unit
Gyroscope
Dynamic range			250	500	º/s
Zero bias stability	Allan variance		3.0		º/h
Zero bias stability	10s average (-40℃ to +80℃)		6.0		º/h
Zero bias range			±0.2		º/s
Zero bias variation (full temp)			±0.3		º/s
Scale factor accuracy			0.2		%
Scale factor nonlinearity			0.02		%FS
Bandwidth			80		Hz
Accelerometer
Dynamic range			4	16	g
Zero bias stability	Allan variance		0.065		mg
Zero bias stability	10s average (-40℃ to +80℃)		0.12		mg
Zero bias range			±3		mg
Zero bias change (full temp)			±6		mg
Scale factor accuracy			0.3		%
Scale factor nonlinearity			0.03		%FS
Bandwidth			80		Hz
Communication Interface
1-way UART	Baud rate		115.2	460.8	Kbps
Sampling frequency	UART	200	1000		Hz
Electrical Characteristics
Voltage		4.5	5	5.5	V
Power consumption				0.35	W
Ripple (P-P)				20	mV
Physical Characteristics
Dimensions			22.4×22.4×9.5		mm
Weight			16		g
Environmental Specifications
Operating temperature		-40		80	℃
Storage temperature		-45		85	℃
Vibration			20-2000Hz, 3g
Impact			1000g, 0.5ms
Reliability
MTBF			20000		h
Continuous operation			120		h

Note: Zero bias calculation for full temperature range assumes temperature change rate ≤1℃/min (-40℃ to +80℃)

Outline Drawing
