Honeywell HG4930 Replacement Inertial Measurement Unit IMU Sensor for UAV USV

Brand Name:	Firepower
Model Number:	HG4930C
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Inertial Mesurement Unit

Measuring Range (customizable):

±200°/s

Zero-bias Stability (@ Allan Variance):

0.2°/h

Zero-bias Error Over Full Temperature Range:

2.5°/h

Random Walk:

0.02°/√h

Zero-bias Repeatability:

1°/h

Scale Factor Nonlinearity:

100ppm

Bandwidth:

100Hz

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

UUT Type Turntable 3 Axis

Inertial Measurement Unit Turntable 3 Axis

Product Description

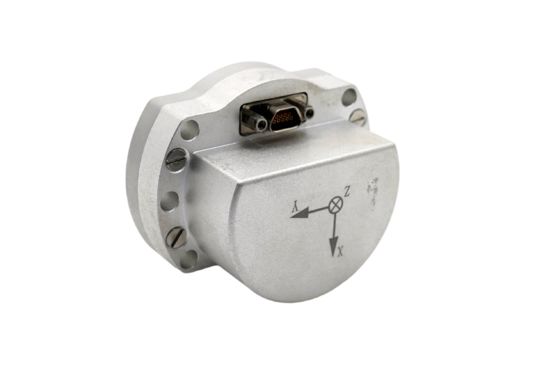

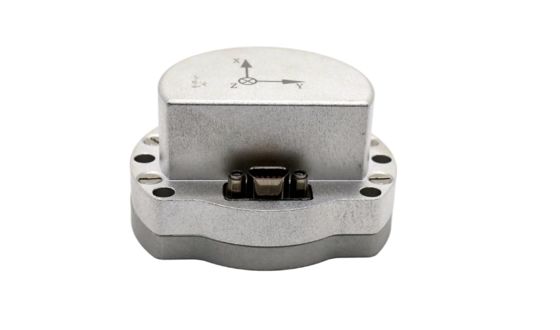

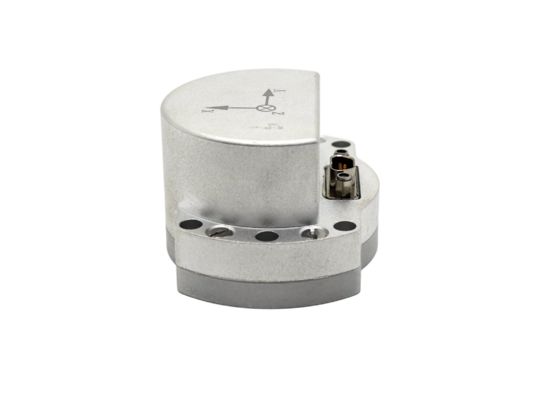

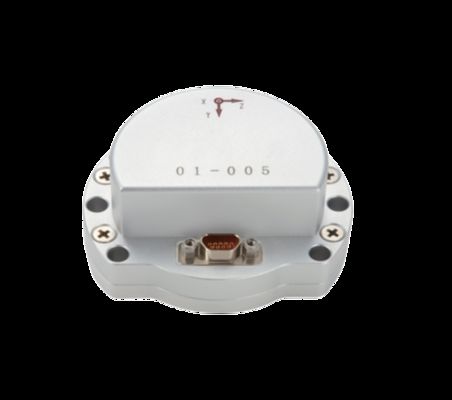

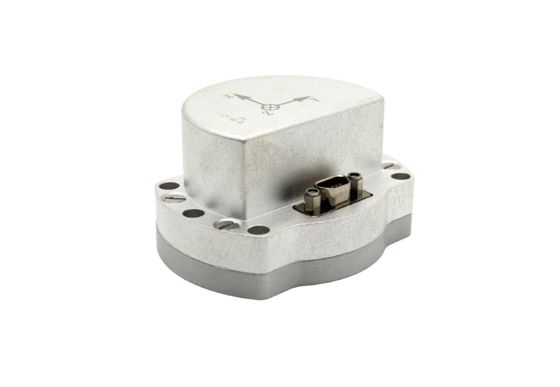

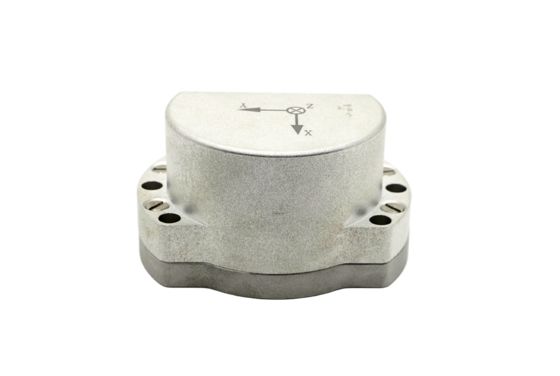

Honeywell HG4930 Replacement Inertial Measurement Unit (IMU) Sensor for UAV USV

The MEMS Inertial Measurement Unit (IMU) combines a three-axis gyroscope, three-axis accelerometer, temperature sensor, signal processing board, and supporting software. It measures three-axis angular rate, three-axis acceleration, and three-axis inclination angle, outputting compensated data (including temperature, misalignment, and nonlinear compensation) via RS-422 serial port.

Technical Specifications

Gyroscope Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Indicators

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
