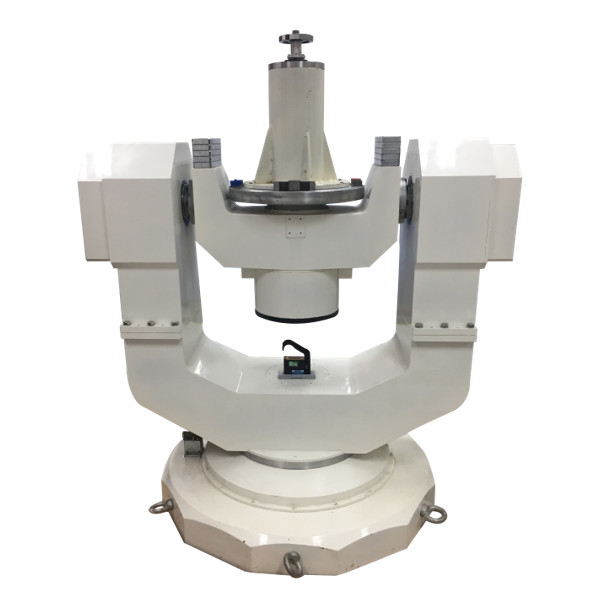

UUT Type Turntable 3 Axis For Inertial Measurement Unit detection

UUT Type Turntable 3 Axis For Inertial Measurement Unit detection
Features Gallery Product Description Request A Quote
Product Name: UUT Type Turntable
Load Diameter: 500 Mm × 500 Mm
Erpendicularity Of Three Axes: ± 5 ″
Angular Rate Range: Roll ± 0.001 °/s ~ 400 °/s
Angular Rate Accuracy: 5 × 10-5
Power Ring: 28 V, 10 A
High Light:

UUT Type Turntable 3 Axis


Inertial Measurement Unit Turntable 3 Axis

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 3ST-550
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T, L/C
Supply Ability: 1000/month
Product Description

UUT type turntable reliable rate sway position simulator test bench factory supply


I. Main uses and functions

The turntable is a table-type structure test equipment produced by our company, which can be used for the detection and test of inertial measurement unit, and can also be used for the calibration and measurement of two-dimensional rotation angle of other instruments.


2 Main technical indexes

2.1 Load weight: 30 Kg

2.2 Load size: diameter 500 mm × 500 mm;

2.3 Mechanical table structure: UUT

2.4 Three-axis intersection: within 0.25mm radius ball (machining guarantee)

2.5 Inclination rotation accuracy: rolling ± 5 ″

Pitch ± 5 ″

Bearing ± 5 ″

2.6 Perpendicularity of three axes: roll axis and pitch axis ± 5 ″

2.7 Positioning accuracy of three-axis angular position: ± 6 ″

2.8 Resolution of three-axis angular position measurement: 0.36 ″

2.9 Three-axis rotation range: three-axis continuous

2.10 Angular rate range: roll ± 0.001 °/s ~ 400 °/s

Pitch ± 0.001 °/s ~ 400 °/s

Azimuth ± 0.001 °/s-200 °/s

2.11 Angular rate accuracy: 5 × 10-5(360 ° average)

5 × 10-4(10 ° average)

5 × 10-3(1 ° average)

2.12 Angular rate stability: 5 × 10-5(360 ° average)

5 × 10-4(10 ° average)

5 × 10-3(1 ° average)

2.13 Maximum angular acceleration: roll 200 °/s2

Pitch 200 °/s2

Bearing 100 °/s2
