6-Axis IMU with 3-Axis Accelerometer Gyroscope Stim300 Replacement

Brand Name:	Firepower
Model Number:	IMU6-1
MOQ:	1
Price:	2000$
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Gyroscope Range:

±400°/s

In-Run Bias Stability:

0.3°/h

Bias Stability @10s (10s Smooth, 1σ, Room Temperature):

3°/h

Bias Stability In Full Temperature:

10°/h

Angular Random Walk:

0.15°/√h

Bias Repeatability:

1°/h

3 DB Bandwidth:

250Hz

Voltage:

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Electric 3 Axis Turntable

3 Axis Turntable Three Shaft

3 Axis Turntable Table Type

Product Description

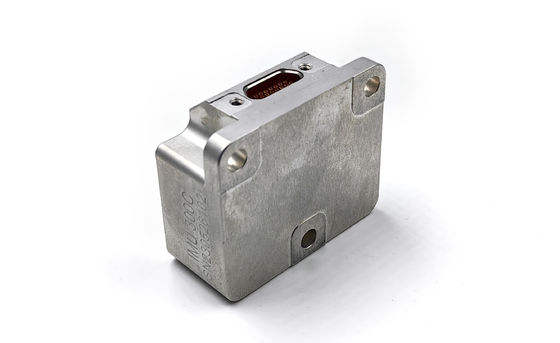

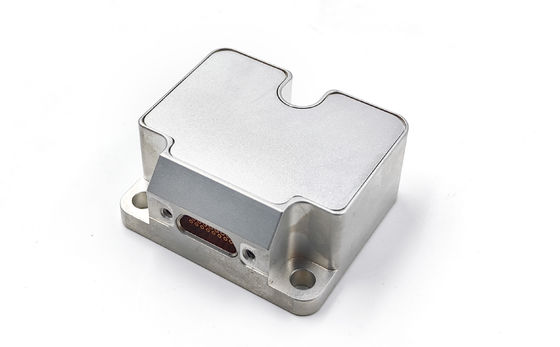

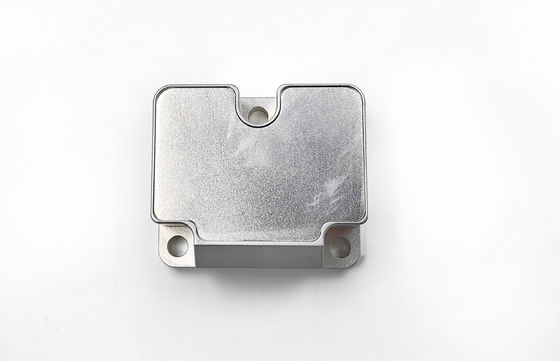

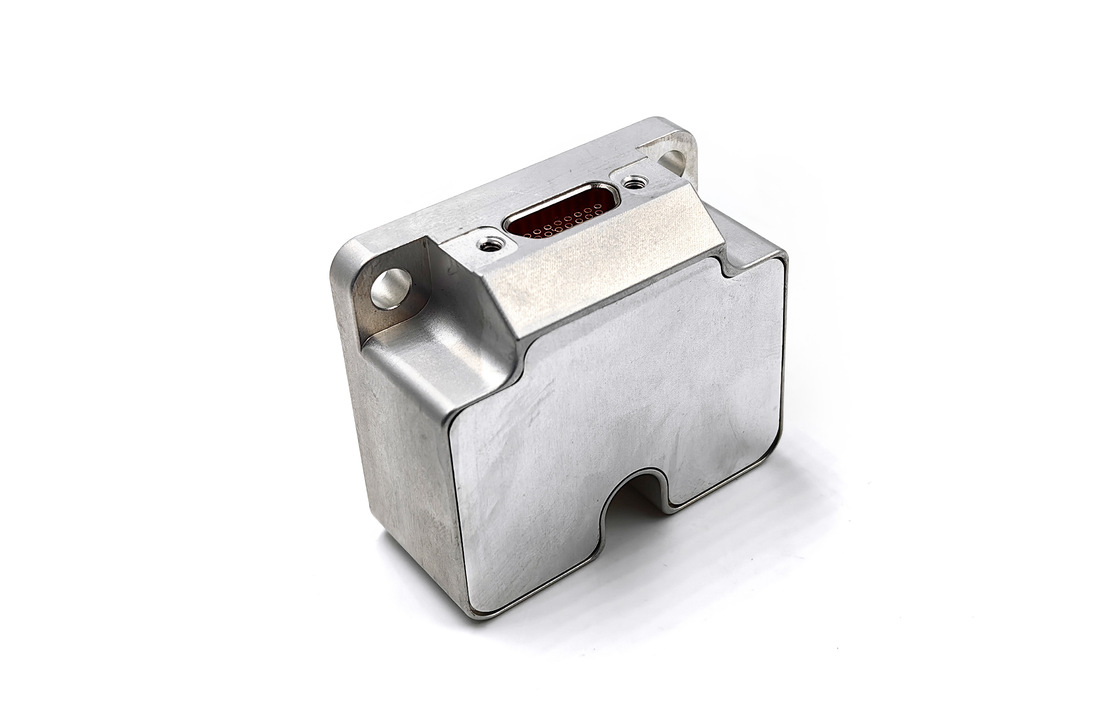

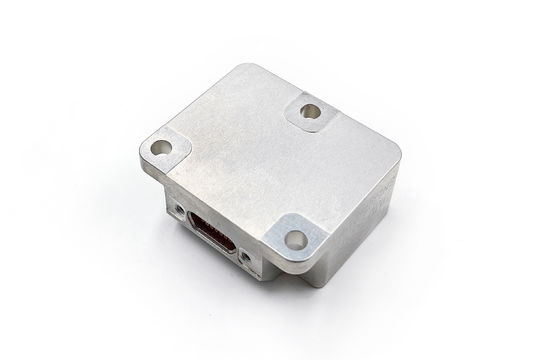

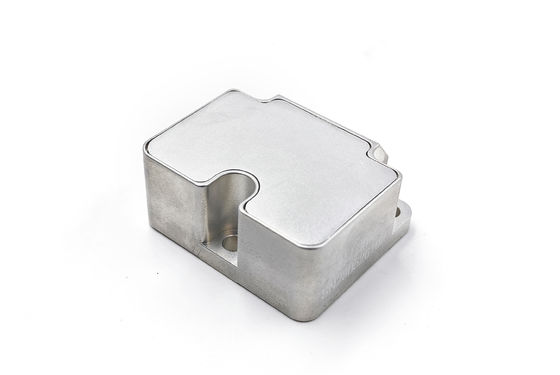

6-Axis IMU with 3-Axis Accelerometer Gyroscope Stim300 Replacement

Product Feature

This MEMS inertial measurement unit integrates:

Three-axis gyroscope
Three-axis accelerometer
Three-axis inclination angle sensor
Temperature sensor
Signal processing board

The unit measures three-axis angular rate, acceleration, and inclination angle of a carrier. It outputs compensated gyro, accelerometer, and inclination data through an RS-422 serial port using a defined communication protocol. Compensation includes temperature, installation misalignment angle, and nonlinear factors.

Main Technical Parameters

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A	IMU6-1B	IMU6-1C
Measuring range (customizable)	°/s	±400	±400	±400	±2000
In-Run Bias Stability(@ Allan variance)	°/h	0.3	0.1	0.05	1
Bias stability @10s (10s smooth, 1σ, room temperature)	°/h	3	1	0.5	6
Bias stability in full temperature	°/h	10	3	2	18
Angular Random Walk	°/√h	0.15	0.1	0.02	0.3
Bias repeatability (1σ)	°/h	1	0.5	0.3	2
Bias acceleration sensitivity	°/h/g	1	1	1	2
Scale Factor Non-Linearity(1σ)	ppm	150	150	150	300
Scale Factor Repeatability (1σ)	ppm	20	20	20	100
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	250	200	150	250

Accelerometer Technical Indicators

Parameter	Unit	IMU6-1y-1	IMU6-1y-2	IMU6-1y-3	IMU6-1y-4
Measuring range (customizable)	g	±10	±30	±50	±80
In-Run Bias Stability (Allan Variance @ 25 ℃)	mg	0.02	0.05	0.1	0.2
Bias stability @10s	mg	0.05	0.2	0.5	1
Bias stability in full temperature	mg	1	3	5	15
Angular Random Walk	m/s/√h	0.001	0.002	0.005	0.01
Bias repeatability(1σ)	mg	0.1	0.5	1	2
Scale Factor Repeatability (1σ)	ppm	200	200	200	200
Scale Factor Non-Linearity(1σ)	ppm	50	100	200	300
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	100	100	100	100

Tilt Angle Specification (Optional)

Parameter	Unit	IMU6-1y-x
Measuring range (customizable)	g	±1.7
Bias stability (1s smoothing)	mg	0.5
Random walk	m/s/√h	0.08
Scale factor non-linearity	ppm	100

Electrical Characteristics

Parameter	Unit	IMU6-1y-x
Voltage	V	5
Power consumption	W	2
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	IMU6-1y-x
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105
Vibration	--	10~2000Hz,6.06g
Impact	--	1000g,0.1ms

Other Specifications

Parameter	Unit	IMU6-1y-x
Weight	g	55±5

Outline Drawing
