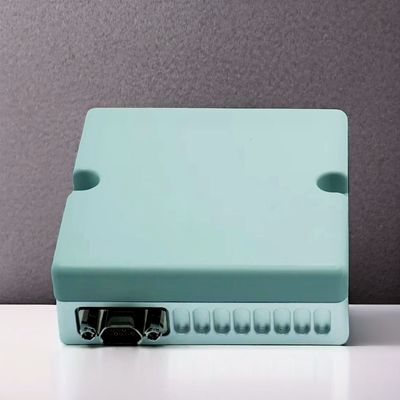

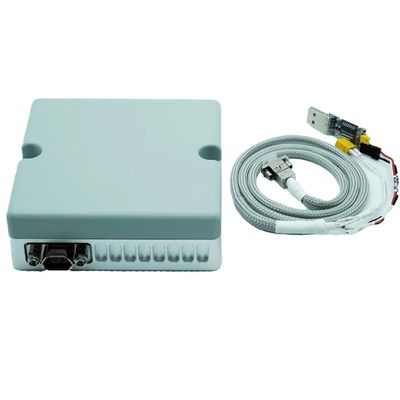

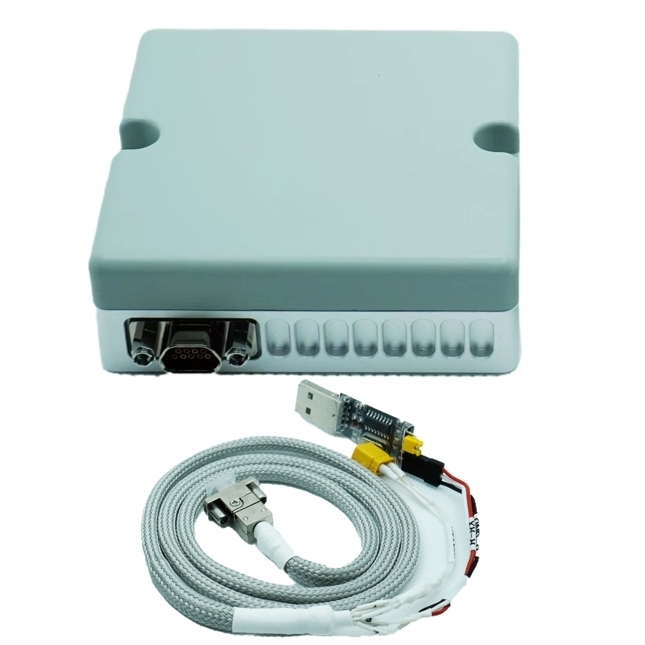

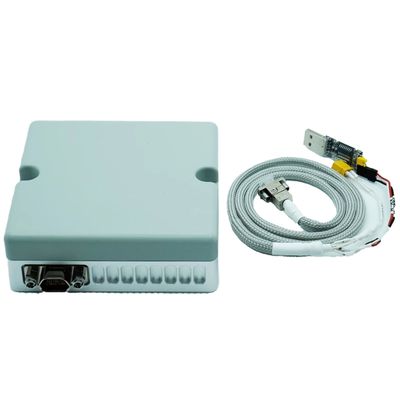

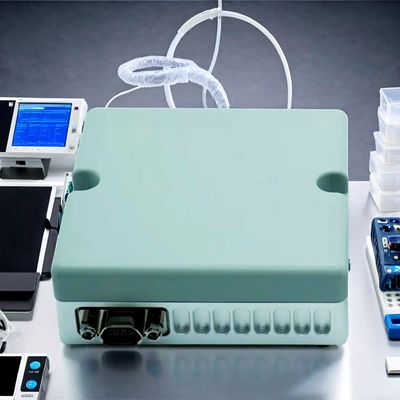

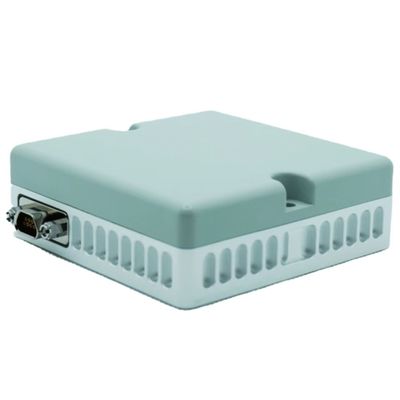

Compact UAV Anti-Jamming GNSS GPS L1/L2 Antenna

Name: Compact UAV Anti-Jamming GNSS GPS L1/L2 Antenna
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: ANTI-100
Price: 1000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	ANTI-100
MOQ:	1
Price:	1000$
Payment Terms:	T/T,L/C
Supply Ability:	500pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Anti-interference Intelligent Navigation Terminal

Unidirectional Interference:

Better Than 85dBc

Multi-directional Interference:

better Than 65dBc

Anti-jamming Airspace:

Azimuth: 0 ° ~ 360, Elevation: -90 ° ~ 90 °

Dimension:

66x66x22mm

Weight:

< 150g

Packaging Details:

carton with sponge

Supply Ability:

500pcs

Highlight:

INS Test 3 Axis Turntable

3 Axis Turntable UUT Type

3 Axis Turntable 30Kg

Product Description

Compact UAV Anti-Jamming GNSS GPS L1/L2 Antenna

Product Introduction

The ANTI-100 model provides reliable navigation for small UAVs and other applications. It protects platforms from unintentional interference and malicious attacks while significantly enhancing PNT (Positioning, Navigation, and Timing) information security.

Key Features

Advanced anti-spoofing capability
Jamming power detection for calibration and system testing
Supports secondary development for spectrum monitoring and histogram analysis
4-array element single-frequency anti-jamming (B1, L1, E1 frequency points)
Built-in navigation module outputs positioning data via NMEA0183 protocol

Technical Specifications

Anti-Interference Capability	Unidirectional interference: >85dBc Multi-directional interference: >65dBc
Interference Types	Spoofing jamming Band-limited white Gaussian interference Spread spectrum matched spectrum interference Pulse jamming and sweep jamming Mixed interference
Anti-Jamming Coverage	Azimuth: 0°-360°, Elevation: -90°-90°
Dimensions	66mm × 66mm × 22mm (±0.5mm tolerance)
Power Consumption	7W (including positioning module at normal temperature)
Weight	<150g

Installation Guidelines

66mm × 66mm × 22mm installation requires mounting holes at the base. The unit is secured to the platform carrier through two through holes.

Installation Note: Pay attention to radome orientation. When mounted on platform carriers, ensure wave-transparent material is used above the product.
