Product Name: UUT Type Turntable
Load Diameter: 500 Mm × 500 Mm
Erpendicularity Of Three Axes: ± 6 ″
Angular Rate Range: Roll ± 0.001 °/s ~ 400 °/s
Angular Rate Accuracy: 5 × 10-5
Power Supply: 220V ± 10%
High Light:

INS Test 3 Axis Turntable

,

3 Axis Turntable UUT Type

,

3 Axis Turntable 30Kg

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 3ST-500
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T, L/C
Supply Ability: 1000/month
Product Description

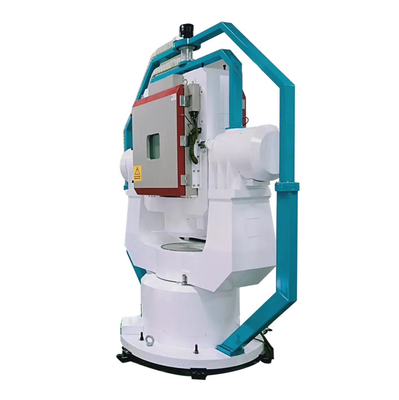

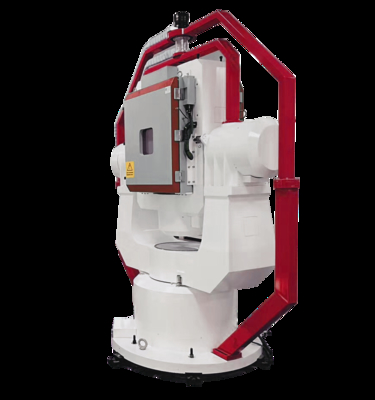

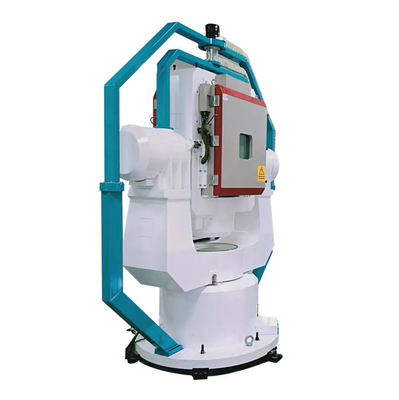

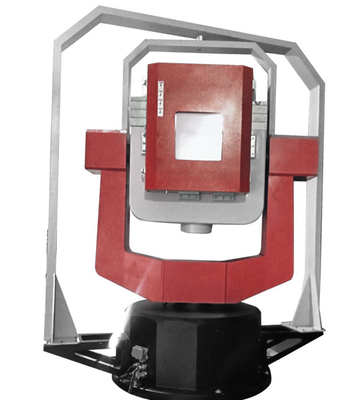

triaxial simulator with thermal chamber 3 axes INS test system



Main technical indexes

2.1 Load weight: 30 Kg

2.2 Load size: diameter 500 mm × 500 mm;

2.3 Mechanical table structure: UUT

2.4 Three-axis intersection: within 0.25mm radius ball (machining guarantee)

2.5 Inclination rotation accuracy: rolling ± 5 ″

Pitch ± 5 ″

Bearing ± 5 ″

2.6 Perpendicularity of three axes: roll axis and pitch axis ± 5 ″

2.7 Positioning accuracy of three-axis angular position: ± 6 ″

2.8 Resolution of three-axis angular position measurement: 0.36 ″

2.9 Three-axis rotation range: three-axis continuous

2.10 Angular rate range: roll ± 0.001 °/s ~ 400 °/s

Pitch ± 0.001 °/s ~ 400 °/s

Azimuth ± 0.001 °/s-200 °/s

2.11 Angular rate accuracy: 5 × 10-5(360 ° average)

5 × 10-4(10 ° average)

5 × 10-3(1 ° average)

2.12 Angular rate stability: 5 × 10-5(360 ° average)

5 × 10-4(10 ° average)

5 × 10-3(1 ° average)

2.13 Maximum angular acceleration: roll 200 °/s2

Pitch 200 °/s2

Bearing 100 °/s2



2.17 Power Supply

A) Three-phase four-wire, 380V ± 10%, 50 Hz ± 3%

B) Single phase, 220V ± 10%, 50HZ ± 3%

2.18 Working conditions

A) Operating temperature: 20 ± 10 ℃;

B) Relative humidity: ≤ 50% (30 ℃);

C) Grounding resistance of ground wire is less than 2Ω;

D) with seismic isolation foundation;

E) There is no strong electromagnetic interference around.



Main uses and functions

The turntable is a table-type structure test equipment produced by our company, which can be used for the detection and test of inertial measurement unit, and can also be used for the calibration and measurement of two-dimensional rotation angle of other instruments.
