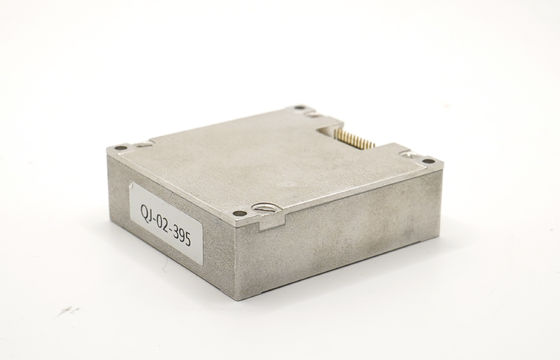

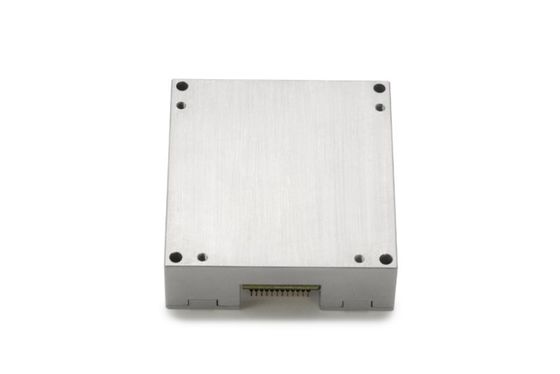

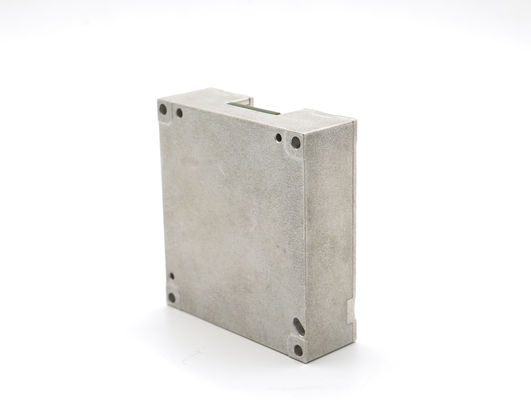

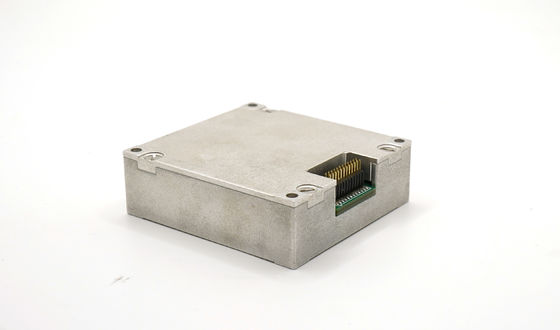

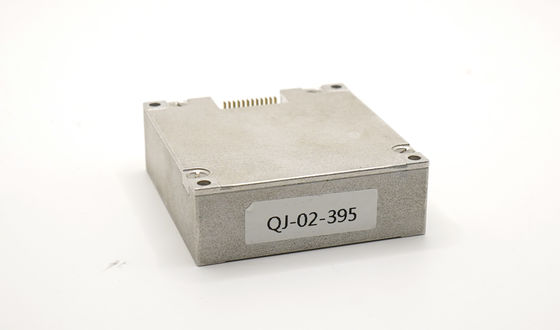

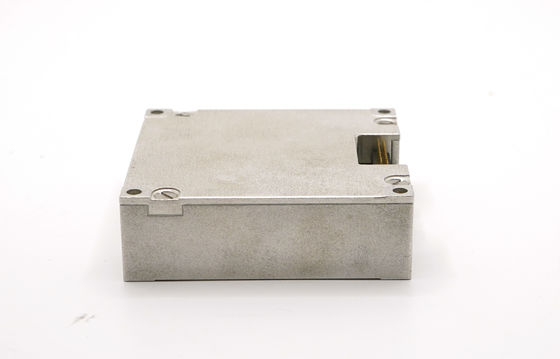

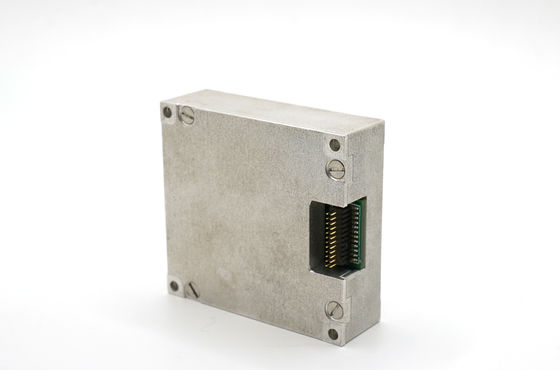

10-Axis Inertial Measurement Unit IMU with 3-Axis Accelerometer Gyroscope Magnetometer and Barometer

Name: 10-Axis Inertial Measurement Unit IMU with 3-Axis Accelerometer Gyroscope Magnetometer and Barometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HB
Price: 600 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HB
MOQ:	1
Price:	600$
Payment Terms:	L/C,T/T
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Gyroscope Range:

500/2000 °/s

Z-axis:

0.8°/h

X And Y Axis:

1.6°/h

Accelerometer Range:

16/200g

Zero Bias Stability:

0.06 Mg

Speed Random Walk:

0.029m/s/ √hr

Size:

47×44×14mm

Weight:

50g

Packaging Details:

wooden box

Supply Ability:

500

Highlight:

8.5kg 3 Axis Motion Simulator

Temperature Chamber 3 Axis Motion Simulator

8.5kg three axis motion simulator

Product Description

10-Axis Inertial Measurement Unit (IMU)

High-performance MEMS-based IMU with 3-axis accelerometer, gyroscope, magnetometer, and barometer for precision motion sensing in demanding environments.

Product Overview

The 16488HB is an advanced inertial measurement unit utilizing micro-mechanical (MEMS) technology, featuring integrated high-performance MEMS gyroscope and accelerometer components. It provides precise measurement of 3 angular velocities and 3 accelerations with exceptional reliability and environmental adaptability.

With configurable software options, this IMU is ideal for unmanned vehicles, mobile communications, surveying, and stabilization applications.

Key Features

Three-axis digital gyroscope:
- ±2000º/s dynamic measurement range
- Zero bias stability: 3°/h (GJB, 10S, Z-axis), 0.8°/h (ALLAN, Z-axis)
Triaxial digital accelerometer:
- ±200g dynamic measurement range
- Zero bias stability: 0.4mg (GJB, 10S), 0.06mg (ALLAN)
Triaxial digital magnetometer: 2.5gauss range
Digital barometer: 300mbar to 1100mbar range
High reliability: MTBF 20,000 hours
Full temperature range accuracy: -40℃ to +80℃ with built-in temperature calibration
Vibration resistant: 6.06G, 20-2000Hz operation
Shock resistant: 1000G, 0.5ms impact tolerance

Applications

Unmanned motion carriers
Mobile communication systems
Surveying and mapping equipment
Stabilization platforms

Technical Specifications

Parameter	Test Conditions	Min	Typical	Max	Unit
Gyroscope
Dynamic measuring range		500		2000	°/s
Zero bias stability	Allan variance, Z-axis		0.8		°/h
Zero bias stability	Allan variance, X/Y axis		1.6		°/h
Zero bias stability	10s average (-40℃~+70℃), Z-axis		3		°/h
Zero bias stability	10s average (-40℃~+70℃), X/Y axis		6		°/h
Accelerometer
Dynamic measuring range		16		200	g
Zero bias stability	Allan variance		0.06		mg
Zero bias stability	10s average (-40℃~+70℃)		0.4		mg
Electrical Characteristics
Voltage		3.0	3.3	3.6	V
Power consumption				1.5	W
Physical Characteristics
Dimensions			474414		mm
Weight			50		g

Notes:
1. Zero deviation calculated with temperature change rate ≤1℃/min (-40℃~+70℃)
2. Vibration condition: 6.06G, 20Hz-2000Hz
