System Name: Triaxial Position Rate Motion Simulator
Load Capacity: 8.5kg
Object Size: 353mm X 164mm X 216mm
Three Axis Intersection: Ø0.5mm Radius Ball
Axis Perpendicularity: <±30’’
Working Mode: Position, Speed, Servo, Track
Weight: About 400kg
High Light:

8.5kg 3 Axis Motion Simulator

,

Temperature Chamber 3 Axis Motion Simulator

,

8.5kg three axis motion simulator

Basic Infomation
Place of Origin: China
Brand Name: avic
Model Number: 3TF-81A
Payment & Shipping Terms
Packaging Details: wooden box
Payment Terms: L/C, T/T
Supply Ability: 1 pcs/6 month
Product Description

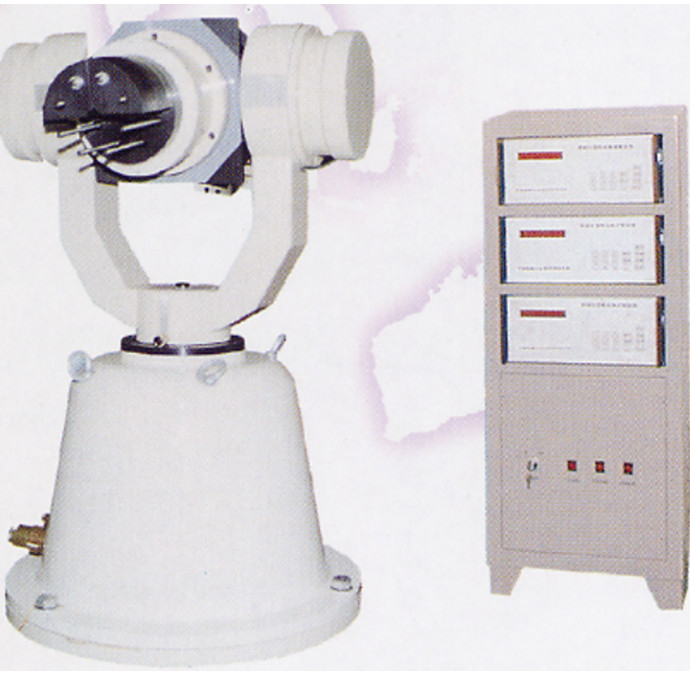

triaxial position rate motion simulator table with temperature control chamber



3TF-81A is connected with image guide information processor, the information processor outputs target heading, pitch error signal to drive turntable track appointed target. 3TF-81A could receive control signal sent by microcomputer to perform side rolling motion, simulating the flight posture change of missile in air.



Load capacity 8.5kg(visible light, infrared camera)
Max measured object size 353mm x 164mm x 216mm
Rotary angle range Heading: ±135°, pitch: -30°~60°, side roll:±80 °
Three axis intersection Ø0.5mm radius ball
axis perpendicularity <±30’’
Working mode Position, speed, servo, track
Weight About 400kg
size About 800 x 1300mm
Control cabinet 19’’ standard cabinet, height: 1600mm





Performance index

Angular position measure accuracy ±1’
Angular position measure resolution 0.3’
Angular position measure repeatability ±0.5’
Speed range 0.05°/s~±50°/s
Max acceleration 100°/s2
Control system bandwidth 6Hz(phase displacement at 10°, when amplitude value difference proportion<10%)
