Product Description

INS IMU Navigation Vibration Sensor, Inertial Quartz Flexure Accelerometer

Product Overview

The quartz flexible accelerometer is a high-precision military inertial navigation grade accelerometer with exceptional long-term stability, repeatability, start-up performance, environmental adaptability, and reliability. Suitable for both static and dynamic testing, it serves as a standard vibration sensor.

The product's output current maintains a linear relationship with the applied force or acceleration. Users can select appropriate sampling resistors to achieve high-precision output. An optional built-in temperature sensor enables compensation of offset values and scale factors to minimize environmental temperature effects.

Key Specifications

Attribute	Value
Function	vibration test
Bias K0/K1	≤±3mg
Threshold	5μg
Scale factor K1	1.05~1.30 mA/g
Second order nonlinearity coefficient K2	≤±10μg /g2
Weight	≤80g

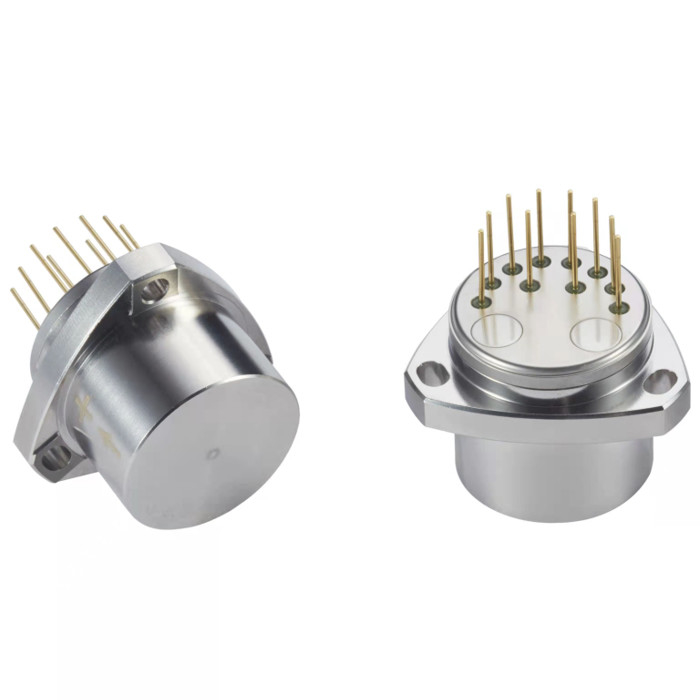

Product Image

Performance Characteristics

No.	Parameters	JB01-1	JB01-02	JB01-03
1	Range	±50g	±50g	±50g
2	Threshold	5μg	5μg	5μg
3	Bias K0/K1	≤±3mg	≤±3mg	≤±5 mg
4	Scale factor K1	1.05~1.30 mA/g	1.05~1.30 mA/g	1.05~1.30 mA/g
5	Second order nonlinearity coefficient K2	≤±10μg /g2	≤±15μg /g2	≤±20μg /g2
6	0g 4 hours short-term stability	≤10 μg	≤15 μg	≤20 μg
7	1g 4 hours short-term stability	≤10 ppm	≤15 ppm	≤20 ppm
8	Bias comprehensive repeatability σK0 (1σ,1 month)	≤10 μg	≤20 μg	≤30 μg
9	Scale factor comprehensive repeatability σK1/K1 (1σ,1 month)	≤15ppm	≤30 ppm	≤50 ppm
10	Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month)	≤±10 μg /g2	≤±20 μg /g2	≤±30 μg /g2
11	Bias thermal coefficient (full temp. mean)	≤±10 μg /℃	≤±30 μg /℃	≤±50 μg /℃
12	Scale factor thermal coefficient (full temp. mean)	≤±10 ppm /℃	≤±30 ppm /℃	≤±50 ppm /℃
13	Noise (sampling resistance 840Ω)	≤5mv	≤8.4mv	≤8.4mv
14	Natural frequency	400~800 Hz	400~800 Hz	400~800 Hz
15	Bandwidth	800~2500 Hz	800~2500 Hz	800~2500 Hz
16	Random vibration	6g(20-2000Hz)	6g(20-2000Hz)	6g(20-2000Hz)
17	Impact	100g,5ms,1/2sin	100g,5ms,1/2sin	100g,5ms,1/2sin
18	Working temp.	-55~+85℃	-55~+85℃	-55~+85℃
19	Store temp.	-60~+120℃	-60~+120℃	-60~+120℃
20	Power supply	±12~±15V	±12~±15V	±12~±15V
21	Consume current	≤±20mA	≤±20mA	≤±20mA
22	Thermal sensor	Customizable	Customizable	Customizable
23	Size	Ф25.4X30mm	Ф25.4X30mm	Ф25.4X30mm
24	Weight	≤80g	≤80g	≤80g

Applications

Drilling Inclination Measurement
Aeronautics Astronautics
Instruments Inertial Equipment

Key Features

High resolution
High stability
High accuracy
Low power consumption
Excellent overload capacity
Compact size
Cost-effective
Broad measurement range

Product Dimensions

Documentation

Product Documentation
