Navigation System Inertial Accelerometer , High Precision Quartz Vibration Sensor

1
MOQ
1260
Price
Navigation System Inertial Accelerometer , High Precision Quartz Vibration Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Inertial Measurement Accelerometer
Natural Frequency: 400~800 Hz
Working Temp.: -55~+85℃
Weight: ≤80g
Size: Ф25.4X30mm
Thermal Sensor: Optional
High Light:

Navigation System Inertial Accelerometer

,

Low Lag Quartz Vibration Sensor

,

Inertial Navigation Accelerometer

Basic Infomation
Place of Origin: China
Brand Name: avic
Certification: CE
Model Number: JB2-01
Payment & Shipping Terms
Packaging Details: sponge/box
Delivery Time: 1 week for sample
Payment Terms: T/T
Supply Ability: 500/month
Product Description

inertial measurement accelerometer , high-precision vibration quartz sensor , inertial navigation system accelerometer

Features

  • Low lag
  • High resolution
  • High stability
  • High accuracy
  • Low power
  • Excellent overload capacity
  • Small volume
  • Low cost
  • Broad measurement range



The output current of the product has a linear relationship with the force or acceleration received, and the user can select an appropriate sampling resistor through calculation to achieve high-precision output. A temperature sensor can be built-in according to user needs, which can be used to compensate the offset value and scale factor to reduce the influence of ambient temperature.



Application fields: inertial measurement of military high-precision inertial navigation systems in aerospace, aviation, ships, weapons and other fields and vibration isolation testing of precision instruments and equipment.



JB2 series quartz flexible accelerometer is a high-precision, large-range (up to 100g) military inertial navigation grade accelerometer product with excellent long-term stability, repeatability, startup performance, environmental adaptability and high reliability. It can be used for static testing as well as dynamic testing, and it is also a standard vibration sensor.



Applications

  1. Drilling and Inclination Measurement
  2. Aeronautics and Astronautics
  3. Instruments and Equipment



Performance Characteristics

No. Parameters JB2
1 Range ±70g
2 Threshold 5μg
3 Bias K0/K1 ≤±5 mg
4 Scale factor K1 0.8~1.5 mA/g
5 Second order nonlinearity coefficient K2 ≤±20μg /g2
6 0g 4 hours short-term stability ≤20 μg
7 1g 4 hours short-term stability ≤20 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤30 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤50 ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±30 μg /g2
11 Bias thermal coefficient (full temp. mean) ≤±50 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±50 ppm /℃
13 Noise (sampling resistance 840Ω) ≤5mv
14 Natural frequency 400~800 Hz
15 Bandwidth 800~2500 Hz
16 Random vibration 6g(20-2000Hz)
17 Impact 100g,5ms,1/2sin
18 Working temp. -55~+85℃
19 Store temp. 60~+120℃
20 Power supply ±12~±15V
21 Consume current ≤±20mA
22 Thermal sensor Customizable
23 Size Ф25.4X30mm
24 Weight ≤80g

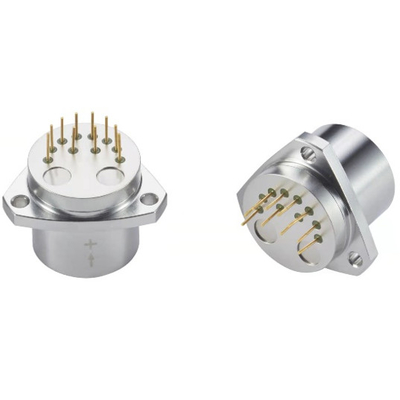

Product show

Navigation System Inertial Accelerometer , High Precision Quartz Vibration Sensor 0

Dimensions

Navigation System Inertial Accelerometer , High Precision Quartz Vibration Sensor 1

Quality assurance

  1. Every production process has a special person to test to ensure quality
  2. Have professional engineers to check the quality
  3. All products have passed all test before leave factory


We have 1 years warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
