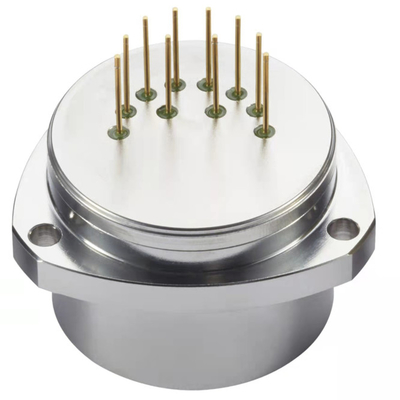

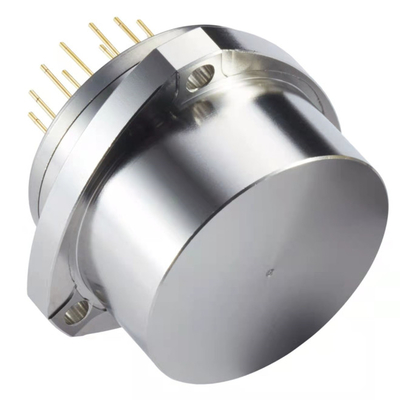

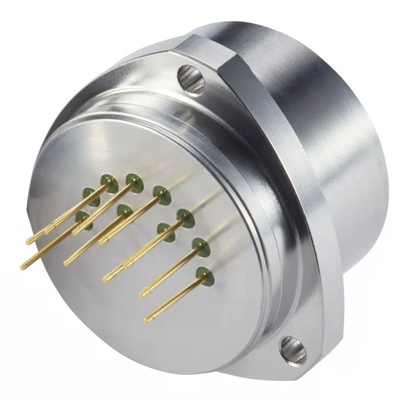

Navigation Accelerometer Single Axis Quartz Acceleration Meter Flexure Vibration Meter Inertial Vibratory Sensor
Introduction
The product adopts unique miniaturization, high temperature and seismic design, advanced packaging technology and special circuits.
The flow is proportional to the input acceleration, and the user can select a suitable sampling resistor by calculation to achieve a high-precision output. And
Built-in temperature sensor according to user needs, which can be used to compensate for offset value and scale factor to reduce the impact of ambient temperature.
Application areas: oil drilling inclination measurement and vibration isolation testing of precision instruments.
Features
Index Table
| No. | Parameters | JB4-1 | JB4-2 | JB4-3 |
| 1 | Range | ±30g | ±30g | ±30g |
| 2 | Bias K0/K1 | ＜10mg | ＜40mg | ＜40mg |
| 3 | Bias comprehensive repeatability σK0 (1σ,1 month) | ＜50µg | ＜250µg | ＜250µg |
| 4 | Thermal coefficient | ＜50µg/℃ | ＜150µg/℃ | ＜150µg/℃ |
| 5 | Scale factor K1 | 1.1～1.4 mA/g | 1.1～1.4 mA/g | 1.1～1.4 mA/g |
| 6 | Scale factor monthly comprehensive repeatability σk1/k1 (1σ, 1 month) | ＜80 ppm | ＜250 ppm | ＜250 ppm |
| 7 | Bias thermal coefficient (full temp. mean) | ＜100ppm | ＜200ppm | ＜200ppm |
| 8 | Installation error | ＜1500µrad | ＜1500µrad | ＜1500µrad |
| 9 | Vibration | ＜100µg/g 2rms (50-500Hz) | ＜100µg/g 2rms (50-500Hz) | ＜100µg/g 2rms (50-500Hz) |
| 10 | Noise | ＜3000µg-rms (0-10000Hz) | ＜3000µg-rms (0-10000Hz) | ＜3000µg-rms (0-10000Hz) |
| 11 | Working temp. | -55～96℃ | -55～125℃ | -55～180℃ |
| 12 | Impact | 500 g 0.5ms | 1000 g 0.5ms | 1000 g 0.5ms |
| 13 | Sinusoidal vibration | 25 g @30-500Hz | 25 g @30-500Hz | 25 g @30-500Hz |
| 14 | Resolution | ＜10µg | ＜10µg | ＜10µg |
| 15 | Bandwidth | ＞300 Hz | ＞300 Hz | ＞300 Hz |
| 16 | Consume current | ＜20 mA | ＜20 mA | ＜20 mA |
| 18 | Power dissipation @ ±15VDC | ＜480 mW | ＜480 mW | ＜480 mW |
| 19 | Input voltage | ±13 to ±18V | ±13 to ±18V | ±13 to ±18V |
| 20 | Weight | ＜65g 55nominal | ＜65g | ＜65g |
| 21 | Mounting diameter | Ф25mm1.0inches | Ф25mm | Ф25mm |
| 22 | Height | ＜21.5mm | ＜21.5mm | ＜21.5mm |
| 23 | Shell material | 300 Series stainless steel | 300 Series stainless steel | 300 Series stainless steel |
Dimension
JB4 quartz flexure accelerometer inertial navigati...
