High Resolution Quartz Flexure Accelerometer Current Output 1 Axis Inertial Acceleration Meter



JB1 accelerometer family utilizes unique quartz flexible sensors. The high-accuracy accelerometer is designed for measurement of Inertial accelerations in aerospace environment,It is the predominant sensor used in china’s commercial and military aircraft strap-down inertial navigation systems.The long-term Repeatability and superior reliability characteristics of the JB1 make it the best value inertial-grade accelerometer available on the market today.

JB1 features a patented Q-flex& etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment repeatability.

The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurement. By use of customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

The JB1 also includes a current-output, internal temperature sensor. By applying temperature-compensating algorithms, bias, scale factor, and axis misalignment performance are dramatically improved.



Features

1. Excellent turn-on repeatability performance

2. Environmentally rugged

3. Analog output

4. Field adjustable range

5. Three fastener precision mounting flange

6. Internal temperature sensor for thermal compensation(option)



Performance Characteristics



No. Parameter JB1-01 JB1-02
1 measuring range ±50g ±50g
2 Threshold value 5μg 5μg
3 Deviation value k0/k1 ≤(±3 mg) ≤(±5 mg)
4 Scale factor k1 1.3±0.2 mA/g 1.3±0.2 mA/g
5 Second-order nonlinear coefficient K2 ≤±20μg /g2 ≤±30μg /g2
6 0g 4 h short-term stability ≤10 μg ≤20 μg
7 1g 4 h short-term stability ≤10 ppm ≤20 ppm
8 Deviation value Comprehensive repeatability σk0 (1σ,1 month) ≤10 μg ≤30 μg
9 Scale factor Comprehensive repeatabilityσk1/k1 (1σ,1 month) ≤15ppm ≤30 ppm
10 Nonlinear coefficient Comprehensive repeatabilityσk2/k1(1σ,1 month) ≤±10 μg /g2 ≤±20 μg /g2
11 Deviation value Temperature Coefficient ≤±20 μg /℃ ≤±30 μg /℃
12 Scale factor Temperature Coefficient ≤±20 ppm /℃ ≤±30ppm /℃
13 noise(Sampling resistance is 840Ω) ≤5mv ≤8.4mv
14 Natural frequency 400~800 Hz 400~800 Hz
15 bandwidth 800~2500 Hz 800~2500 Hz
16 vibration 5g(20-2000Hz) 5g(20-2000Hz)
17 Shock 100g,5ms,1/2sin 100g,5ms,1/2sin
18 Operating temperaturemeasuring range -40-+85℃ -40-+85℃
19 storage temperaturemeasuring range -60-+120℃ -60-+120℃
20 power supply ±12~±15V ±12~±15V
21 Current consumption ≤±20mA ≤±20mA
22 Tempe Sensor Yes and No two type Yes and No two type
23 size Ф25.4X30mm Ф25.4X30mm
24 weight ≤80g

≤80g



Product show

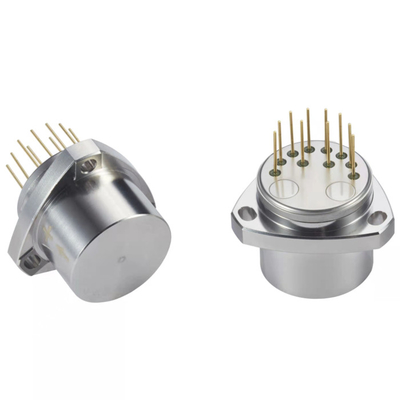

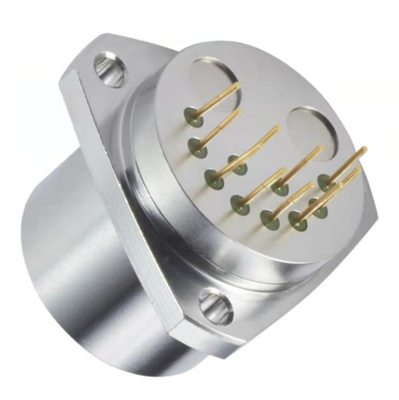

High Resolution Quartz Flexure Accelerometer Current Output 1 Axis 0

Dimensions

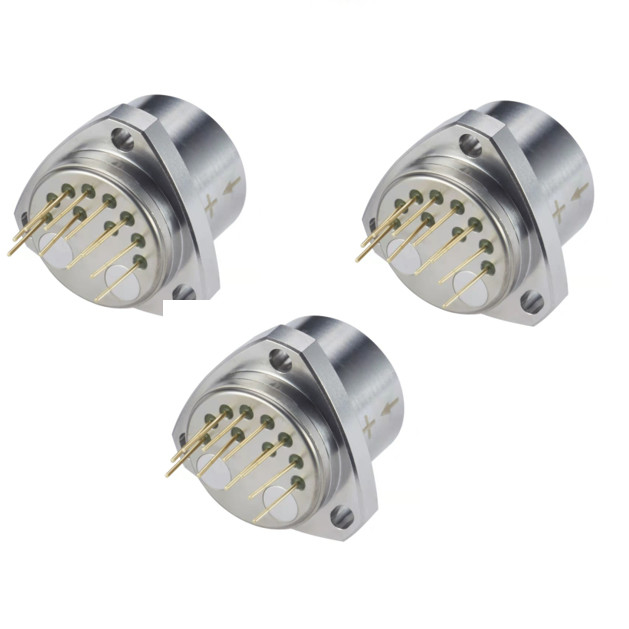

High Resolution Quartz Flexure Accelerometer Current Output 1 Axis 1
