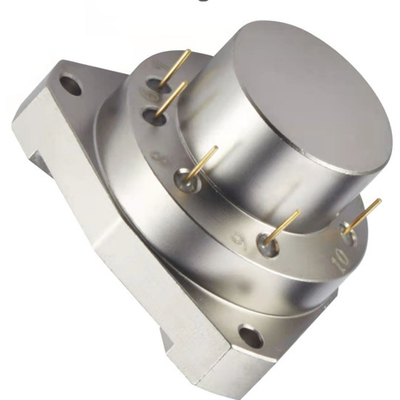

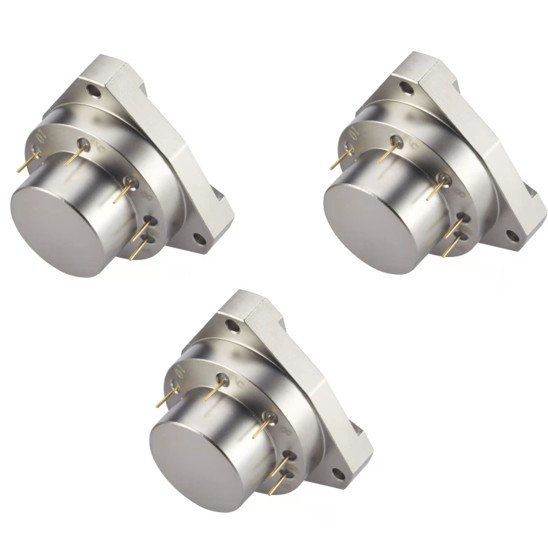

Quartz Flexure Seismic Accelerometer Amorphous Quartz For Inertial Navigation

1
MOQ
600~1300
Price
Quartz Flexure Seismic Accelerometer Amorphous Quartz For Inertial Navigation
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Conponents In INS
Range: 60g
Resolution: 5μg
Power: ±12~±15V
Size: Ф18.2X23mm
Weight: 30gram
Highlight:

Quartz Flexure Seismic Accelerometer

,

Amorphous Quartz Vibration Meter

,

Inertial Navigation Dynamic Accelerometer

Basic Infomation
Place of Origin: China
Brand Name: Firepower
Certification: CE
Model Number: JB3-02
Payment & Shipping Terms
Packaging Details: sponge+ box
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 500/month
Product Description

Quartz-Flexure Seismic Accelerometer Amorphous Quartz Vibration Meter Dynamic Accelerometer For Inertial Navigation

Description
JB3 features a patented Q-flex& etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment repeatability.
The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurement. By use of customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

Features

1. Excellent turn-on repeatability performance

2. Environmentally rugged

3. Analog output

4. Field adjustable range

5. Smaller outline size(£30gram)



Index Table





Parameter

JB3-01

JB3-02

JB3-03

1

measuring range

±60g

±60g

±60g

2

Threshold value

10μg

10μg

10μg

3

Deviation value k0/k1

≤(±10 mg)

≤(±10 mg)

≤(±10 mg)

4

Scale factor k1

1.2±0.2 mA/g

1.2±0.2 mA/g

0.5~0.7mA/g

5

Second-order nonlinear coefficientK2

≤±20μg /g2

≤±30μg /g2

≤±20μg /g2

6

0g 4 h short-term stability

≤20 μg

≤30 μg

≤20 μg

7

1g 4 h short-term stability

≤20 ppm

≤30 ppm

≤20 ppm

8

Deviation valueComprehensive repeatability
σk0  (1σ,1 month)

≤40 μg

≤80 μg

≤40 μg

9

Scale factorComprehensive repeatability
σk1/k1 (1σ,1 month)

≤50ppm

≤100 ppm

≤50ppm

10

Nonlinear coefficientComprehensive repeatabilityk2/k1(1σ,1 month)

≤±20 μg /g2

≤±30 μg /g2

≤±20 μg /g2

11

Deviation valueTemperature Coefficient

≤±30 μg /℃

≤±50 μg /℃

≤±30 μg /℃

12

Scale factorTemperature Coefficient

≤±50 ppm /℃

≤±100 ppm /℃

≤±50 ppm /℃

13

noise(Sampling resistance is 840Ω)

≤4mv

≤8.4mv

≤4mv

14

Natural frequency

350~800 Hz

350~800 Hz

350~800 Hz

15

bandwidth

800~2500 Hz

800~2500 Hz

800~2500 Hz

16

vibration

5g(20-2000Hz)

5g(20-2000Hz)

5g(20-2000Hz)

17

Shock(0.5ms,1/2sin)

150g

150g

150g

18

Operating temperaturemeasuring range

-40-+85℃

-40-+85℃

-40-+85℃

19

storage temperaturemeasuring range

-60-+120℃

-60-+120℃

-60-+120℃

20

powered

±12~±15V

±12~±15V

±12~±15V

21

Current consumption

£±20mA

£±20mA

£±20mA

22

size

Ф18.2X23mm

Ф18.2X23mm

Ф18.2X23mm

23

weight

£30gram

£30gram

£30gram



Dimension
Quartz Flexure Seismic Accelerometer Amorphous Quartz For Inertial Navigation 0

Introduction
JB3 accelerometer family utilizes unique quartz flexible sensors. The small accelerometer is designed for measurement of Inertial accelerations in aerospace environment,It is the predominant sensor used in china’s commercial and military aircraft strap-down inertial navigation systems.The long-term Repeatability and superior reliability characteristics of the JB3 make it the best value inertial-grade accelerometer available on the market today.
JB3 quartz flexible accelerometer single axis anal...
