MEMS Inertial Measurement Unit Multi-Degree Of Freedom Inertial Measure Unit IMU
Composition and function The 16480C multi-degree-of-freedom inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope, a three-axis accelerometer, a three-axis magnetometer and a pressure sensor for measuring the three-axis angle of the carrier parameters such as rate, acceleration, three-axis magnetic field, air pressure, etc., output data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) according to the communication protocol through SPI or URAT
Structural features and electrical connections

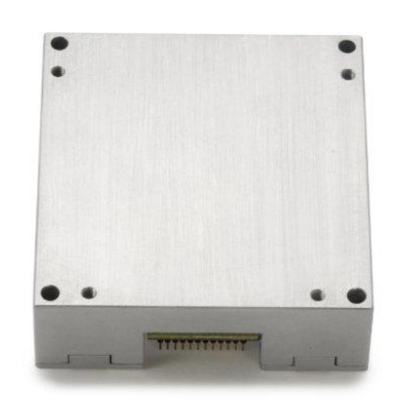

The outline of 16480C multi-degree of freedom inertial measurement unit is shown in Figure 2-1.
