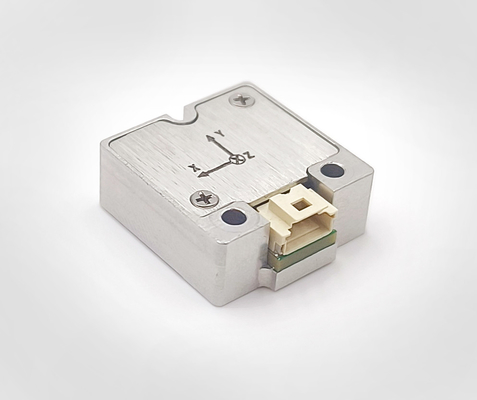

Low Power Consumption 6 axis Mems Inertial Measurement Unit Sensor for UAV / Robot

Name: Low Power Consumption 6 axis Mems Inertial Measurement Unit Sensor for UAV / Robot
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU115
Price: 600 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	IMU115
MOQ:	1
Price:	600$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Gyro Dynamic Measuring Range:

±250/500°/s

Zero-bias Stability (@ Allan Variance):

≤3 °/h

Zero Bias Stability(10s Smooth):

≤6°/h

Bandwidth:

80Hz

Acc Range:

±16g

Acc Zero-bias Stability (Allan Variance ):

0.065mg

Communication Interface:

1-way UART

Voltage:

5.5V

Size:

22.4mm X 22.4mm X 9.5mm

Weight:

16g

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

Mems Inertial Measurement Unit Sensor

6 axis Mems Inertial Measurement Unit

UAV Mems Inertial Measurement Unit

Product Description

Low Power Consumption 6 Axis MEMS Inertial Measurement Unit Sensor for UAV/Robot

Key Specifications

Gyro Dynamic Measuring Range	±250/500°/s
Zero-bias Stability (Allan Variance)	≤3 °/h
Zero Bias Stability (10s Smooth)	≤6°/h
Bandwidth	80Hz
Acceleration Range	±16g
Acceleration Zero-bias Stability (Allan Variance)	0.065mg
Communication Interface	1-way UART
Voltage	5.5V
Size	22.4mm * 22.4mm * 9.5mm
Weight	16g

Product Overview

The IMU115 is a high-performance MEMS-based inertial measurement unit featuring built-in 3-axis gyroscope and 3-axis accelerometer. Designed for reliability and environmental adaptability, it's ideal for UAVs, robotics, intelligent driving, motion communication, mapping, and stabilization platforms.

Key Features

Three-Axis Digital Gyroscope:

±250º/s dynamic measuring range (500°/s optional)
Zero bias stability: 10°/h (GJB, 10s, typical), 6.0°/h (Allan variance)

Three-Axis Digital Accelerometer:

±4g dynamic range (configurable to 16g)
Zero-bias stability: 0.12 mg (GJB, 10s), 0.065 mg (Allan variance)

High Reliability:

MTBF > 20,000 hours
Built-in temperature calibration (-40℃ to +80℃)
Vibration resistant (20-2000Hz, 3g)
Shock resistant (1000g, 0.5ms)

Interface & Power:

1-way UART communication
Low power consumption (≤0.35W)
Operating voltage: 4.5V-5.5V

Technical Specifications

Parameter	Test Conditions	Typical	Max	Unit
Gyroscope	Dynamic Range		250/500	º/s
	Zero Bias Stability (Allan)	3.0		º/h
	Zero Bias (10s avg)	6.0		º/h
	Scale Factor Accuracy	0.2		%
	Scale Factor Nonlinearity	0.02		%FS
	Bandwidth	80		Hz
Accelerometer	Dynamic Range		4/16	g
	Zero Bias Stability (Allan)	0.065		mg
	Zero Bias (10s avg)	0.12		mg
	Scale Factor Accuracy	0.3		%
	Scale Factor Nonlinearity	0.03		%FS
	Bandwidth	80		Hz
Note: Temperature range -40℃ to +80℃ with change rate ≤1℃/min

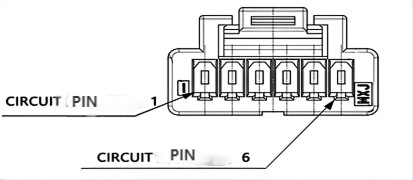

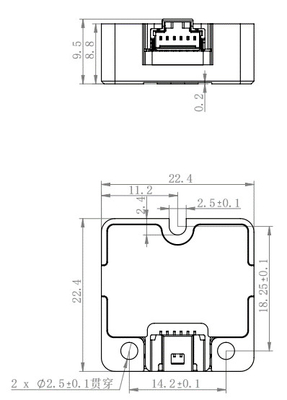

Product Diagram
