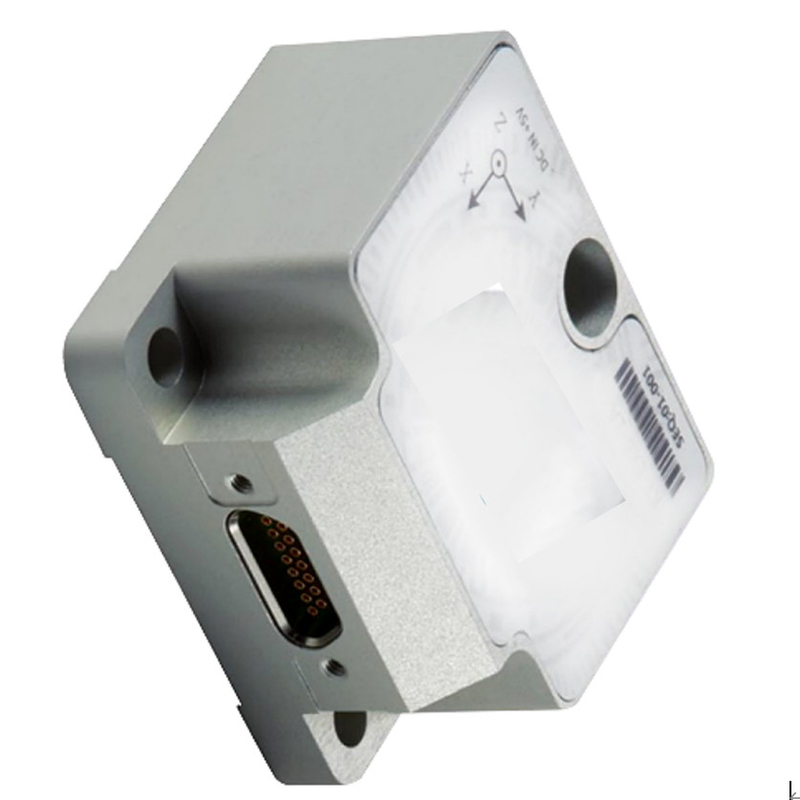

Three / Two Axis Angular Rate IMU Accelerometer Gyro Carrier Replace STIM210

1
MOQ
2000~2500 USD
Price
Three / Two Axis Angular Rate IMU Accelerometer Gyro Carrier Replace STIM210
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Pure IMU
Gyro Measuring Range: ±400°/s
Zero-bias Stability: ≤ 10 °/H
Random Walk: ≤ 0.2 °/√ H
Zero Bias Acceleration Sensitivity: ≤ 1 °/H/G
Cross Coupling: ≤ 0.1%
Bandwidth: ≤250Hz
High Light:

Pure IMU Accelerometer Gyro

,

CE IMU Accelerometer Gyro

,

100ppm IMU Accelerometer Gyro

Basic Infomation
Place of Origin: CHINA
Brand Name: avic
Certification: CE ROHS
Model Number: IMU3
Payment & Shipping Terms
Delivery Time: 10 days
Payment Terms: T/T
Product Description

Micro Gyroscope Assembly measuring the three-axis/two-axis angular rate of a carrier IMU replace STIM210



1.1.1 Gyroscope specifications

  1. Measuring range: ± 400 °/s
  2. Zero-bias stability (@ Allan variance): ≤ 1 °/H
  3. Zero-bias stability (1s smooth, 1σ, room temperature): ≤ 10 °/H
  4. Zero bias error within full temperature range: ≤ 20 °/H
  5. Random walk: ≤ 0.2 °/√ H
  6. Zero-bias repeatability: ≤10°/h
  7. Zero bias acceleration sensitivity: ≤ 1 °/H/G
  8. Resolution: ≤ 0.001 °/s
  9. Scale factor nonlinearity: ≤ 100ppm
  10. Repeatability of scale factor: ≤ 100ppm
  11. Cross coupling: ≤ 0.1%
  12. Bandwidth: ≤250Hz
  13. Weight: (52 ± 5) G

1.1.2 Power supply requirements

  1. Supply voltage: (+ 5 ± 0.5) V (DC);
  2. Power supply current: working current < 0.3A;

1.1.3 Environmental adaptability

  1. Working temperature: (-45 ~ 85) ℃
  2. Storage temperature: (-55 ~ 105) ℃
  3. Vibration: 10 ~ 2000Hz, 6.06g
  4. Impact: 5000 G, 0.1ms

Outline drawing of micro gyroscope

Three / Two Axis Angular Rate IMU Accelerometer Gyro Carrier Replace STIM210 0



Dimension
