Home Products

IMU Accelerometer Gyro

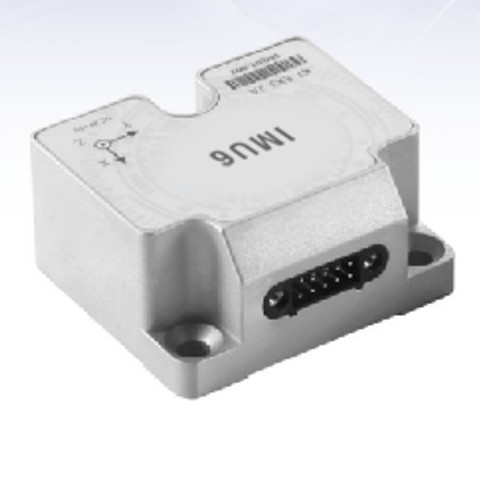

Replace STIM3009 Axis IMU Sensor MEMS With Temp Sensor

Name: Replace STIM3009 Axis IMU Sensor MEMS With Temp Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU6
Price: 4,500.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	IMU6
MOQ:	1
Price:	3000~6000 USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Product Name:

9 Axis MEMS IMU

Gyro Measuring Range:

±400°/s

Zero-bias Stability:

≤ 1 °/H

Random Walk:

≤ 0.2 °/√ H

Resolution:

1 °/H

Scale Factor Nonlinearity:

500 Ppm

Bandwidth::

125Hz

Highlight:

High Accuracy 9 Axis IMU Sensor

9 Axis IMU Sensor

MEMS Inertial Measurement Unit

Product Description

9 axis IMU sensor replace STIM300 MEMS inertial measurement unit with temp sensor

The MEMS inertial measurement unit consists of a three-axis gyroscope, a three-axis acceleration meter, a three-axis inclination angle, a temperature sensor, a signal processing board, a structure and necessary software, and is used for measuring three-axis angular rate, three-axis acceleration and three-axis inclination angle of a carrier. And output that gyro, the loading table and the inclination data aft error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation and the like) through an RS-422 serial port according to an agreed communication protocol.

Gyroscope specifications

Parameter	Unit	IMU6-1	IMU6-1A
Measuring range (customizable)	°/s	±400	±400
Zero bias stability (@ Allan Variance)	°/h	1	0.5
Zero bias stability (1s smooth, 1σ, room temperature)	°/h	10	5
Zero bias stability (10s smooth, 1σ, room temperature)	°/h	5	1
Zero-bias error over full temperature range	°/h	20	10
Random walk	°/√h	0.2	0.1
Zero-bias repeatability	°/h	10	5
Zero bias acceleration sensitivity	°/h/g	1	1
Resolution	°/h	2	1
Scale factor nonlinearity	ppm	500
Scale factor repeatability	ppm	500
Cross coupling	%	0.1
Bandwidth	Hz	125

Add table technical indicators

Parameter	Unit	IMU6-1y-1	IMU6-1y-2
Measuring range (customizable)	g	±10	±30
Zero-bias stability (Allan Variance @ 25 ℃)	mg	0.02	0.05
Zero-bias stability (1s smoothing)	mg	0.1	0.5
Zero-bias stability (10 s smoothing)	mg	0.05	0.2
Zero-bias error over full temperature range	mg	1	3
Random walk	m/s/√h	0.001	0.002
Zero-bias repeatability	mg	0.1	0.5
Scale factor repeatability	ppm	500
Scale factor nonlinearity	ppm	500
Bandwidth	Hz	125

Replace STIM3009 Axis IMU Sensor MEMS With Temp Sensor 0

Dimension
