STIM300 Analog MEMS IMU Sensor , 3 Gyro Inertial Measurement Sensor

1
MOQ
3000~6000 USD
Price
STIM300 Analog MEMS IMU Sensor , 3 Gyro Inertial Measurement Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 9 Axis MEMS IMU
Gyro Measuring Range: ±400°/s
Zero-bias Stability: ≤ 1 °/H
Random Walk: ≤ 0.2 °/√ H
Resolution: 1 °/H
Scale Factor Nonlinearity: 500 Ppm
Bandwidth: 125Hz
High Light:

Analog MEMS IMU Sensor

,

9 Axis MEMS IMU Sensor

,

125Hz Inertial Measurement Sensor

Basic Infomation
Place of Origin: CHINA
Brand Name: avic
Certification: CE ROHS
Model Number: IMU6
Payment & Shipping Terms
Delivery Time: 10 days
Payment Terms: T/T
Product Description

STIM300 Analog MEMS IMU Sensor Low Price Inertial Measurement Sensor 3 Accelerometer, 3 Gyro, Pitch Rolll Heading Temp





Gyroscope specifications



Parameter Unit IMU6-1 IMU6-1A
Measuring range (customizable) °/s ±400 ±400

Zero bias stability

(@ Allan Variance)

°/h 1 0.5

Zero bias stability

(1s smooth, 1σ, room temperature)

°/h 10 5

Zero bias stability

(10s smooth, 1σ, room temperature)

°/h 5 1
Zero-bias error over full temperature range °/h 20 10
Random walk °/√h 0.2 0.1
Zero-bias repeatability °/h 10 5
Zero bias acceleration sensitivity °/h/g 1 1
Resolution °/h 2 1
Scale factor nonlinearity ppm 500
Scale factor repeatability ppm 500
Cross coupling % 0.1
Bandwidth Hz 125





Add table technical indicators

Parameter Unit IMU6-1y-1 IMU6-1y-2
Measuring range (customizable) g ±10 ±30
Zero-bias stability (Allan Variance @ 25 ℃) mg 0.02 0.05
Zero-bias stability (1s smoothing) mg 0.1 0.5
Zero-bias stability (10 s smoothing) mg 0.05 0.2
Zero-bias error over full temperature range mg 1 3
Random walk m/s/√h 0.001 0.002
Zero-bias repeatability mg 0.1 0.5
Scale factor repeatability ppm 500
Scale factor nonlinearity ppm 500
Bandwidth Hz 125

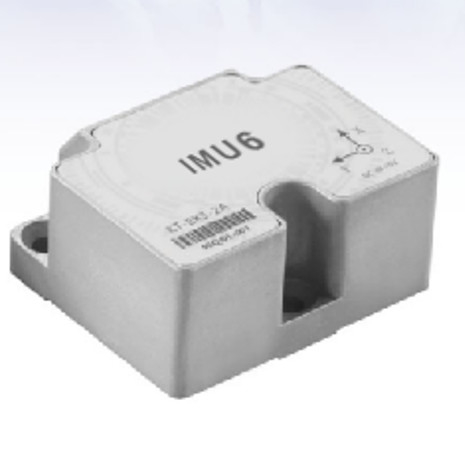

The MEMS inertial measurement unit consists of a three-axis gyroscope, a three-axis acceleration meter, a three-axis inclination angle, a temperature sensor, a signal processing board, a structure and necessary software, and is used for measuring three-axis angular rate, three-axis acceleration and three-axis inclination angle of a carrier. And output that gyro, the loading table and the inclination data aft error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation and the like) through an RS-422 serial port according to an agreed communication protocol.

STIM300 Analog MEMS IMU Sensor , 3 Gyro Inertial Measurement Sensor 0



"IMU6-1y-x" in the drawing is the product code ". According to the product naming rules of the company," y "in IMU6-1y-x can be" A "," B "," C "or no letter to distinguish different performance index requirements, and" X "can be" 1 "," 2 "." 3 "and" 4 "to distinguish different product plus meter ranges. "XX-XXX" is the product number.

IMU6-1y-x IMU is installed through 3 Φ4.4 through holes, and installed with 3 M4 screws (with spring washer and flat washer). When installing the connector, the plug shall be locked with the socket and the cable shall be fixed. In the figureA,BIs the installation datum plane of the inertia group.

It is recommended that the flatness of the mounting surface opposite to the reference surface shall not be greater than 0.01 mm, the verticality shall not be greater than 0.02 mm, and the surface roughness shall not exceed 0.8 μm.



Dimension
