products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
IMU Accelerometer Gyro
Created with Pixso.

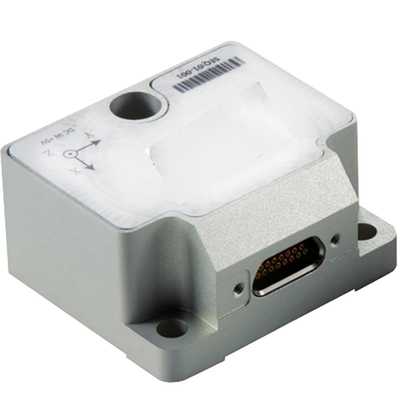

Assembly Combination Micro Gyroscope , Assembly Replace STIM210 Triaxial Gyroscope

Assembly Combination Micro Gyroscope , Assembly Replace STIM210 Triaxial Gyroscope

Assembly Combination Micro Gyroscope , Assembly Replace STIM210 Triaxial Gyroscope

Brand Name: Firepower
Model Number: IMU3
MOQ: 1
Price: 650~740
Payment Terms: T/T,L/C
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE ROHS
Product Name:
MEMS Inertial Measurement Unit
Measuring Range::
± 400 °/s
Zero-bias Stability:
≤ 1 °/H
Random Walk:
0.2 °/√ H
Zero-bias Repeatability:
≤10°/h
Resolution:
≤ 0.001 °/s
Packaging Details:
sponge/box
Supply Ability:
500/month
Highlight:

Triaxial Micro Gyroscope

,

250Hz Triaxial Gyroscope

,

STIM210 Triaxial Gyroscope

Product Description

Micro Gyroscope Assembly Micro Gyroscope Combination Triaxial Gyroscope Assembly Replace STIM210​



The micro gyroscope assembly is composed of a three-axis gyroscope, a temperature sensor, a signal processing board, a structure and necessary software, and is used for measuring the three-axis/two-axis angular rate of a carrier, and outputting three angular rate data subjected to error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation and the like) through an RS-422 serial port according to an agreed communication protocol.



1 Gyroscope specifications

  1. Measuring range: ± 400 °/s
  2. Zero-bias stability (@ Allan variance): ≤ 1 °/H
  3. Zero-bias stability (1s smooth, 1σ, room temperature): ≤ 10 °/H
  4. Zero bias error within full temperature range: ≤ 20 °/H
  5. Random walk: ≤ 0.2 °/√ H
  6. Zero-bias repeatability: ≤10°/h
  7. Zero bias acceleration sensitivity: ≤ 1 °/H/G
  8. Resolution: ≤ 0.001 °/s
  9. Scale factor nonlinearity: ≤ 100ppm
  10. Repeatability of scale factor: ≤ 100ppm
  11. Cross coupling: ≤ 0.1%
  12. Bandwidth: ≤250Hz
  13. Weight: (52 ± 5) G

2 Power supply requirements

  1. Supply voltage: (+ 5 ± 0.5) V (DC);
  2. Power supply current: working current < 0.3A;

3 Environmental adaptability

  1. Working temperature: (-45 ~ 85) ℃
  2. Storage temperature: (-55 ~ 105) ℃
  3. Vibration: 10 ~ 2000Hz, 6.06g
  4. Impact: 5000 G, 0.1ms

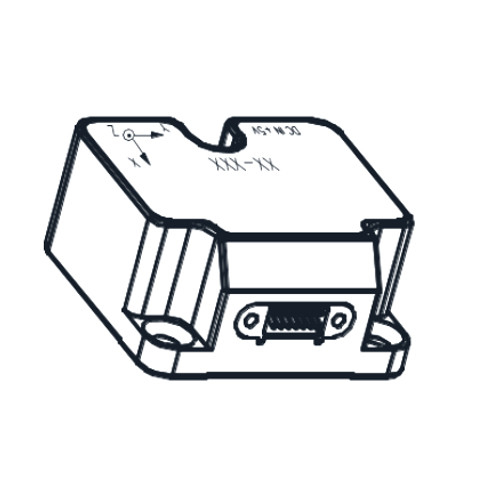

Drawing:
