Aerospace High-Precision Navigation Systems Accelerometer With Temperature Sensor
Product Introduction

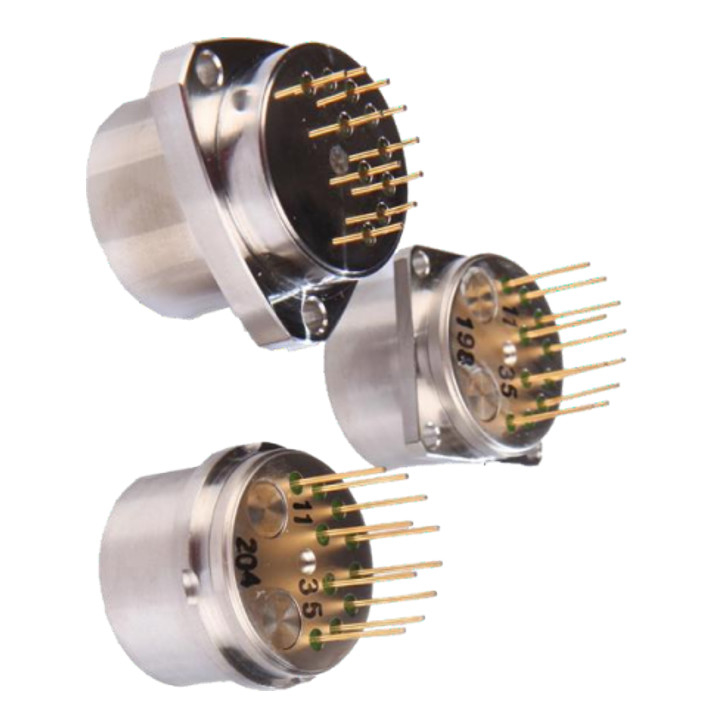

ZT series quartz flexible acceleration sensor is a single-axis torque feedback accelerometer. It detects the external acceleration signal through the detection mass, and then demodulates and amplifies it through the servo circuit. Finally, the output current signal is proportional to the acceleration signal. Products are widely used in aerospace high-precision navigation systems.
Performance Characteristics
| Electrical properties | |
| Operating voltage | ±(12～18)VDC |
| Insulation resistance | 50MΩ,@50VDC |
| Power consumption | ≤480mw@±15VDC |
| Current consumption | ≤16mA@±15VDC |
| Performance | Unit | ||
| ZT-01 | ZT-02 | ||
| Range | ≥±30 | ≥±30 | g |
| Threshold (resolution) | ≤5×10-6g | ≤5×10-6g | g |
| Bias | ≤±3 | ≤±3 | mg |
| Temperature coefficient (-40 ~ 70 ℃) | ≤30 | ≤35 | μg/℃ |
| Monthly composite error (55 ℃, 1σ) | ≤30 | ≤30 | μg |
| Scale factor | 1.25±0.15 | 1.25±0.15 | mA/g |
| Temperature coefficient (-40 ~ 70 ℃) | ≤40 | ≤50 | ppm/℃ |
| Monthly composite error (55 ℃, 1σ) | ≤50 | ≤60 | ppm |
| Second-order nonlinear coefficient | ≤20 | ≤20 | μg /g2 |
| Angle of misalignment | ≤ 0.48 (100 arcseconds) | ≤ 0.48 (100 arcseconds) | mrad |
| Natural frequency | ≤800 | ≤800 | Hz |
| Bandwidth | 800～2500 | 800～2500 | Hz |
| Operating temperature | -45～+80 | -45～+80 | ℃ |
| Quality | ≤80 | ≤80 | Gram |
| Environmental conditions | |
| Random vibration (unpowered) | 8gram, (20～2000) Hz |
| Shock (without power) |
150g,4.5ms,half sine |
