Navigation Level Accelerometer Inertial Vibration Sensor Flexible Accelerometer For INS







Performance Characteristics

Electrical properties
Operating voltage ±(12~18)VDC
Insulation resistance 50MΩ,@50VDC
Power consumption ≤480mw@±15VDC
Current consumption ≤16mA@±15VDC



Performance Unit
  ZT-01 ZT-02
Range ≥±30 ≥±30 g
Threshold (resolution) ≤5×10-6g ≤5×10-6g g
Bias ≤±3 ≤±3 mg
Temperature coefficient (-40 ~ 70 ℃) ≤30 ≤35 μg/℃
Monthly composite error (55 ℃, 1σ) ≤30 ≤30 μg
Scale factor 1.25±0.15 1.25±0.15 mA/g
Temperature coefficient (-40 ~ 70 ℃) ≤40 ≤50 ppm/℃
Monthly composite error (55 ℃, 1σ) ≤50 ≤60 ppm
Second-order nonlinear coefficient ≤20 ≤20 μg /g2
Angle of misalignment ≤ 0.48 (100 arcseconds) ≤ 0.48 (100 arcseconds) mrad
Natural frequency ≤800 ≤800 Hz
Bandwidth 800~2500 800~2500 Hz
Operating temperature -45~+80 -45~+80
Quality ≤80 ≤80 Gram



Environmental conditions
Random vibration (unpowered) 8gram, (20~2000) Hz
Shock (without power)

150g,4.5ms,half sine



Inertial Vibration Sensor Navigation Accelerometer , Flexible Accelerometer For INS 0



Product Introduction

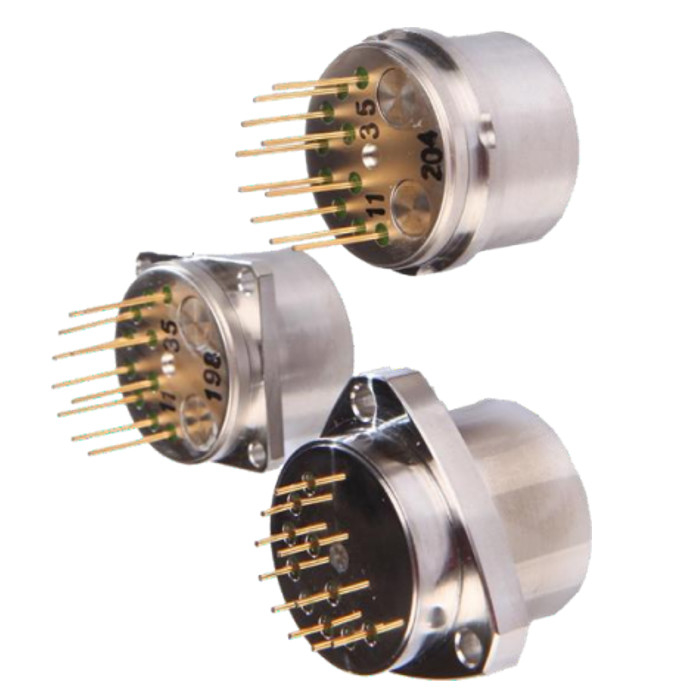

ZT series quartz flexible acceleration sensor is a single-axis torque feedback accelerometer. It detects the external acceleration signal through the detection mass, and then demodulates and amplifies it through the servo circuit. Finally, the output current signal is proportional to the acceleration signal. Products are widely used in aerospace high-precision navigation systems.



Dimension

Inertial Vibration Sensor Navigation Accelerometer , Flexible Accelerometer For INS 1



Installation requirements

  • The flange surface of the sensor is the installation reference surface.

Precautions

  • The sensor is a wearing part. Please handle it with care and do not drop or touch it. The impact and vibration shall not exceed the technical requirements of the product.
  • The sensor shall be packed reliably during transportation, and there must be no less than 20mm of buffer foam around it, and the sensor shall be fixed with foam. When multiple sensors are packed, ensure that they do not collide with each other.
  • Before power-on, check the wiring of each pin, which shall not be connected incorrectly.
  • The product is stored in the original packaging box in a dry and ventilated environment. Handle with care when moving.
  • Pay attention to electrostatic protection.
