Micro Mechanical Technology Inertial Measurement Unit IMU MEMS Based

1
MOQ
negotiable
Price
Micro Mechanical Technology Inertial Measurement Unit IMU MEMS Based
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 10-axis IMU
Measuring Range:: 2000°/s
Voltage: 5v
Dimension: 48mm×44.5mm×20mm
Weight: ≤61g
Working Temp: -40℃~+60℃
High Light:

10 Axis Inertial Measurement Unit

,

Micro Mechanical Inertial Measurement Unit

,

MEMS Based IMU Accelerometer Gyro

Basic Infomation
Place of Origin: CHINA
Brand Name: Avic
Certification: CE ROHS
Model Number: IMU300D
Payment & Shipping Terms
Packaging Details: sponge/box
Payment Terms: T/T, L/C
Supply Ability: 500/month
Product Description

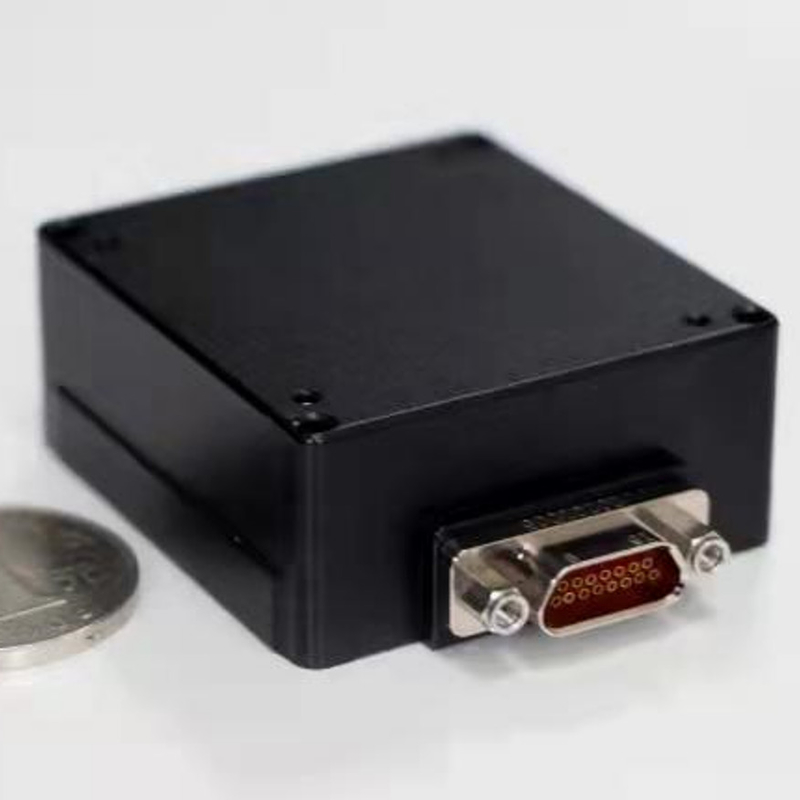

Micro-Mechanical Technology (MEMS) Based Inertial Measurement Unit (IMU)



The IMU300D-IMU is a micro-mechanical technology (MEMS) based inertial Measurement Unit (IMU) with built-in high performance MEMS gyro and MEMS accelerometer, output three angular velocities and three accelerations.



IMU300d-imu has high reliability and strong environmental adaptability. By matching different software, the product can be widely used in intelligent driving, tactical and industrial uAVs, intelligent ammunition, seeker, mobile communication, mapping, stabilization platform and other fields.



Main application areas

▶ Tactical & Industry DRONES

▶ Smart ammo

▶ Seeker, photoelectric pod

▶ Unmanned boat, unmanned vehicle

▶ Automatic driving



Product features

▶ High-precision 10-axis IMU

▶ Large range gyro (2000°/s) available

▶ Suitable for strong vibration environment

▶ High reliability, widely used in target aircraft, tactical uav, bomb

▶ Low delay, within 3ms



Voltage- 5V Parameter-   Test Condition- indicators-
Consumpt ion- < 2W
Dimension- 48mmx44.5mmx20mm<   Dynamic   450- 2000*/s
Weight- < 61g₋   measur ing ranget 4] (Optional)
(J     Zero bias 10s平均(-40 C
        ~+70C) 3*/h-
Environmental indicators stability- Bias range- 土 0. 03*/s
Working Temp.‘ 40C~ +60C Gyro-⁻ Bias in full
Store Temp. e -45C^ +75C   temperature range- Bias- 土 0. 02/s-
Vibration- 20~ 2000Hz, 6. 06g₋   Start repeatability 0.003*/s-
Shock- 1000g, 0.5ms   Vibration affects 0. 002/s/g-
MTBF- >20000h<   zero bias
Continuous     The scale factor is nonl ineare 0. 01%FS
working time- >120h- Resolut ion-   3. 052x10-7*/s/LSB
    Bandwidth-   200Hz-
  ◆Interface featurese   Dynamic measur ing ranget Bias stability 0s average (-40C 16g -200g0ptional-
$2323 200Hz optional   ~+70C,Fixed temp.)√ 0.2mg-
1*R5422- opt ional   Bias- Bias range- 8mg~
    Accelerometer(- Bias in full
      < temperature ranget 2 5mg
      The scale factor is nonl inear- 0. 1%FS-
  bandwidth-   200Hz<
Magnetometer-   Dynamic measur ing range +2.5 gauss-
The sensitivity-   0.1 mgauss/LSB-
