185℃ Woring Temp Quartz Accelerometer Earthquake Resistant Accelerometer With Excellent Repeatability
Product Introduction

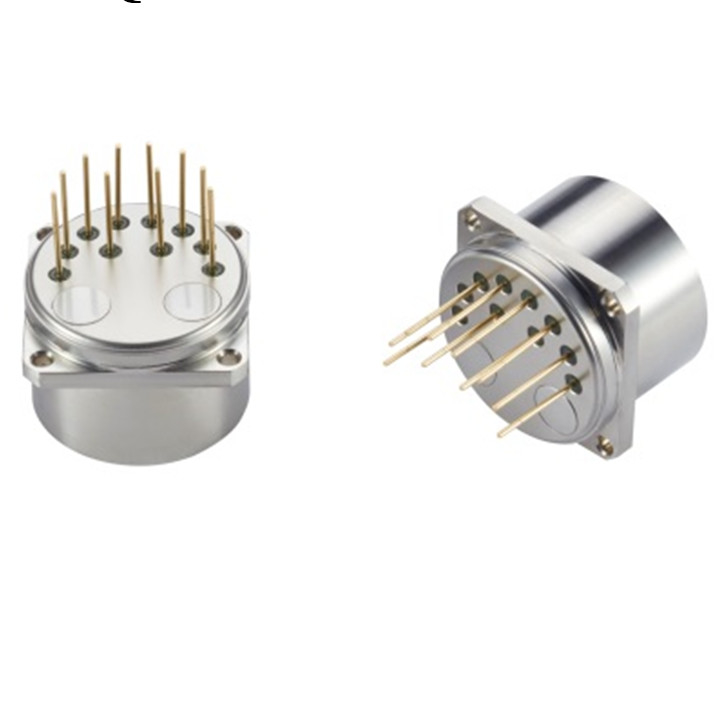

JB4 series quartz flexible accelerometer is a kind of high temperature and earthquake resistant accelerometer, the product has excellent repeatability, startup performance, high temperature and earthquake resistance performance and high reliability, can be used for static test or dynamic test, is also a standard vibration sensor.
The product adopts unique high temperature resistance and seismic design, packaging technology and special circuit. The output current of the product is proportional to the measured acceleration, and the measurement of static and dynamic acceleration is provided. Users can select the appropriate sampling resistance through calculation to achieve high precision output, and the built-in temperature sensor can be used to compensate the offset value and scale factor according to user needs. Reduce the impact of ambient temperature.
Application: bridge, dam, oil well, coal mine dip test, high-speed railway control, ship stability control.
Features
●Low lag
●High resolution
●Widely temperature range
●High accuracy
●Low power
●Excellent overload capacity
●Small volume
●Low cost
●Broad measurement range
Applications
●Drilling and Inclination Measurement
●Aeronautics and Astronautics
●Instruments and Equipment
Performance Characteristics
| parameter | JB4-01 | JB4-02 | JB4-03 | |
| 1 | Range | ±30g | ±30g | ±30g |
| 2 | Bias K0/K1 | ＜10mg | ＜15mg | ＜15mg |
| 3 |
Bias Comprehensive repeatabilityσk0 (1σ,1month) |
＜250µg | ＜250µg | ＜250µg |
| 4 | Temperature Coefficient | ＜50µg/℃ | ＜50µg/℃ | ＜50µg/℃ |
| 5 |
K0& K1Comprehensive repeatability |
＜2mg | ＜2mg | ＜2mg |
| 6 | Scale FactorK1 | 1.2(±0.15) mA/g | ||
| 7 |
Scale factor Comprehensive repeatabilityσk1/k1 (1σ,1month) |
＜80 ppm | ＜200 ppm | ＜200 ppm |
| 8 | Scale factor Temperature Coefficient (Full temp. average) |
＜60ppm |
||
| 9 | Misalignment angle | ＜1mrad | ||
| 10 | Vibration | ＜100µg/g 2rms (50-500Hz) | ||
| 11 | Noise | ＜3000µg-rms (0-10000Hz) | ||
| 12 | Working temperature | -55～96℃ | -55～125℃ | -55～185℃ |
| 13 | Impact | 500 g 0.5ms | ||
| 14 | Sine vibration | 25 g @30-500Hz | 25 g @30-500Hz | |
| 15 | Vibration rectification error |
＜50μg/g²rms(50-500Hz)
|
||
| 16 | Resolution | ＜10µg | ||
| 17 | Bandwidth | ＞300 Hz | ||
| 18 | Insulation resistance | 100MΩ,@50VDC | ||
| 19 | Power consumption | ＜10 mA@15V | ||
| 20 | Current consumption | ＜240 mW@ ±15VDC | ||
| 21 | Input Voltage | ±13 to ±18V | ||
| 20 | Weight | ＜65克 | ||
| 21 | Diameter of installation | Ф25.5mm | Ф25.5mm | Ф25.5mm |
| 22 | Height | ＜21.5mm | ＜21.5mm | ＜21.5mm |
| 23 | Material of shell | 300 series stainless steel | ||
