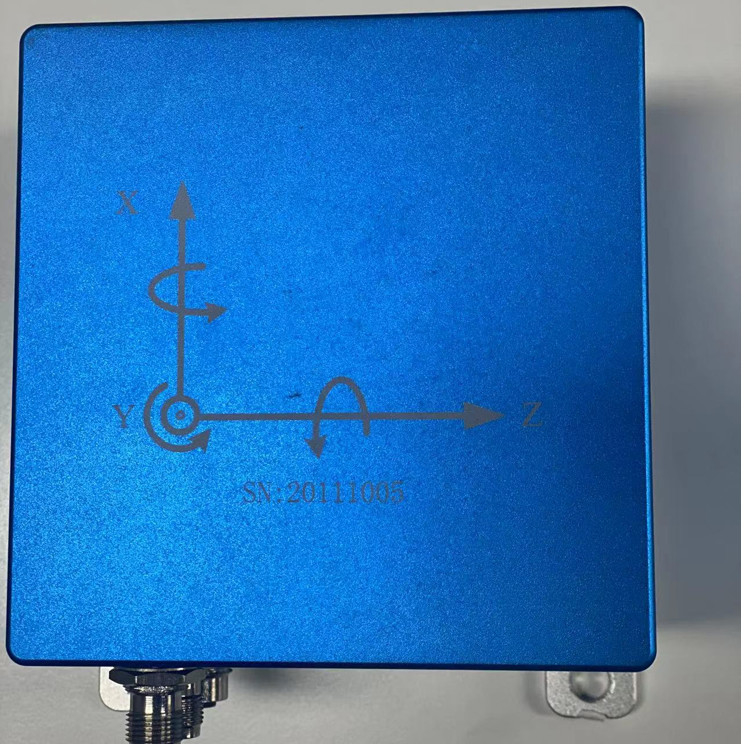

Vehicle Optic Gyro IMU Inertial Measurement Sensor With MEMS Accelerometer

1
MOQ
negotiable
Price
Vehicle Optic Gyro IMU Inertial Measurement Sensor With MEMS Accelerometer
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Pure IMU
Gyro Measuring Range: ±500°/s
Zero-bias Stability: ≤ 0.1 °/H
Bandwidth: 80Hz
Accelerometer Range: ±5g
Zero Bias Stability: < 1mg(1σ)
Power Supply: 18V~36V DC
Working Temp.: -40℃~+85℃
Size: 157mm X 122mm X 81mm
Weight: Less Than 2kg
High Light:

IMU Inertial Measurement Sensor

,

MEMS Accelerometer Inertial Measurement Sensor

,

80Hz IMU Accelerometer Gyro

Basic Infomation
Place of Origin: CHINA
Brand Name: Avic
Certification: CE ROHS
Model Number: IMU70
Payment & Shipping Terms
Packaging Details: paper box
Delivery Time: 10 days
Payment Terms: T/T
Product Description

Cheap Inertial Measure Sensor For Vehicle Optic Gyro IMU With MEMS Accelerometer



Specifications



Gyroscope
Range ±500°/s
Zero bias stability Second-average sampling, 10-second smoothing, < 0.1 °/H (1σ, typical)
Zero-bias repeatability Ten times of power on, < 0.1 °/H (1σ, typical value)
Bandwidth 500Hz
Accelerometer
Range ±5g
Zero bias stability < 1mg(1σ)
Zero-bias repeatability < 1mg(1σ)
Bandwidth 80Hz




Product Introduction

The IMU70A is a high-performance IMU with an optional inertial/satellite integrated navigation system.

Built-in three-axis fiber optic gyroscope, three-axis MEMS accelerometer, optional BD/GPS/GLONASS/tri-mode receiver.

It can output the compensated angular rate, acceleration, temperature and other information.



Performance characteristics:

1. -40 ° C to 60 ° C, full temperature calibration;

2, 1 KHz high sampling rate, 1KHz compensation operation;

3, The software, algorithm, and interface protocol can be highly customized according to the user's usage scenario;

4. It can be externally connected with odometer, DVL, vision and radar for integrated navigation.



Electrical parameters



Operating voltage 18V~36V DC
Power supply ripple <50mV
Maximum power consumption System power consumption at room temperature 11 W, maximum power consumption at high and low temperature 15 W
Operating temperature -40℃~+85℃
Storage temperature -50℃~+100℃






Overall dimensions
Vehicle Optic Gyro IMU Inertial Measurement Sensor With MEMS Accelerometer 0
